Climatic Chamber: dry and adiabatic liquid coolers performance testing
The first laboratory in Europe specializing in performance testing of even the largest and more powerful Dry and Adiabatic Liquid Coolers.
LUVE Climatic Chamber: dry and adiabatic liquid coolers performance testing
Our chamber at a glance
CHAMBER DIMENSIONS
- OVERALL
LENGTH: 19,6 m
WIDTH: 12,3 m
HEIGHT: 8,5 m

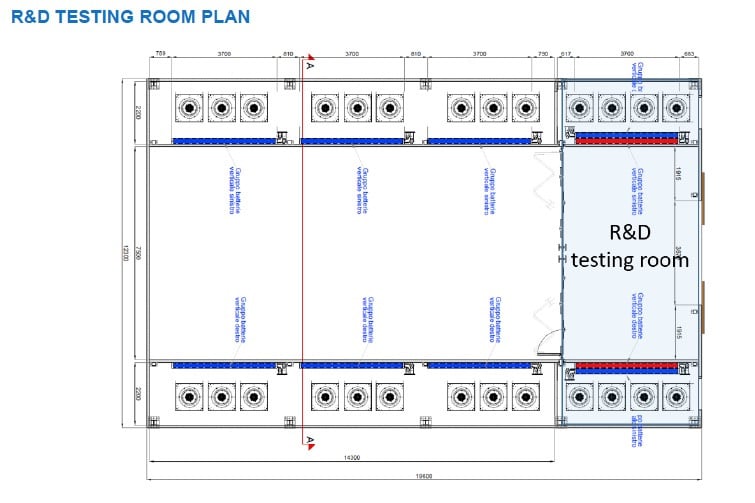

- R&D TESTING ROOM
LENGTH: 4,7 m
WIDTH: 7,5 m
HEIGHT: 6 m

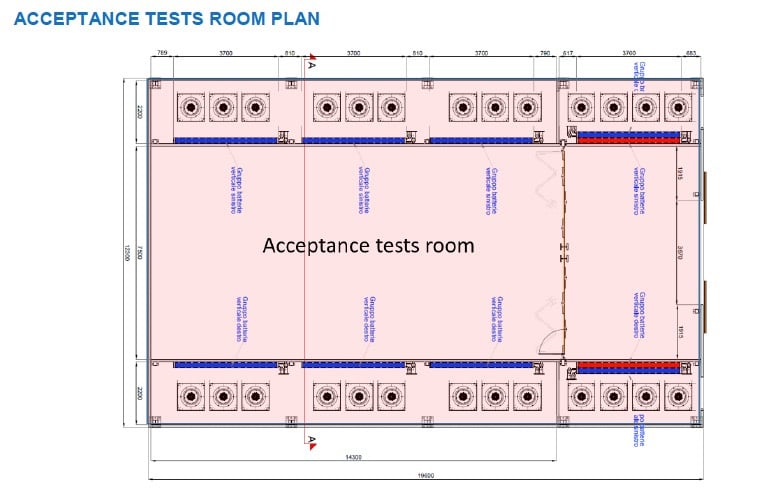

ACCEPTANCE TESTS ROOM
- LENGTH: 19,2 m
- WIDTH: 7,5 m
- HEIGHT: 6 m
MAX SIZE OF TESTABLE UNITS
- LENGTH: 14 m
- WIDTH: 3 m
- HEIGHT: 3,5 m
PERFORMANCE TESTING AND ASSESSMENT
- Thermal exchange capacity according to Eurovent standards (EN 1048)
- Thermal exchange capacity under customer-defined conditions
- Thermal exchange capacity under free cooling conditions
- Thermal exchange capacity under high-temperature conditions
- Electrical power / current consumed
- Liquid side pressure drop
- Sound levels (ISO 9614-1)
OPERATING RANGE (*)
- Air temperature: 0°C to +45°C (**)
- Relative air humidity: 40% to 70%
- Max intake liquid temperature:
- 50°C (with capacity up to 400 m³/hr)
- 100°C (with capacity up to 30 m³/hr)
- Maximum measurable exchange capacity: 2.2 MW

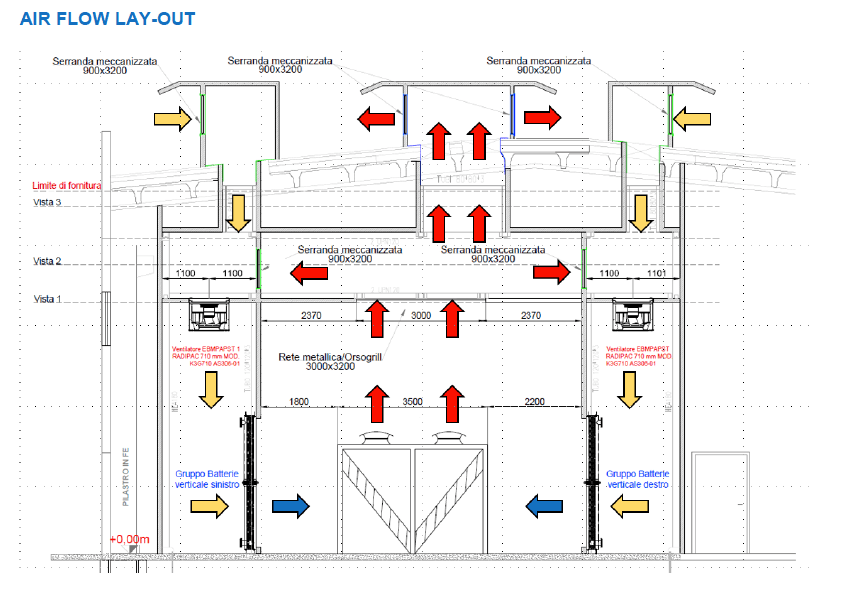

- Maximum air flow processed: 700.000 m³/hr
(*) The test conditions must be validated by the LUVE technical office.
(**) A maximum variation in temperature of 25K on the same test day is tolerated.
Dry and adiabatic liquid cooler products
LUVE dry and adiabatic liquid coolers fulfil customer needs from initial contact to long after installation.

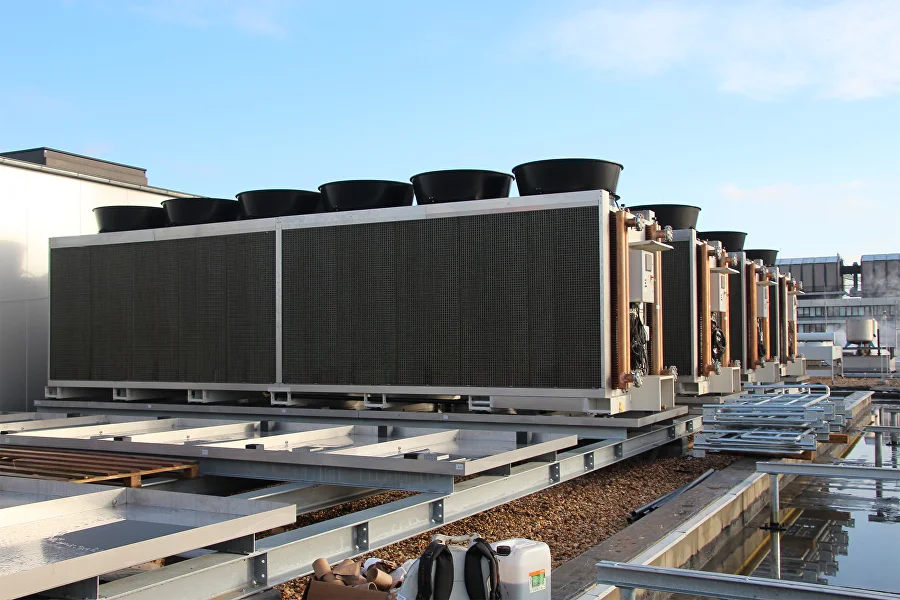

Data Center Cooling, air-conditioning, energy and power generation, process, commercial and industrial cooling.
Our widely respected design and manufacturing teams produce a broad range of energy efficient liquid coolers products series. LUVE customizes systems based on extensive experience with a large breadth of products and processes.
