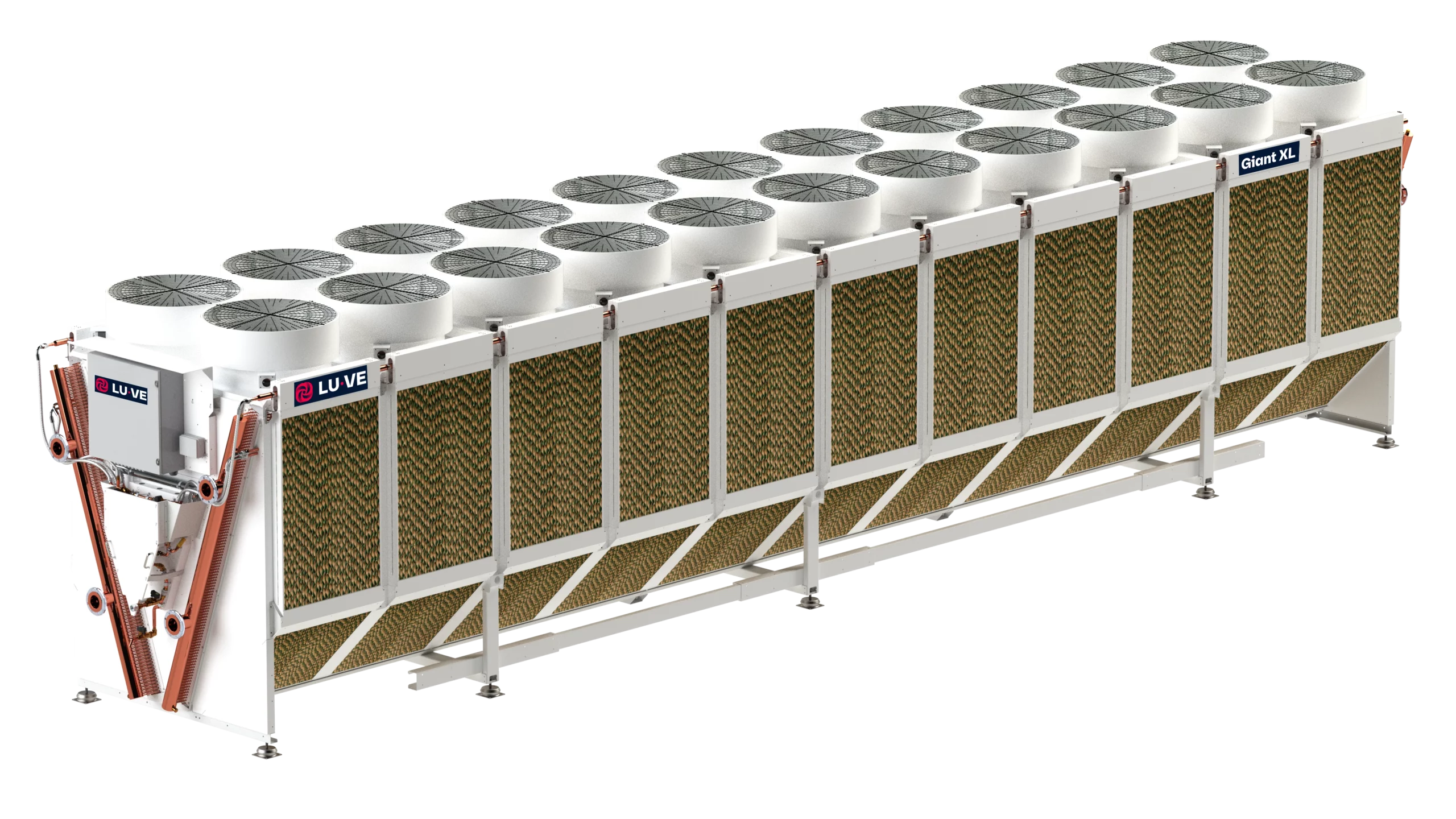

Emeritus® Adiabatic Coolers
EMERITUS® technology combined spray + adiabatic systems
These coolers feature advanced heat exchange technology, reducing environmental impact while ensuring reliable operation. With a focus on sustainability, Emeritus units offer a versatile and durable solution, ideal for a wide range of cooling needs in various industries.
Emeritus® Adiabatic Coolers
EMERITUS® Pioneer of Natural Refrigerants
Intended Use
Compared to traditional solutions, EMERITUS® unites the advantages of evaporative panels with a spray system, managed by a sophisticated control system which increases performance in all climatic conditions.
Its use is ideal in:
- Air conditioning systems
- Industrial processes
- Refrigeration systems (especially in CO2 plant)
The operating principle of EMERITUS®
This technological advance (patent pending) is the result of collaboration with the Polytechnic University of Milan and brings together the benefits of spray systems and adiabatic pre-cooling, all assisted by an advanced control system.
This technology combines the spray function with adiabatic precooling. In this way the system exploits the synergy between two effects: adiabatic humidification and evaporation of water on the coil.
Advanced control software
The new ad hoc software implements advanced functions which can be optimally adapted to all kinds of plant.
Intelligent control system
with innovative, user-friendly functions. In addition to controlling electronic fans (EC), its sophisticated software memorizes the total operating hours of each ramp of the spray circuit and each adiabatic panel. Thanks to “logic of rotation", it selects which system should be activated, optimizing the numbers of hours of spray operation.
Reduced water consumption
Using the EMERITUS® liquid coolers and condensers as alternatives to traditional condensers and evaporative towers brings significant advantages in terms of water consumption.
Through a sophisticated regulation system, combined with EC fans, the function of EMERITUS® is optimized based on operating conditions, with consequent energy savings.
The wide application field and the setting of numerous operating configurations is closely tied to a new sophisticated control software.
The non-evaporated water from the coil is used to supply the adiabatic panels with reduced water consumption.
Features
- Interactive menu, language selection
- Water quality check, active control with pH and electrical conductivity sensors
- Antilock of the fans in the event of extended very low externaltemperature
- Coil cleaning by reversing the rotation direction of the fans
- Coil washing (programmable) by spraying water with motors off
- Winter function to switch off fans to optimize capacity at very lowexternal temperatures
- Anti-Icing: manual, timed, water drainage from remote inlet, based on ambient temperature
- Operating pressure check warning level and alarm with possible system arrest
Double Set Point:
- Fixed set point: the fixed point is set once for all and the system adapts to follow it (Industrial applications)
- Floating set point: varies as a function of the external temperature and allows energy savings thanks to the continuous searching for the best working point (Air conditioning applications)
Two Regolation Modes:
- Proportional: set point coincides with the maximum reachable value
- Incremental neutral zone (PID): the controller adapts the operation of the machine to maintain the set point around the design value.
- Remote monitoring with Modbus RS485 port, Ethernet port, USB, connection to customer BMS
- Silent mode can be set for time slots
- Check of total spray and adiabatic panels operating hours
- Remote Supervising: It is possible to define with the customer a remote connection to LUVE using internet or GPRS system
- Data logger stores the main working parameters for an operation period of up to 10 years
