Giant L

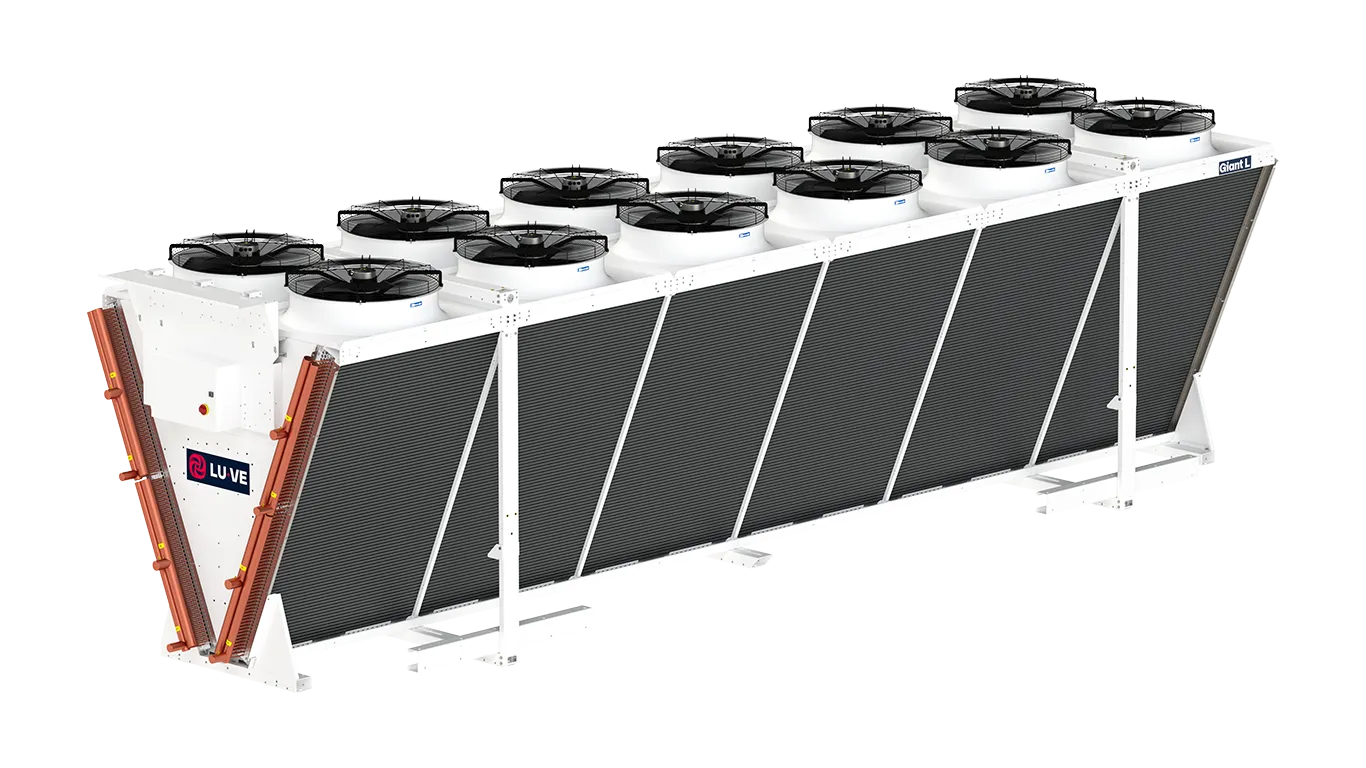

Giant L series is a wide range of heavy duty V-type condensers for air conditioning and refrigeration applications. Giant L condensers provide high capacities at reduced power consumption and a compact footprint.
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
Air Conditioning (HVAC)
Product Overview and Options
Electrical accessories: Switchboard panel
Switchboard panel available on request
Technical features
- Main applications
Giant L series is a wide range of heavy duty V-type condensers for air conditioning and refrigeration applications - Refrigerant
HFC - Capacity range
164 up to 2,340 kW - Design pressure
30 bar - Fan-motors
4 – 18 fans, high efficiency, low power consumption AC/EC motors - Fan diameters
Ø 900 mm
- Refrigerant
- HFC
- Capacity range
- 164 up to 2,340 kW
- Design pressure
- 30 bar
Casing
- Casing, supports and frame are made of corrosion.
- Resistant galvanized steel to tailor the product for industrial enviroments.
Fan-Motors
- High efficiency, low power consumption AC/EC motors are suitable for multiple voltage and frequency power supply, protection class IP 54 according to DIN 40050.
- Integrated thermo contacts provide reliable protection against thermal overload.
- Dual fan row, 4 – 18 fans, Ø 900 mm with different noise levels.
Options
- Fin spacing (3.2 and 4.2 mm)
- Fin material:
- Alupaint fins: Al-Mg alloy coated fins with a special paint treatment to give strong protection and esistance to corrosion.
- Cu fins.
- Coil protection grid
- Fan section division
- Water Spray Evolution system (WSE)
- Anti-vibration pads (TAM)
- Whisperer (WH)
- Electrical accessories:
- Isolating switch (IS)
- Motors wired to a common terminal box
- Basic switchboard with fuse protection (ESB)
- EC switchboard panel with circuit breakers (ECCB)
- EC fan speed control cabinet (ICM)
Design pressure
- Design pressure 30 bar.
- Each heat exchanger is leak tested with dry air and finally supplied with a nitrogen pre-charge.
Coil
- Copper tubing with optimized circuit design.
- High efficient fins-tube pattern boost the heat transfer performance.
- Fitted with aluminium turbo-fins.
- Fin spacing 2.1 mm.
- The unique coil construction provides protection against vibration and thermal expansion, thanks to the patented SafeTube System.
Certifications
- The LU-VE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations. LU-VE participates in the ECP program for HE. Check ongoing validity of certificate:
www.eurovent-certification.com
Download
