Hi-Tech Cabinet Air Coolers
Compact air coolers

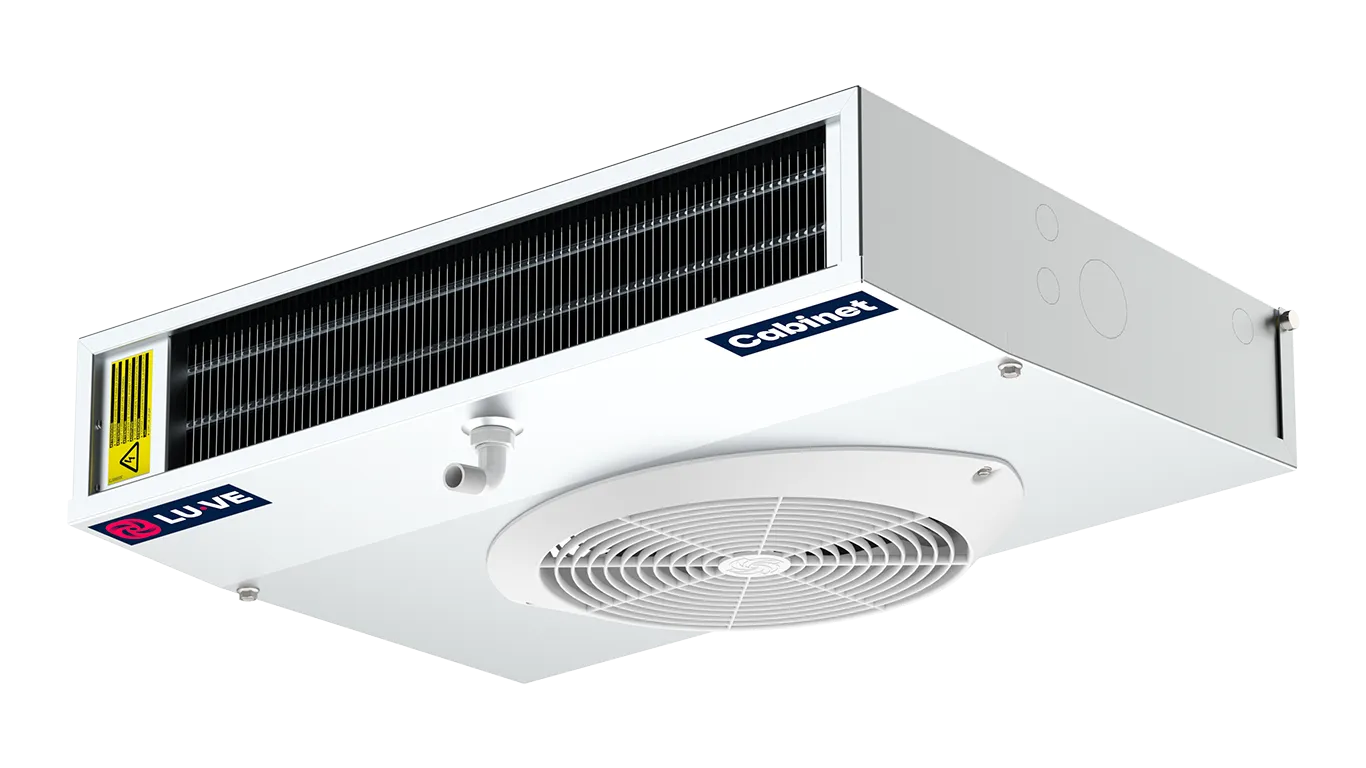

Cabinet MMC
Cabinet MMC
Cabinet MMC is a series of commercial air coolers featuring a super-efficient heat exchanger and a slim silhouette. It is ideal for reach-in cabinets, small cold rooms, refrigerated cabinets, and counters. Cabinet MMC reduces refrigerant usage, enabling new installations and products that respect the environment and comply with the most stringent regulations.
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
Technical features
- Main applications
Cabinet MMC is a commercial air cooler series for general application in small sized cooling and freezing rooms - Refrigerant
HFC - Capacity range
340 up to 1,740 kW - Air quantity
330 up to 1,020 m3/h - Design pressure
24 bar - Fan-motors
1 or 2 fans fitted with AC fan motors - Fan diameters
ø 254 mm
- Refrigerant
- HFC
- Capacity Range
- 340 up to 1,740 kW
- Air quantity
- 330 up to 1,020 m3/h
- Design pressure
- 24 bar
Casing
- Durable aluminium alloy metallic casing.
Fan-Motors
- 1 or 2 fans fitted with AC fan motors Ø 254 mm, blowing through the coil.
- Power supply 230/50/1.
- Protection class IP 44.
Options
- Coil corrosion protection: pre-coated aluminium fins (AP).
- Electric defrost (E).
- The stainless steel defrost elements are connected to dedicated terminal box.
- Standard fin spacing 4.5 mm and 6 mm.
Design pressure
- 24 bar
- Fitted with schräder valve on the suction connection for testing purposes.
- Each heat exchanger is leak tested with dry air and finally supplied with a dry air pre-charge.
Coil
- High-efficiency coil manufactured from internally grooved Cu tubes and aluminium fins.
- Maximized performance thanks to the high capacity TURBOCOIL® heat exchanger manufactured with internally grooved tubes and TURBOFIN® fins.
- Aluminium fins with special turbulator profile to reduce dehumidification and frost formation.
- Standard fin spacings 4.5 and 6 mm.
Certifications
- The LUVE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations.
