Hi-Duty Air Coolers for Banana Ripening Solutions
Banana ripening coolers

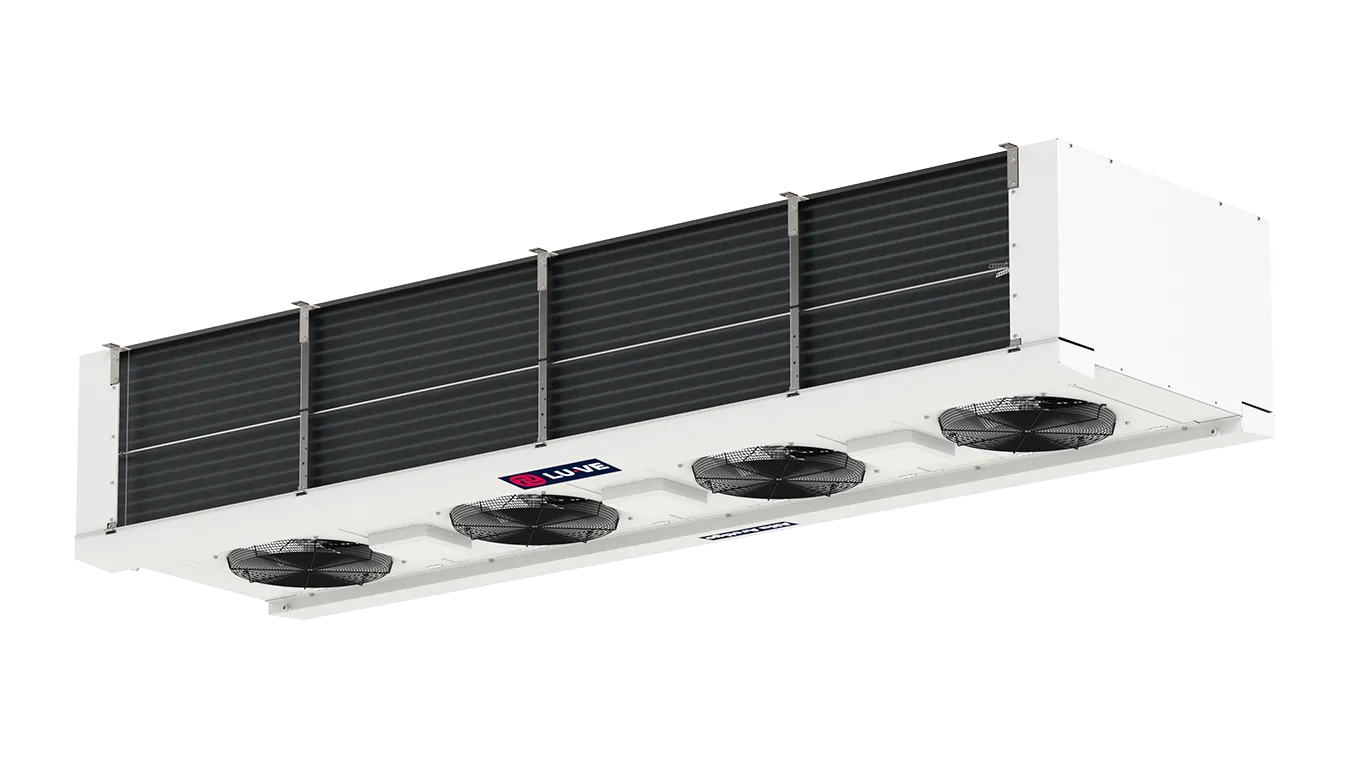

Alfa Arctigo HRCD
Alfa Arctigo HRCD

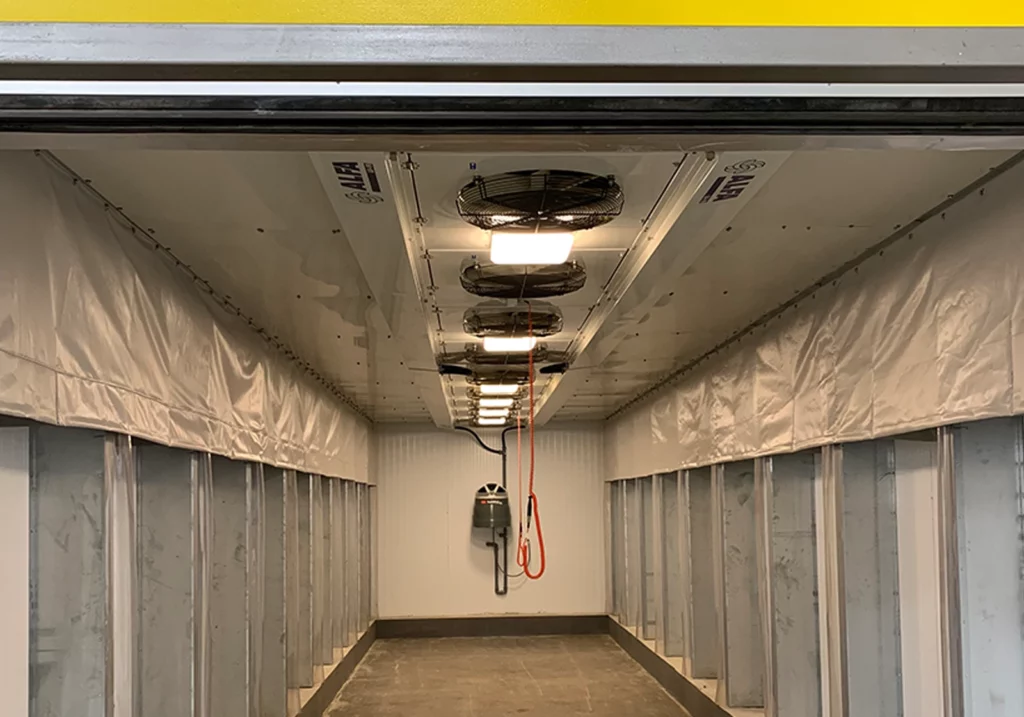

Banana ripening coolers Alfa Arctigo HRCD have been designed for application in airbag & side curtain system banana ripening rooms. The coolers have been optimised for 12.5 °C air-on and 11.5 °C air-off temperature at an evaporating temperature of 7 °C. Alfa Arctigo HRCD air coolers provide for an even temperature distribution throughout the whole ripening room, guaranteeing that the products are ripened as evenly as possible.
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
Technical features
- Main applications
Alfa Arctigo HRCD have been designed for application in airbag & side curtain system banana ripening rooms - Refrigerant
HFO/HFC, Brine, CO2 - Capacities
8 up to 38 kW - Banana rooms
6 to 30 pallets - Evaporating temp.
7 °C (optimised) - Design pressure
10 up to 33 bar - Fan-motors
3-5 Fans 400/50/3 - Fan diameters
ø 508 and 550 mm
- Refrigerant
- HFO/HFC, Brine, CO2
- Capacities
- 8 up to 38 kW
- Banana rooms
- 6 to 30 pallets
- Evaporating temp.
- 7 °C (optimised)
- Design pressure
- 10 up to 33 bar
Casing
- Lighting integrated into the cooler casing
- Heater elements
- Corrosion resistant casing material:
Aluminium/Sendzimir, white epoxy coated (RAL 9002). - Hinged driptrays
- Fitted with schräder valve on the suction connection for testing purposes (excl. brine)
- Sufficient room for fitting the expansion valve inside.
- Suitable for dry expansion or pumped system.
- Stickers indicate fan direction and refrigerant in/out.
- Delivery in mounting position.
Coils are mounted in wooden crate.
Installation can take place with use of a forklift.
Fan-Motors
- 3-5 Fans 400/50/3, Ø 508 and 550 mm.
- Cables are led to the outside of the casing.
- Enclosed design spray-tight fan motors, protection class IP55.
- Motors are equipped with a thermal safety device in the windings, connected to separate terminals in the box.
Design pressure
- Refrigerants
- Max working pressure
- HFO/HFC
- 33 bar
- Brine
- 10 bar
Coil
- Cu ripple fin tubing ø 5/8” (smooth tubing for brine).
- Tube pitch 50 x 50 mm square.
- Corrugated Alu-fins.
