Hi-Duty Air Coolers for Indoor Data Center Applications
Alfa Arctigo LSV
Alfa Arctigo LSV

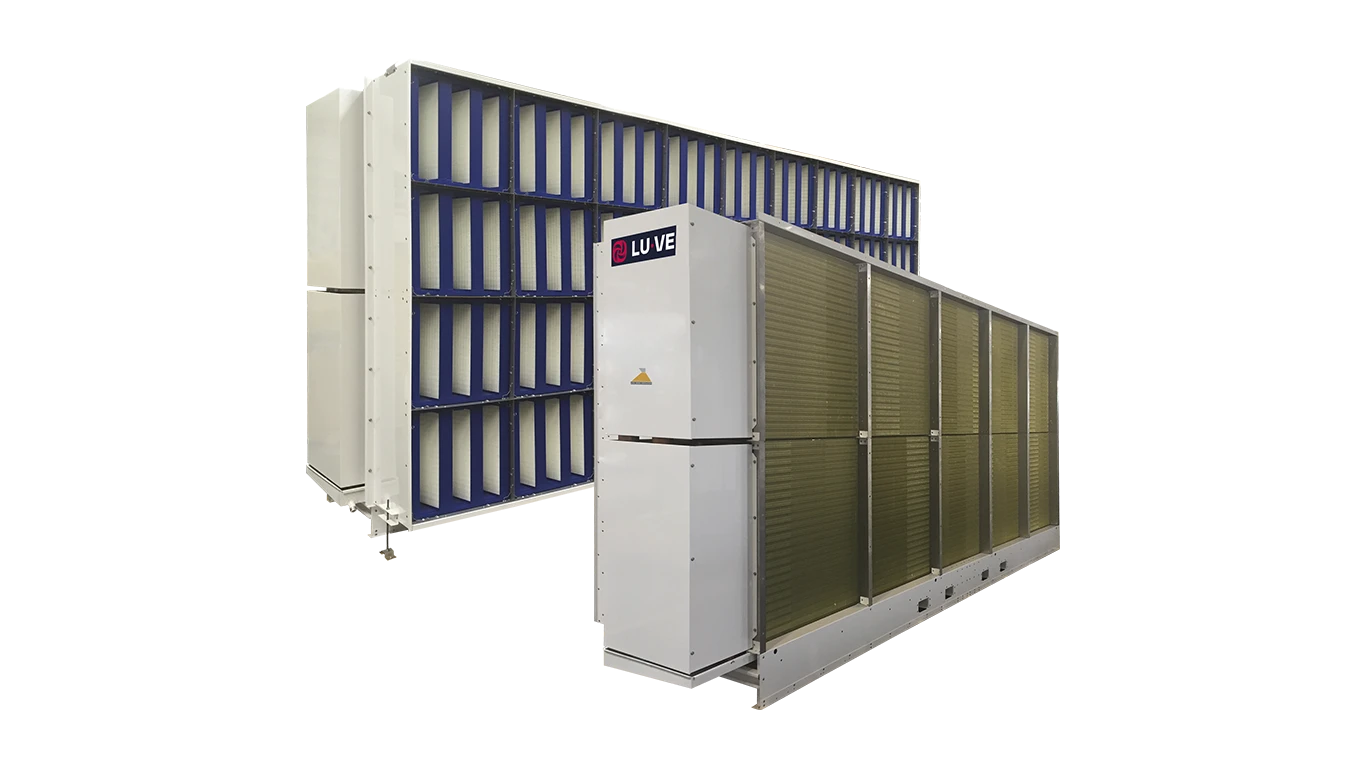

Alfa Arctigo LSV air coolers are heavy duty industrial air coolers specifically designed for cooling down server heat production in data centers that have been built according to the “Low Speed Ventilation” concept. Alfa Arctigo LSV air coolers operate with low fan speed, low air velocities and minimal pressure differences along the route of the air flow, achieved by the building itself being part of the system. For this reason all Alfa Arctigo LSV air coolers have been designed with a very low air-sided pressure drop and a sensible heat factor of 1.0.
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Data center cooling
Technical features
- Main applications
Alfa Arctigo LSV air coolers are heavy duty industrial air coolers specifically designed for cooling down server heat production in data centers - Refrigerant
Water - Capacities
8.5 up to 347 kW**Models with higher/lower capacities available on request
- Air volume
1,950 up to 77,760 m3/h - Design pressure
10 bar - Fan-motors
1 to 10 energy efficient EC fans - Fan diameters
ø 400 up to 710 mm
- Refrigerant
- Water
- Capacities
- 8.5 up to 347 kW*
*Models with higher/lower capacities available on reques
- Air volume
- 1,950 up to 77,760 m3/h
- Design pressure
- 10 bar
Casing
- Corrosion-resistant casing: aluminium/sendzimir, white epoxy coated (RAL 9002).
- Flanged liquid connections on left or right side, fan/filter view (L/R) Connections left = default.
- Delivery in mounting position on a wooden pallet. Lifting and positioning can take place with a forklift using the integrated lifting fork slots.
Fan-Motors
- 1 to 10 energy efficient EC fans, Ø 400 up to 710 mm; blowing through the coil.
- Fans with elevated external pressure.
- Power supply 230/50/1 or 400/50/3.
Options
- Filter frame for mounting of compact air filters.
- Filter classification F7/F9.
- Flanged connections on top (FT).
- Modbus communication for precise fan control.
- Fin-sided safety grid for hot containment applications.
Design pressure
- Design pressure 10 bar.
- Each heat exchanger is leak tested with dry air and finally supplied with a nitrogen
pre-charge.
Coil
- 4 coil block modules
- 4 or 6 tube rows deep
- Corrugated aluminium fins, fin spacing 4 or 4.5 mm
Certifications
- The LU-VE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations. LU-VE participates in the ECP program for HE. Check ongoing validity of certificate*:
www.eurovent-certification.com
