Hi-Tech Flat Industrial CO₂ Gas Cooler
SAV, EAV, XAV
Giant F
Giant F
Giant F stands out for next-level thermal efficiency and advanced engineering in industrial air conditioning and refrigeration with CO₂ refrigerant. Built for demanding commercial and industrial systems, Giant F combines advanced LUVE solutions — like turbo fin technology and our SafeTube System — with versatile installation and proven long-term reliability.
Consultant
Comprehensive technical documentation and online tools enable precise system calculations and confident specification. Easily access online technical data and calculation tools to ease complex decisions.
System Integrator
The extensive range and the online documentation of Flat Giants gas coolers simplify integration into complex refrigeration or air conditioning systems with CO₂ cooling, backed by support from LUVE’s service team for installation assistance.
General Contractor
Enjoy hassle-free installation with LUVE’s plug & play, easy-to-install solutions requiring minimal onsite assembly. Reduce onsite work and simplify project delivery while guaranteeing safe and reliable CO₂ system performance.
Dealers / OEMs
Complete access to comprehensive product documents in LUVE’s Members Area. Manuals and product leaflets. Use the Plair configurator to generate personalized technical selections and quotations branded with your identity.
End User
Rely on proven and certified product performance, benefit from digital spare parts catalogs, commercial support and our comprehensive aftersales portal detailing service options and spare parts availability.
Service Provider
Get easy access to technical documentation in our Members Area. Identify and order spare parts efficiently backed by commercial support to ensure swift repair and maintenance.
Not your profile?
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration

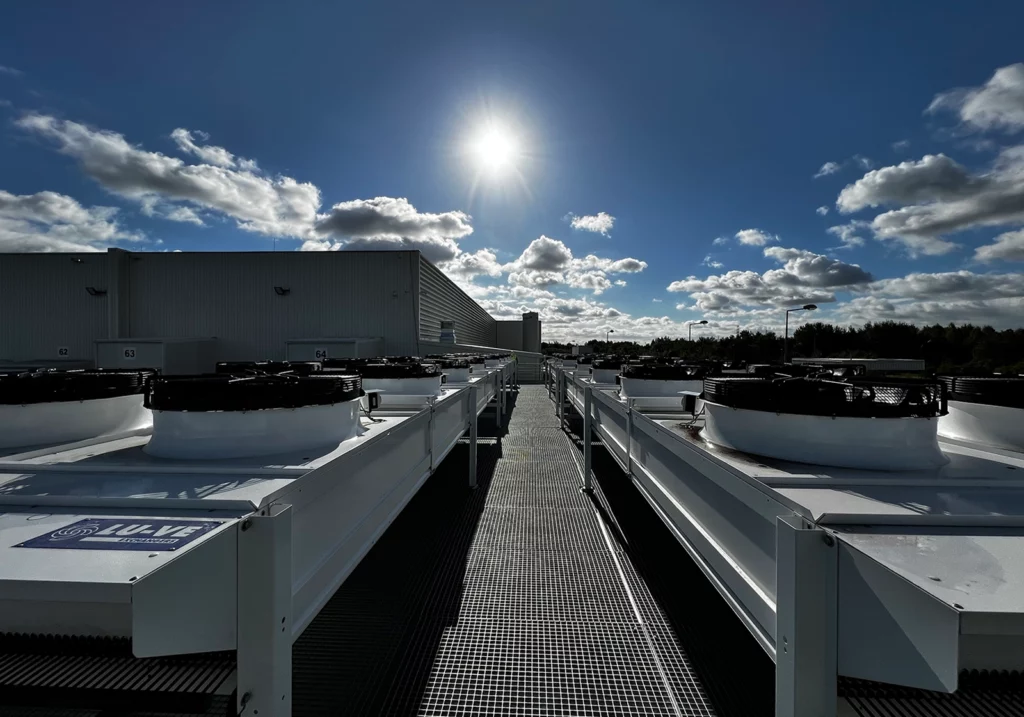

Designed for industrial cold stores, food processing, logistics and distribution centers running on CO₂
- Turbo fin with LUVE exclusive design guarantees maximized performance.
- SafeTube System technologies guarantee resilient operation – unmatched for efficiency during peak and continuous loads even in the hot seasons.
- Lower refrigerant charge means greater sustainability, with full compliance to evolving regulations and GWP targets.
Air Conditioning
Optimized for high-efficiency operation in commercial and public air conditioning where sustainability and reliability are priorities
- Turbo fins provide high heat transfer rates even under highly variable load, ensuring comfort and performance season by season.
- Acoustic and energy solutions surpassing expectations for urban, mixed-use, or noise-restricted environments.
DISCOVER WHISPERER TECHNOLOGY
Technical Highlights
- Flat industrial gas cooler specifically engineered for CO₂ as a single refrigerant.
- Casing and frame in high quality C4-H galvanized steel painted RAL 9003
- Scalable modular design, offering both horizontal and vertical installation.
- Advanced turbo fins delivering higher thermal performance or R Fin for increased mechanical resistance.
- Patented SafeTube System: protects the coil against vibration and thermal shocks, ensuring reliability and long unit service even at the high operating pressures of CO₂ systems.
- High-efficiency EC axial fans in three diameters (800, 910 and 950 mm), with external rotor motors (IP54), selectable for noise, energy or footprint requirements; support for both single and dual row arrangements. 1 to 16 fans.
- Sound-optimized for sensitive/residential sites.
- Eurovent certified for verified performance and reliability.
Download Eurovent certificate or Learn more about Eurovent - Configure your ideal solution quickly with our online selection software: Plair – Start your tailored configuration
Are you looking for a smaller size/capacity? Go to the dedicated Commercial Product
Distinctive Technologies
Turbo fins
Unique to LUVE, driving higher exchanger efficiency and lower operating costs by enhancing turbulence and reducing fouling.
SafeTube System
Patented design safeguarding against mechanical and thermal stress—especially crucial for high-pressure, high-duty CO₂ systems.
High quality C4-H galvanized steel casing
Long life, minimal maintenance.
Advanced selection software — Plair
LUVE Plair selection software allows to fine tune fan motors for maximum efficiency or minimum noise depending on project needs.
Configure with Plair
The free collaborative tool to configure air heat exchangers.
The latest version of our selection software Plair is available online.
Top Advantages
Reduced refrigerant charge supports sustainability and faster return on investment
Turbo fin technology for extraordinary heat transfer
Reliable, quiet and energy efficient
Engineered for modern, high pressure CO₂ systems
Product Overview and Options

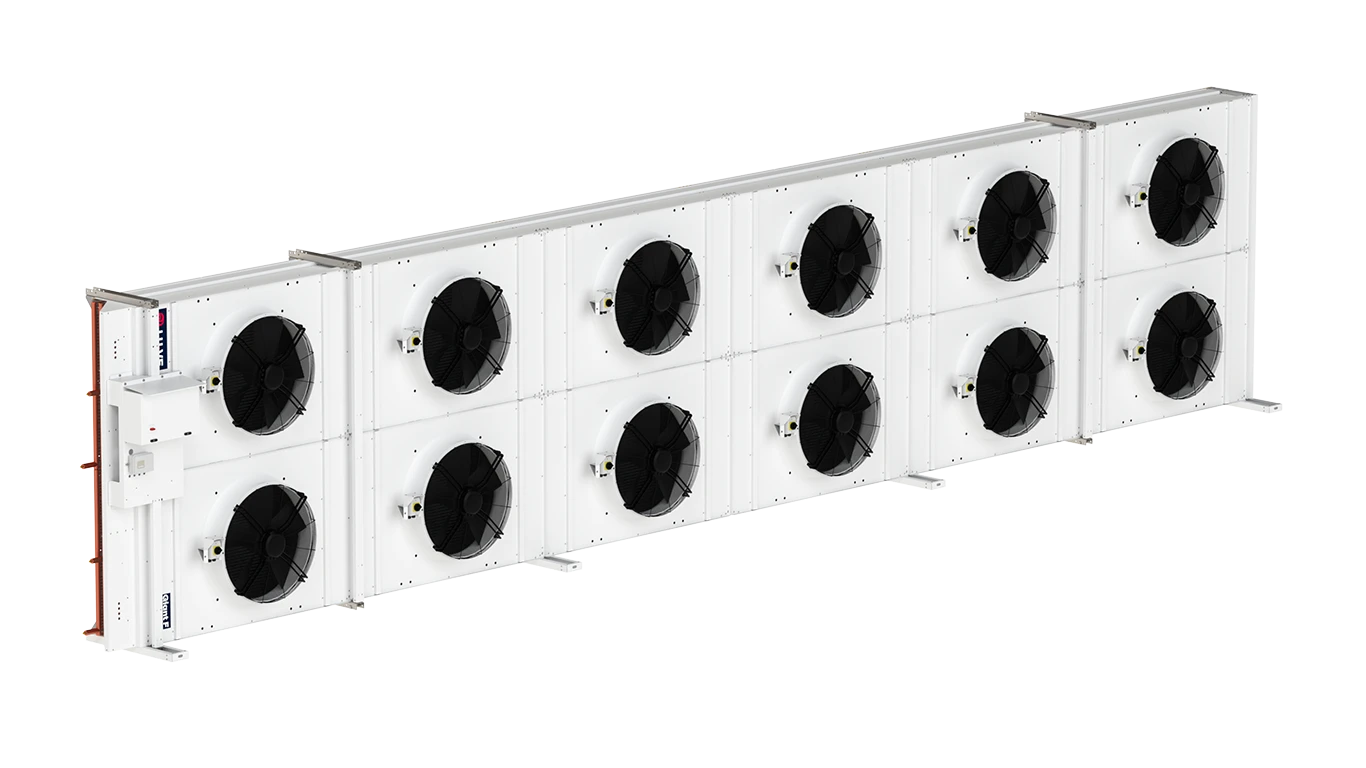

Giant F Vertical view
Giant F + switchboard
Technical features
- Main applications
Giant F is a wide range of industrial gas coolers for air conditioning and refrigeration applications. - Refrigerant
CO₂ - Capacity range
50 up to 1,230 kW - Air flow
10,000 up to 235,000 m³/h - Design pressure
130 bar - Fan-motors
High efficiency EC fan motors and different noise levels - Fan diameters
ø 800, 910 and 950 mm - Fin spacing
Fin spacing 1.8 and 2.1
- Refrigerant
- CO₂
- Capacity Range
- 50 up to 1,230 kW
- Air flow
- 10,000 up to 235,000 m³/h
- Design pressure
- 130 bar
Casing
- Frame construction provides high rigidity for protection against vibration and thermal expansion
- Casing and framework are made of high quality galvanized steel C4-H, painted RAL 9003 (white) to tailor the product for industrial environments.
- Separated fan sections
Fan-Motors
- High efficiency EC fan motors and different noise levels
- Motors with external rotor, protection class IP54 according to DIN 40050
- Power supply 400/50/3. Motors with external rotor, protection class IP54 according to DIN 40050
- Integrated thermo contacts provide reliable protection against thermal overload
- Available in different fan diameters: 800, 910 and 950 mm
Options
- Coil protection
- Aluplus (AP): magnesium-aluminium alloy coated with a special paint treatment to give strong protection and resistance to corrosion.
- Cu fins.
- Spray water kit (KW).
- R-Fin.
- Vibration dampers (VD).
- Whisperer (WH).
- Mounting feet for horizontal installation 1,000 mm (F10).
- Electrical accessories:
- Isolator switch (IS).
- Motors wired to the junction box (CB).
- Basic switchboard, with fuse protection (ESB) and optional Master Controller Regulation
- Electrical cabinet with circuit breakers for each fan (ECCB) and optional Master Controller Regulation
Design pressure
- 130 bar
- Each heat exchanger is leak tested with dry air and finally supplied with a nitrogen pre-charge
Finned Coil
- The coil design is based on small diameter tubes and provides excellent heat transfer at minimal refrigerant charge
- Fitted with aluminium turbo fins as default and R-fin Technology as optional. Available fin spacings 1.8 and 2.1 mm.
- Circuiting design is fully optimized to the thermodynamic properties of CO₂
Packing
- All units are shipped in a crate in vertical position as standard.
- Horizontal transport position as optional.
Certifications
- The LUVE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations. LUVE participates in the ECP program for HE.
Check ongoing validity of certificate: www.eurovent-certification.com
