Hi-Duty Industrial V Shape Gas coolers
Ultimate versatility for heavy duty industrial gas coolers
Alfa V VXD
Alfa V VXD

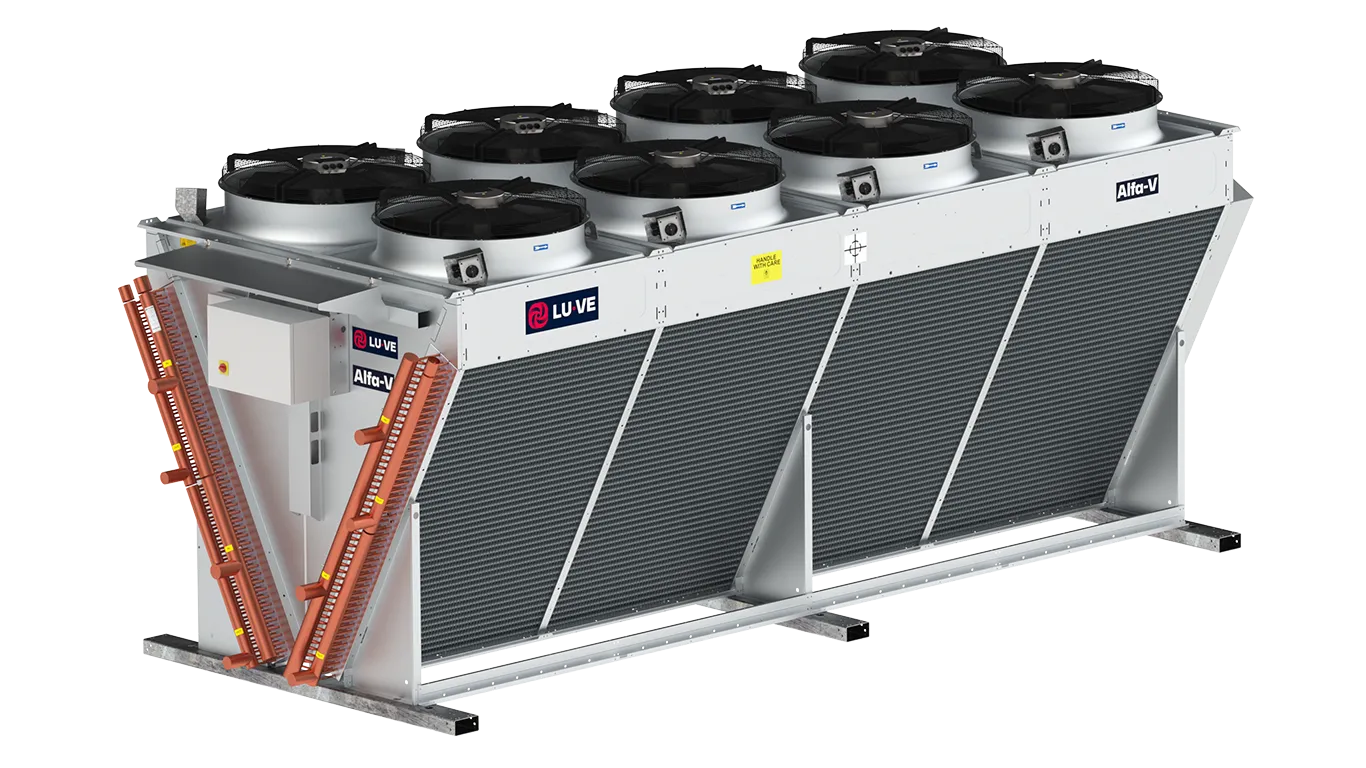

The Alfa V VXD series redefines flexibility for industrial air cooled gas coolers. Designed for CO2 (R744) refrigerant applications in industrial air conditioning and refrigeration. This all-in-one solution delivers premium cooling performance, outstanding durability, and exceptional customization, tailored to your operational needs.
Consultant
Comprehensive technical documentation and online tools enable precise system calculations and confident specification. Easily access online technical data and calculation tools to ease complex decisions.
System Integrator
The modular design and extensive online documentation of Alfa V VXD simplify integration into complex refrigeration or air conditioning systems with CO₂ cooling, backed by support from LUVE’s aftersales team for installation assistance.
General Contractor
Enjoy hassle-free installation with LUVE’s plug & play, easy-to-install solutions requiring minimal onsite assembly. Reduce onsite work and simplify project delivery while guaranteeing safe and reliable CO2 system performance.
Dealers / OEMs
Complete access to comprehensive product documents in LUVE’s Members Area. Manuals, drawings, wirings and product leaflets. Use the Plair configurator to generate personalized technical selections and quotations branded with your identity.
End User
Rely on proven product performance, benefit from digital spare parts catalogs, commercial support and our comprehensive aftersales portal detailing service options and spare parts availability.
Service Provider
Get easy access to technical documentation in our Members Area. Identify and order spare parts efficiently backed by commercial support to ensure swift repair and maintenance.
Not your profile?
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
Designed to meet the highest demands of industrial refrigeration.
- Wide capacity range to meet any project size.
- Robust, corrosion-resistant construction.
- Easy-to-clean industrial coil.
- Supports sustainability goals through use of natural refrigerant CO₂ (R744)
Air Conditioning (HVAC)
Designed for commercial and industrial air conditioning systems employing CO2 refrigerant.
- Excellent capacity-to-footprint ratio.
- Energy efficient.
- Ultra-quiet operation through advanced aerodynamic design.
- Flexible installation: rooftop, commercial or residential area.
Technical Highlights
- Heavy duty V-shape construction for durable performance in diverse industrial environments.
- Cooling capacity: 160 to 1,000 kW (Tair = 35 °C, CO2 at 90 bar, gas temperature in/out = 120/38° C
- Innovative coil design: cross-fin copper tubes, with two different aluminum fins type. Turbo fins for maximized performance or exclusive industrial-grade R-Fin for enhanced durability and easier cleaning.
discover the technology - Casing and frame in galvanized steel with standard corrosion resistance class C4-H.
- AC/EC fan motors in three diameters (800/910/1000 mm), five noise levels, ErP compliant, with broad multi-voltage compatibility.
- Modular range: configure precisely to your cooling requirements for complete operational flexibility.
- Extensive options portfolio for tailored solutions.
- Online configuration: Plair – Start your tailored configuration
Configure with Plair
The free collaborative tool to configure air heat exchangers.
The latest version of our selection software Plair is available online.
Distinctive Technologies
Industrial grade R-Fin
Corrosion resistance
Corrosion resistance: special paintings for maximum protection for offshore, marine, and industrial atmospheres available on request.
Plug&Play
Plug&Play: factory pre-assembled for rapid commissioning.
Mechanical design
Mechanical design: suitable for highly demanding site conditions (wind, snow, earthquake) and on request, extreme or custom conditions.
Top Advantages
Reduced energy consumption and operating costs.
Market-leading noise levels and compact size.
Advanced customization options.
Available with easy-to-clean industrial coil.
Technical features
- Main applications
Alfa V CO2 Gas Coolers - Refrigerant
CO2 - Capacity range
160 up to 1000 kW
* air temperature = 35 °C, CO2 at 90 bar, gas temperature in/out = 120/38 °C. - Design pressure
120 bar - Fan-motors
ErP compliant fan AC & EC motors and different noise levels - Fan diameters
ø 800, 910 and 1000 mm - Fin spacing
Standard fin spacing 2.1, 2.5 and 3.0 mm
- Refrigerant
- CO2
- Capacity Range*
- 160 up to 1000 kW
- Design pressure
- 120 bar
* air temperature = 35 °C, CO2 at 90 bar, gas temperature in/out = 120/38 °C.
Casing
- Frame construction provides high rigidity for protection against vibration and thermal expansion.
- Casing, supports and frame made of corrosion resistant galvanized steel (class C4-H).
- Separated fan sections and removable fan rings.
Fan-Motors
- ErP compliant fan AC & EC motors and different noise levels.
- Motors with external rotor, protection class IP54 according to DIN 40050.
- AC power supplies 400/50/3, 400/60/3 and 460/60/3 with integrated thermo contacts to provide reliable protection against thermal overload.
- EC power supply 380-480/50-60/3.
- Available in different fan diameters: 800, 910 and 1000 mm.
Options
- Connection box (CB)
- Connection box with single switch for all fans (CB1) Shut up sock (S) – for ISD
- Sock Ring (SR) – for ISD
- Electric defrost systems:
- Electric defrost in driptray + hot gas in coil (E1)
- Electric defrost heavy (E2)
- Electric defrost light (E4)
- Hotgas defrost systems:
- Hotgas defrost (HG)
- Hotgas defrost, connected (HGC)
- Hot glycol ciruit defrost (HW) – copper tubes
- Stainless steel casing and coil frame (SSC)
Standard materials for underplate (aluminium) and fan grid (black painted steel)
- Alternative fin materials (SWR / EP)
- Dual fin spacing (DF) – on request
- On/off switch (SW)
- Motorized defrost damper – on request for ISD
- Top connections (AVA) – for brine models
- Flanges PN16 in AISI 304 for copper or stainless steel tubes models (F) – for brine models. Supplied loose.
- Fan casing 90° / 45° (FC1 / FC2) – for ISD
- Suction hood 90° / 45° (H1 / H2) – for ISD
- Insulated suction hood 90° / 45° (IH1 / IH2) – for ISD
- Hinged fan (HF)
- Insulated drip tray (I2)
- Mounting feet (MF)
- Fan ring heater (FRH)
- Streamer (ST) – for ISD
Design pressure
- 33 bar.
- Each heat exchanger is leak tested with dry air and finally supplied with a
nitrogen pre-charge.
Finned Coil
- An innovative coil design provides excellent heat transfer at minimal refrigerant charge.
- Condensers are fitted with cross-fin copper (ACV).
- Fins in aluminium or sea water resistant AlMg, plain fin design for easy cleaning and long-lasting performance.
- Separate connections provide the opportunity for independent operation of both condenser coils.
- Standard fin spacing 2.0, 2.1, 2.3, 2.5 and 3.0 mm
Certifications
- The LUVE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations.
Download
| Alfa V VXD | Leaflet | Download | |
| Vibration dampers | Leaflet | ENGLISH | Download |
| Air cooled condensers and gas Coolers | Product manual | Download | |
| Air intake filter | Accessories | ENGLISH | Download |
| Alfa V 1 and 2 m legs mounting kit | Accessories | ENGLISH | Download |
| Alfa V ACV/ANV/VXD | Instruction manual | Download | |
| ICM2 Regulator, Complete Instruction (FULL) | Accessories | ENGLISH | Download |
| ICM2 Regulator, Quick start Guide | Accessories | ENGLISH | Download |
| Ptec, Master Controller | Accessories | Download | |
| Ptec2, Mater Controller | Accessories | Download | |
| Spray Water kit (KW) for Alfa V | Accessories | ENGLISH | Download |
| Spray Water System (SWS) for Alfa V | Accessories | Download | |
| Alfa V VXD | Picture | Image 1 | Download |
