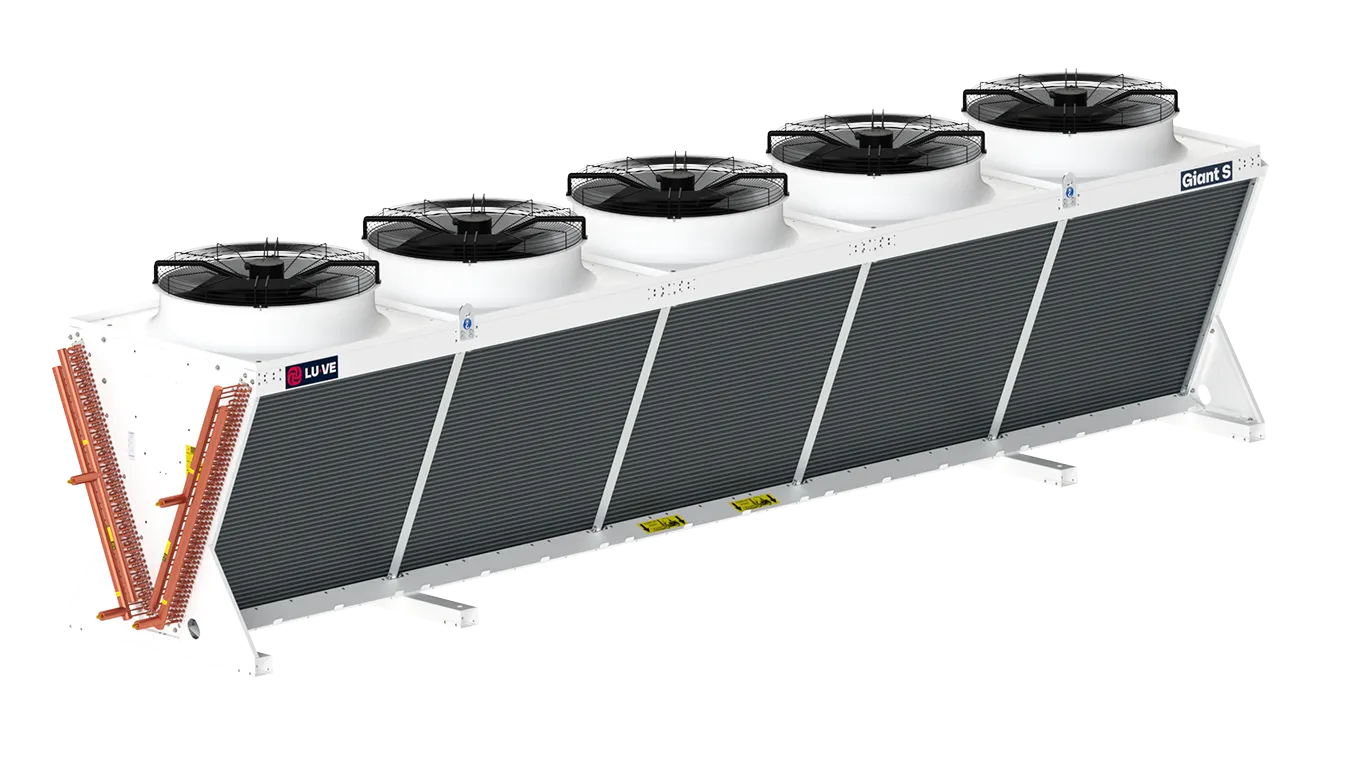

Giant S UXV-TS
CO2 gas coolers replace traditional air cooled condensers in refrigerating systems that have been designed for the use of CO2 as a single refrigerant. Such installations are getting more and more widely used in f.i. commercial supermarket applications. Giant S UXV-TS has been specifically designed for commercial refrigeration and air conditioning. The V-angle with its exceptional guiding optimizes airflow and low coil resistance reduces energy consumption of the fan motors. Its main purpose is to reject small to medium heat loads in a modest footprint.
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
Air Conditioning (HVAC)
Configure with Plair
The free collaborative tool to configure air heat exchangers.
The latest version of our selection software Plair is available online.
Technical features
- Main applications
Giant S has been specifically designed for commercial refrigeration and air conditioning. - Refrigerant
HFC - Capacity range
up to 600 kW - Design pressure
30 bar - Fan-motors
High efficiency, low power consumption EC motors - Fan diameters
Ø 910 and 960 mm
- Refrigerant
- HFC
- Capacity range
- up to 600 kW
- Design pressure
- 30 bar
Casing
- The body and frame are made of high quality C4-H galvanised steel, powder coated RAL 9003 (white) to make the product suitable for industrial environments.
- The structure is designed to ensure rigidity, thermal expansion and readiness to change the product from dry to wet working mode thanks to the optional water Adiabatic System PADs kit, which can be fully factory fitted or supplied as a retrofit.
Fan-Motors
- High efficiency, low power consumption EC motors are suitable for multiple voltage and frequency power supply and optimized for different noise levels.
- Fan diameters: Ø 910 and 960 mm
Options
- Aluplus (AP): Aluminum-Magnesium alloy coated with a special paint treatment to provide protection and corrosion resistance
- Cu fins
- Vibration dampers (VD)
- Coil protection grid (GR)
- Whisperer (WH)
- Special Radial fan motors (RAD)
- Electrical accessories:
- Isolator switch (IS)
- Basic switchboard, with fuse protection (ESB)
- Switchboard with automatic switch for each fan (ECCB)
- Switchboard with master controller regulation (ECCB+MC)
- Adiabatic System (AS) – available also as retrofit kit
Design pressure
- Max operating pressure 30 bar.
Coil
- Coil configuration optimized according to fluid flow.
- The extraordinarily efficient performance of the heat exchanger is due to the optimum combination of special profile aluminium fins and internal grooved copper tubes
Certifications
- The LUVE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations. LUVE participates in the ECP program for HE.
