Hi-Duty Industrial V Shape Liquid Coolers
Heavy industrial applications, even in the most severe environments

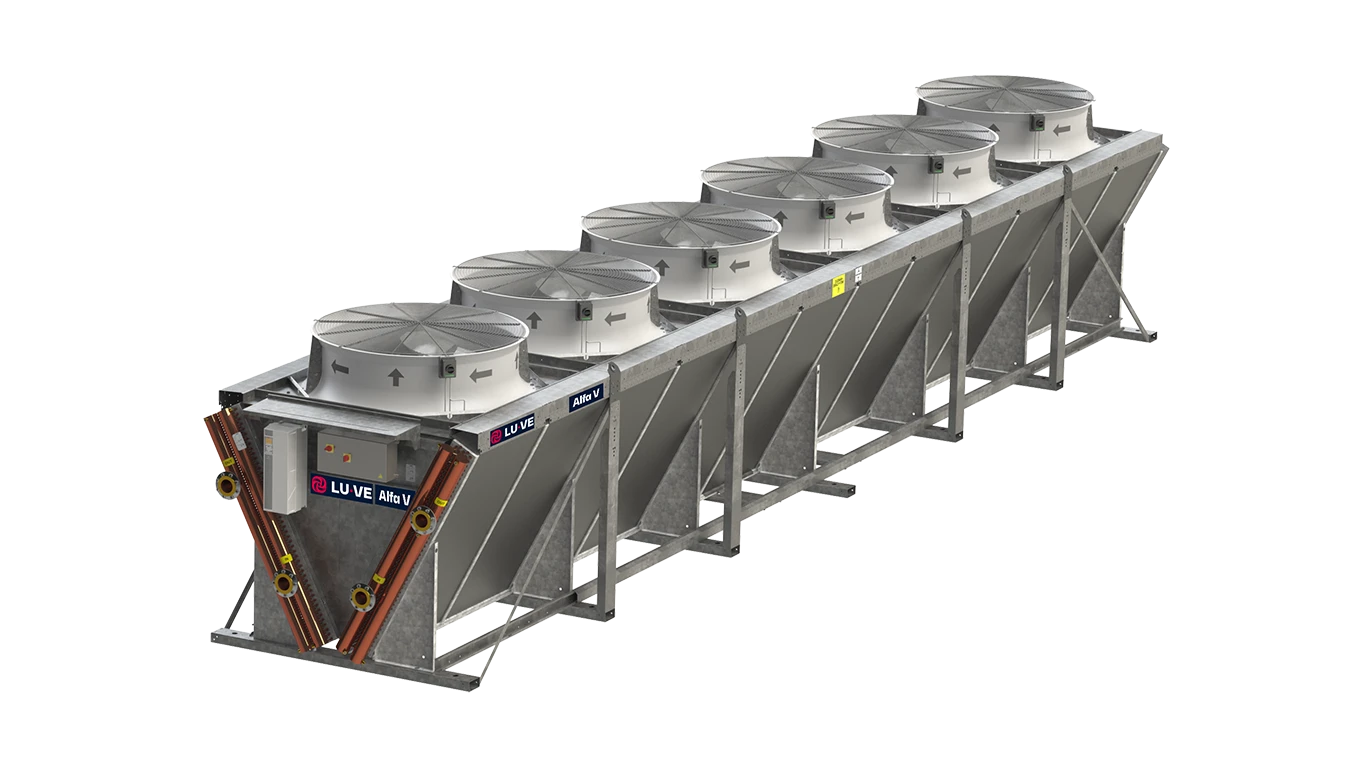

Alfa V VLD
Alfa V VLD

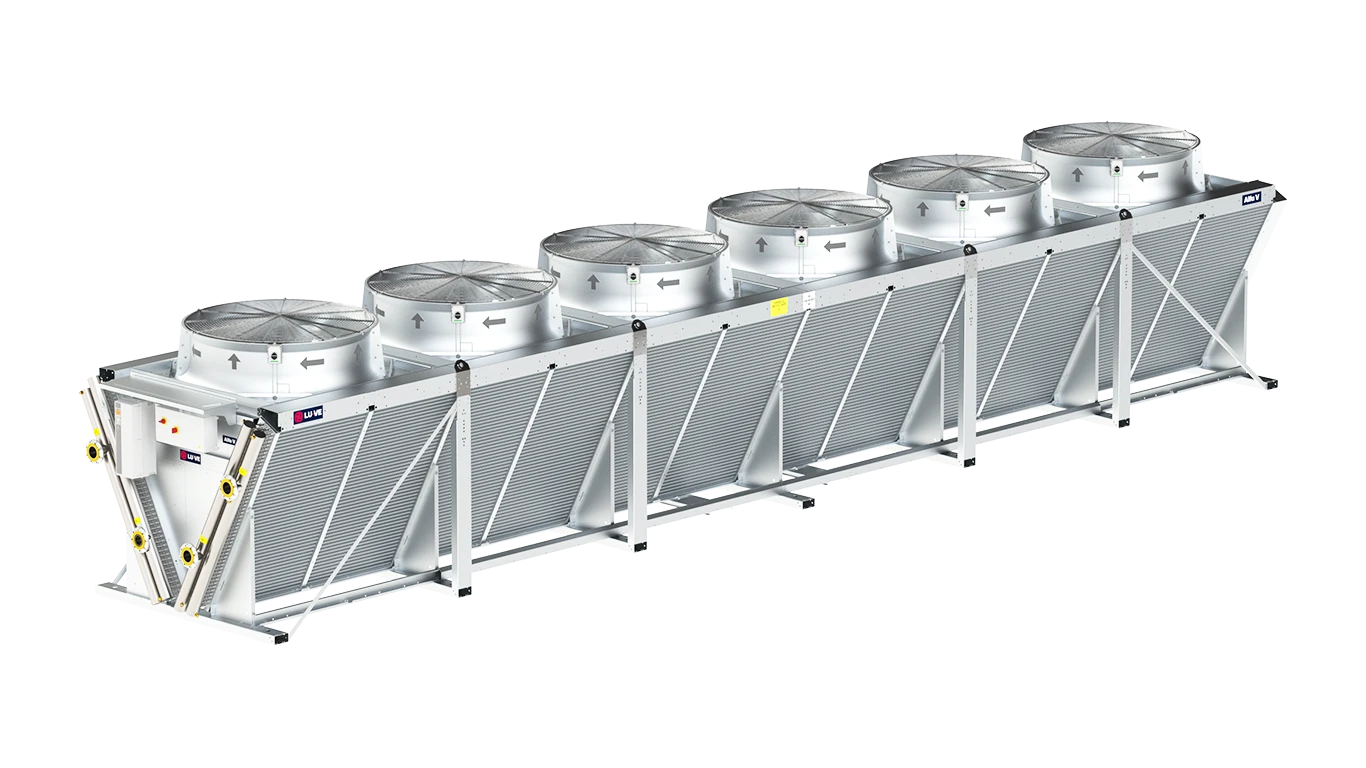

Alfa V VLD air cooled liquid coolers have been designed for closed circuit cooling of various process liquids in heavy industrial applications, even in the most severe environments.
Applications include gas or diesel engines and turbine cooling in power plants, electrical distribution in HVDC cooling systems, process cooling from food, plastic industry, steel mill industry, etc.
Alfa V VLD dry coolers provides high capacity in compact footprint at reduced power consumption. Thanks to the modular design, the cooling capacity can reach several MW.
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
Data Center Cooling
Energy and Power Generation
Industrial Cooling
HVAC
Technical features
- Main applications
Alfa-V VLD air cooled liquid coolers have been designed for closed circuit cooling of various process liquids in heavy industrial applications - Refrigerant
Water, EN1048 - Capacities
100 up to 2,000 kW - Design pressure
10 up to 15 bar - Fan-motors
Squirrel-cage electric motors available for various power supplies (std 400/3/50, 460/3/60) - Fan diameters
ø 1.5 m
- Refrigerant
- Water, EN1048
- Capacities
- 100 up to 2,000 kW
- Design pressure
- 10 up to 15 bar
Casing
- Construction provides high rigidity to withstand vibrations, thermal expansion and rough environmental conditions.
- Casing, supports and frame made of corrosion resistant hotdip galvanized steel plates, class C4-H as basic level.
- Alfa LU-VE design fan-collars made in composite material to optimize air distribution increasing performance and reducing energy consumption and noise level.
- Separated fan sections.
Fan-Motors
- Squirrel-cage electric motors, designed exploiting decades of experience in outdoor use.
- Built to IEC standard 6, 8, 10 or 12 poles, provided with: condensing water outlets, shaft seals and H-class insulation.
- Construction optimized for use on air heat exchangers.
- Motors pre-wired to lockable service switches placed outside the fan-collar.
- Available for various power supplies (std 400/3/50, 460/3/60).
- Impellers ø 1.5 m are made in high efficiency aluminium wing-blade profile for reduced power consumption and noise emissions.
Options
- Fin spacing: 2 mm to 3.5 mm
- Fins:
- Aluminium Magnesium alloy (SWR)
- Aluminium pre-coated (EP)
- Aluminium spray-coated (FC)
- R-fin™ technology
- Removable header box (ASME design) – for VLDY when not equipped with cylindrical headers
- Spray Water kit (KW)
- Complete Water Spray System incl. pump (SWS)
- Fan-collar in galvanized steel
- Casing coated C4-H or C5-H, with customized thickness and RAL color
- Customized connections: counter flanges, flexible connection joints and ANSI flanges, etc.
- Container skid (SK)
- Mounting kit: 1 or 2 m legs, handrails and ladder
- Electrical accessories
- EMC cables, glands and service switches each fan-motor (EMC)
- Motors equipped with anticondensation heaters, thermal overload Klixon and vibration monitors
- Motors wired to a common terminal box (CB)
- Basic switchboard (B)
- Basic switchboard with frequency converter and manual bypass (BFC)
- Basic switchboard with frequency converter, manual bypass and temperature probe (BFCT)
Design pressure
- Design pressure 10 bar.
- Each heat exchanger is leak tested with dry air at 15 bar.
- Higher design pressure on demand.
Coil
- Optimized coil geometry provides excellent heat transfer, low pressure drop and low fouling thanks to the smooth fins and the large air passage.
- By default, fins are in Industrial aluminium.
- Piping material: copper ø 12 mm (VLD), copper ø 16 mm (VLD6) brazed to copper manifolds and stainless steel (VLDY) TIG welded to stainless steel manifolds.
- Flanged connections PN10/16 according to EN1092.
- Manifolds equipped with venting and draining nozzles, on request with manual ball valves.
- Coil design temperature
- Manifolds -60 °C up to 110 °C
- Header box -40 °C up to 110 °C
- Separate connections provide the opportunity for independent operation of both cooling coils.
Certifications
- The LU-VE quality system is in accordance with ISO 9001 and ISo 14001. All products are manufactured according to PED regulations.
Download
| Alfa V VLD | Leaflet | ENGLISH | Download |
| R-fin Reinforced fin option | Leaflet | ENGLISH | Download |
| SWS Water Spray System | Leaflet | ENGLISH | Download |
| Vibration dampers | Leaflet | ENGLISH | Download |
| Air cooled liquid Coolers | Product manual | Download | |
| Air intake filter | Accessories | ENGLISH | Download |
| Alfa V 1 and 2 m legs mounting kit | Accessories | ENGLISH | Download |
| Alfa V VLD | Instruction manual | Download | |
| ICM2 Regulator, Complete Instruction (FULL) | Accessories | ENGLISH | Download |
| ICM2 Regulator, Quick start Guide | Accessories | ENGLISH | Download |
| Ptec, Master Controller | Accessories | Download | |
| Ptec2, Mater Controller | Accessories | Download | |
| Spray Water kit (KW) for Alfa V | Accessories | ENGLISH | Download |
| Spray Water System (SWS) for Alfa V | Accessories | Download | |

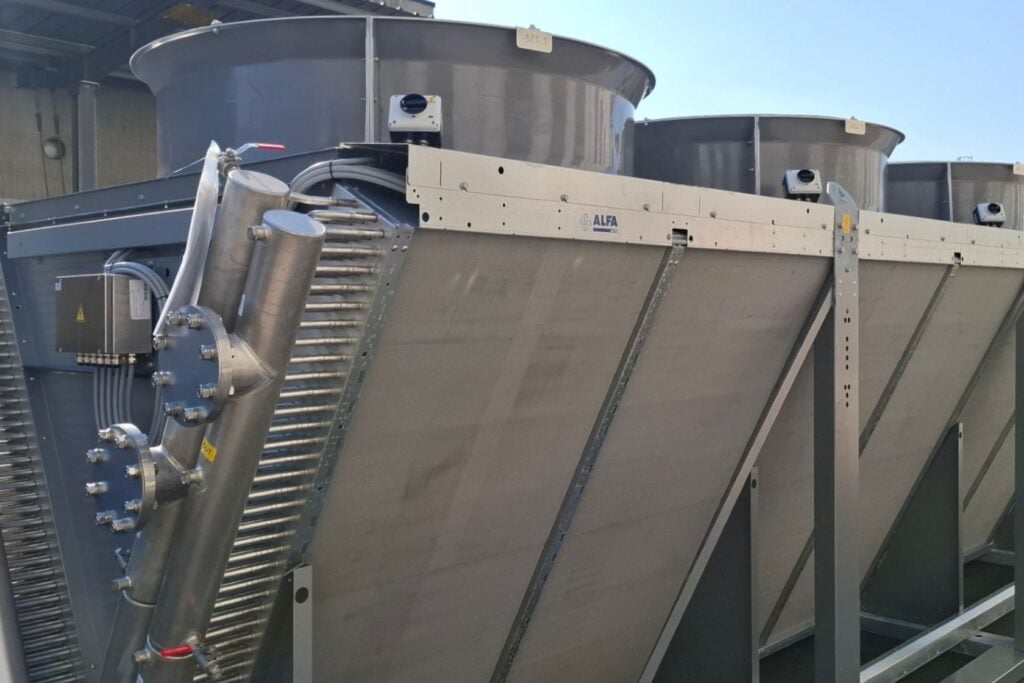

| Alfa V VLD + BFC | Picture | Image 1 | Download |
