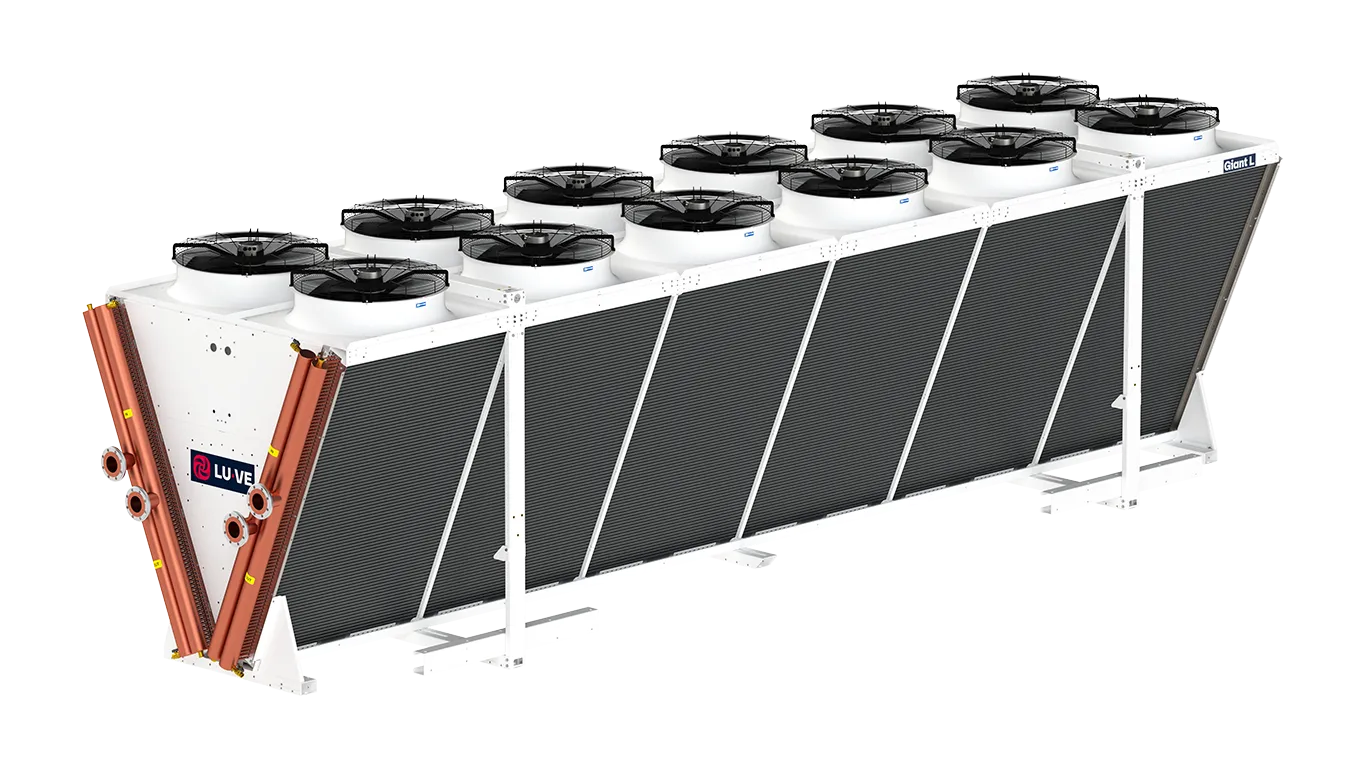

Giant L
Giant L series is a wide range of heavy duty V-type liquid coolers for HVAC, refrigeration and various industrial applications such as water/glycol cooling. For industrial applications, liquid coolers are suitable for
closed circuit cooling of various process liquids in food, power, process and general industries. Giant L liquid coolers provide high capacities at reduced power consumption and a compact footprint.
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
Industrial Process Cooling
Air Conditioning (HVAC)
Product Overview and Options
Electrical accessories: Switchboard panel
Switchboard panel available on request
Technical features
- Main applications
Giant L series is a wide range of heavy duty V-type liquid coolers for HVAC, refrigeration and various industrial applications such as water/glycol cooling - Refrigerant
Glycol - Capacity range
134 up to 1,867 kW - Design pressure
10 bar - Fan-motors
High efficiency, low power consumption AC/EC motors are suitable for multiple voltage and frequency power supply - Fan diameters
ø 900 mm
- Refrigerant
- Glycol
- Capacity range
- 134 up to 1,867 kW
- Design pressure
- 10 bar
Casing
- Casing, supports and frame are made of corrosion resistant galvanized steel to tailor the product for industrial enviroments.
Fan-Motors
- High efficiency, low power consumption AC/EC motors are suitable for multiple voltage and frequency power supply, protection class IP 54 according to DIN 40050.
- Integrated thermo contacts provide reliable protection against thermal overload.
- Dual fan row, 4 – 18 fans, Ø 900 mm with different noise levels
Options
- Fin spacing (3.2 and 4.2 mm)
- Fin material:
- Alupaint fins: Al-Mg alloy coated fins with a special paint treatment to give strong protection and esistance to corrosion
- Cu fins
- Coil protection grid
- Flanges
- Fan section division
- Water Spray Evolution system (WSE)
- Anti-vibration pads (TAM)
- Whisperer (WH)
- Electrical accessories:
- Isolating switch (IS)
- Motors wired to a common terminal box
- Basic switchboard with fuse protection (ESB)
- EC switchboard panel with circuit breakers (ECCB)
- EC fan speed control cabinet (ICM)
Design pressure
- 10 bar.
- Each heat exchanger is leak tested with dry air.
Coil
- Copper tubing circuit design optimized according to liquid flow.
- High efficient fins-tube pattern boost the heat transfer performance.
- Fitted with aluminium turbo-fins.
- Fin spacing 2.1 mm.
- The unique coil construction provides protection against vibration and thermal expansion, thanks to the patented SafeTube System.
Certifications
- The LUVE quality system is in accordance with ISO 9001 and ISO 14001. All products are manufactured according to PED regulations. LUVE participates in the ECP program for HE.
Check ongoing validity of certificate: www.eurovent-certification.com
