Chilled beams
Chilled beam systems deliver superior comfort, silent operation and remarkable energy efficiency. By using water as the primary cooling and heating medium, they provide precise temperature regulation with minimal air movement, creating healthier, more comfortable environments for occupants.

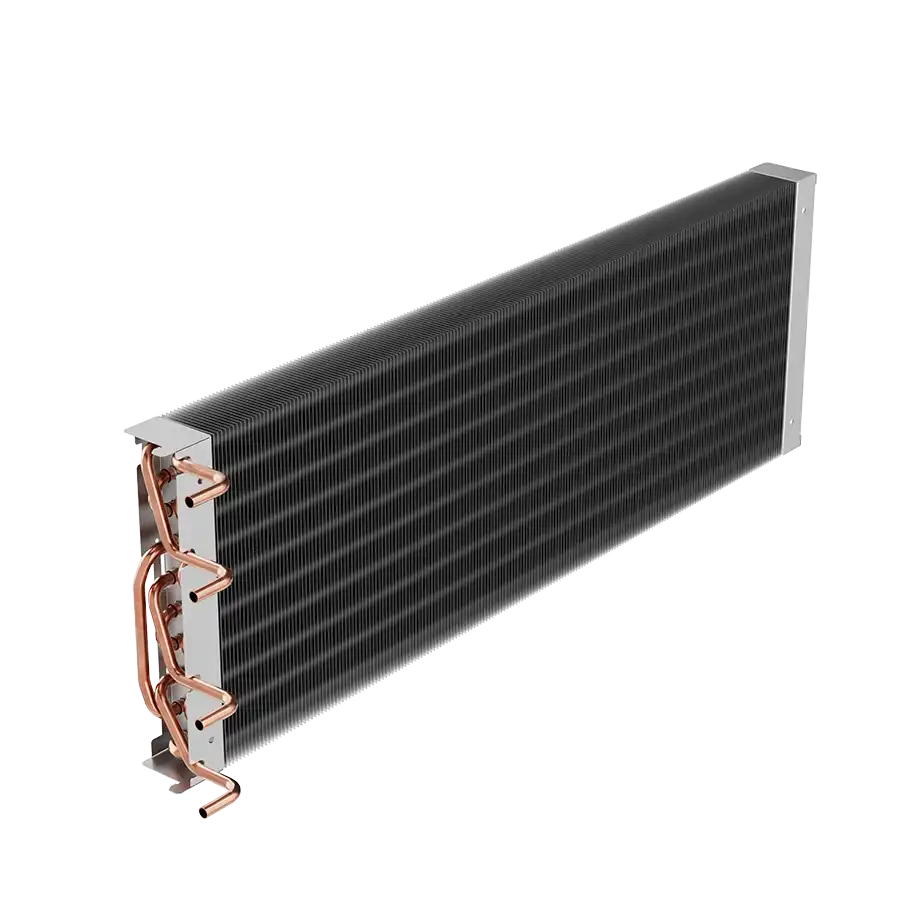

Our heat exchangers are the heart of high-performance chilled beams. Engineered for optimal thermal transfer and compact integration, they ensure efficient operation even at low temperature differences. Designed for easy integration into both active and passive beam designs, supporting lightweight construction, corrosion resistance and long-term reliability.
What profile fits you best?
Fin Patterns
| Shape | Dimensions |
|---|---|
 | Φ4 mm 19,05x16,5 |
| Φ5 mm 19,05x16,5 |
| Φ5 mm 20x17,3 |
| Φ5 mm 25x21,65 |
| Φ6,35 mm 19,05 x 16,5 mm 1/4" OD x 0.75" x 0.65" |
| Φ6,35 mm 25,4 x 22 mm 1/4" OD 1" x 0.866" |
| Φ7 mm 25x12,5 |
| Φ7 mm 21x12,7 |
| Φ7 mm 25x21,65 |
| Φ7 mm 25,4x22 |
| Φ7,94 mm 25x12,5 |
| Φ7,94 mm 25,40x15,87 5/16" OD 1" x .625" |
| Φ7,94 mm 25x21,65 |
| Φ9,52 mm 25x12,5 |
| Φ9,52 mm 25x21,65 |
| Φ9,52 mm 25,4x22 3/8" OD x 1" x 0.866" |
 | Φ9,52 mm 25x25 |
| Φ9,52 mm 25,4x25,4 3/8" OD x 1" x 1" |
| Φ9,52 mm 30x25,98 |
| Φ9,52 mm 34x29,44 |
| Φ9,52 mm 35x35 |
| Φ7,2 mm 25x21,65 |
| Φ12 mm 30x26 |
| Φ12 mm 32x27,7 |
| Φ12 mm 34X29,44 |
| Φ12 mm 35x35 |
| Φ12,7 mm 31,75x27,43 1/2" OD x 1.25" x 1.08" |
| Φ16 mm 50x50 |
| Φ12 mm oval tube 30x26 |
