Whisperer Plus®
Outdoor units
The Whisperer Plus® silencer achieves superior noise reduction at higher fan speeds, ensuring optimal acoustic performance when it matters most.
Whisperer Plus®
2nd Generation Silencers
Top Advantages
- Up to 6 dB(A) sound level reduction
- Up to 20% energy saving
- Smaller footprint
- Reduces warm air recirculation
- Available across multiple units
- Two-year product guarantee
Proven perfomance
A comparative analysis on 3x2 0910 mm EC fan motor units demonstrates that, at equivalent capacity and airflow, the integration of the Whisperer silencer achieves a 20% reduction in power consumption, a 5 dB(A) decrease in sound level and lower fan rotational speed (rpm). These results confirm that the Whisperer Plus® provides substantial improvements in energy efficiency and noise control, maintaining full system performance and airflow integrity.
| EC fans | EC fans +Whisperer Plus® | |
| Capacity (kW) | 446 | 446 |
| Fan Speed (rpm) | 700 | 650 ↓ |
| Air Quantity (m³/h) | 119.570 | 119.570 |
| Power Consumption (W) | 5,465 | 4,340 ↓ |
| Sound Level (dB(A)) | 51 | 46 ↓ |
General information and application

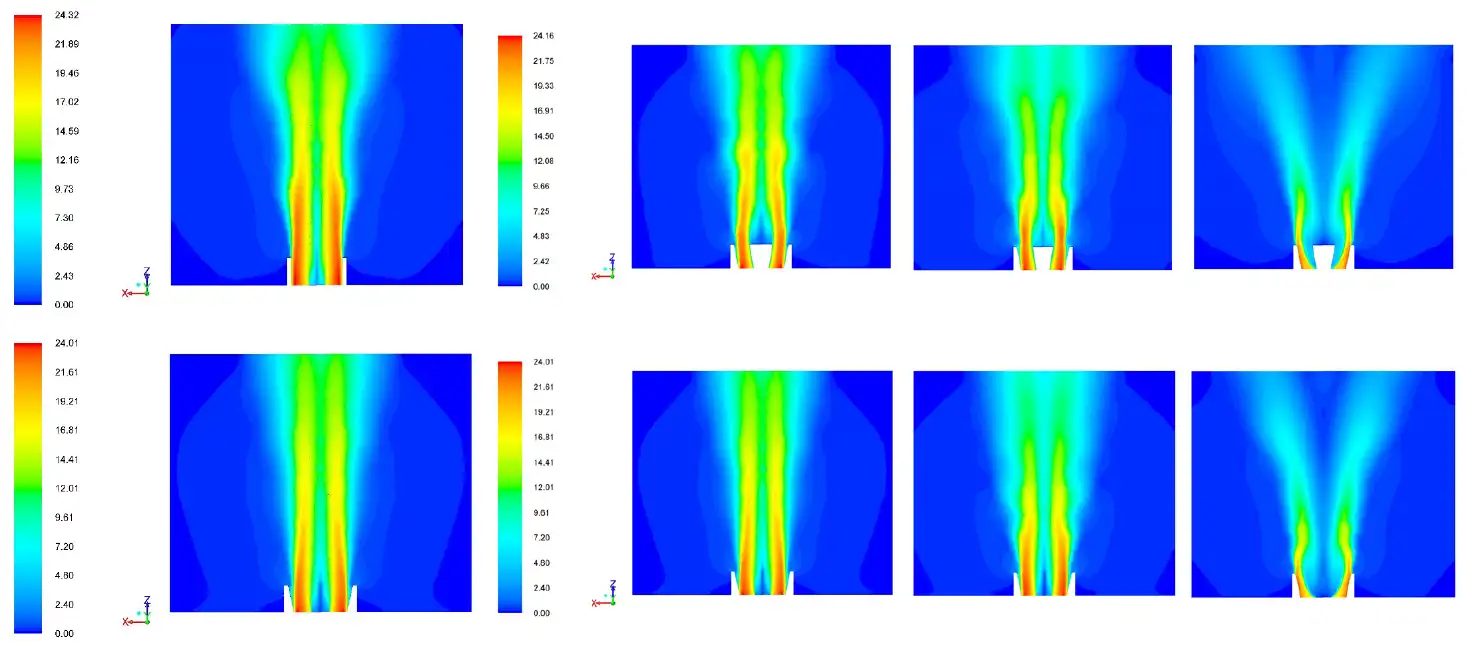

At LUVE, we have developed the Whisperer Plus® silencer to provide an advanced solution that significantly reduces both energy consumption and noise emissions. Our design process combines rigorous numerical simulations with extensive experimental testing.
Through these analyses, we have optimized a range of geometrical shapes and material combinations to maximize both aerodynamic performance and acoustic attenuation. The result is a conical, diverging duct design that allows for effective pressure recovery and reduces airflow velocity while maintaining a constant flow rate. In addition, the use of high-performance soundproofing materials delivers superior noise control without compromising fan performance.
The Whisperer Plus® silencer is especially effective when applied to large fan units, where noise and energy consumption are often critical factors. Its advantages are even greater at higher fan speeds, creating a quieter environment and reducing operating costs.
This solution reflects our commitment to sustainable innovation and meets the growing demand for products that balance efficiency with environmental responsibility. The Whisperer Plus® is available in a range of diameters, making it suitable for installation on multiple units. It can be supplied pre-installed or easily fitted as a retrofit onto existing systems, offering flexible integration to meet various operational requirements.

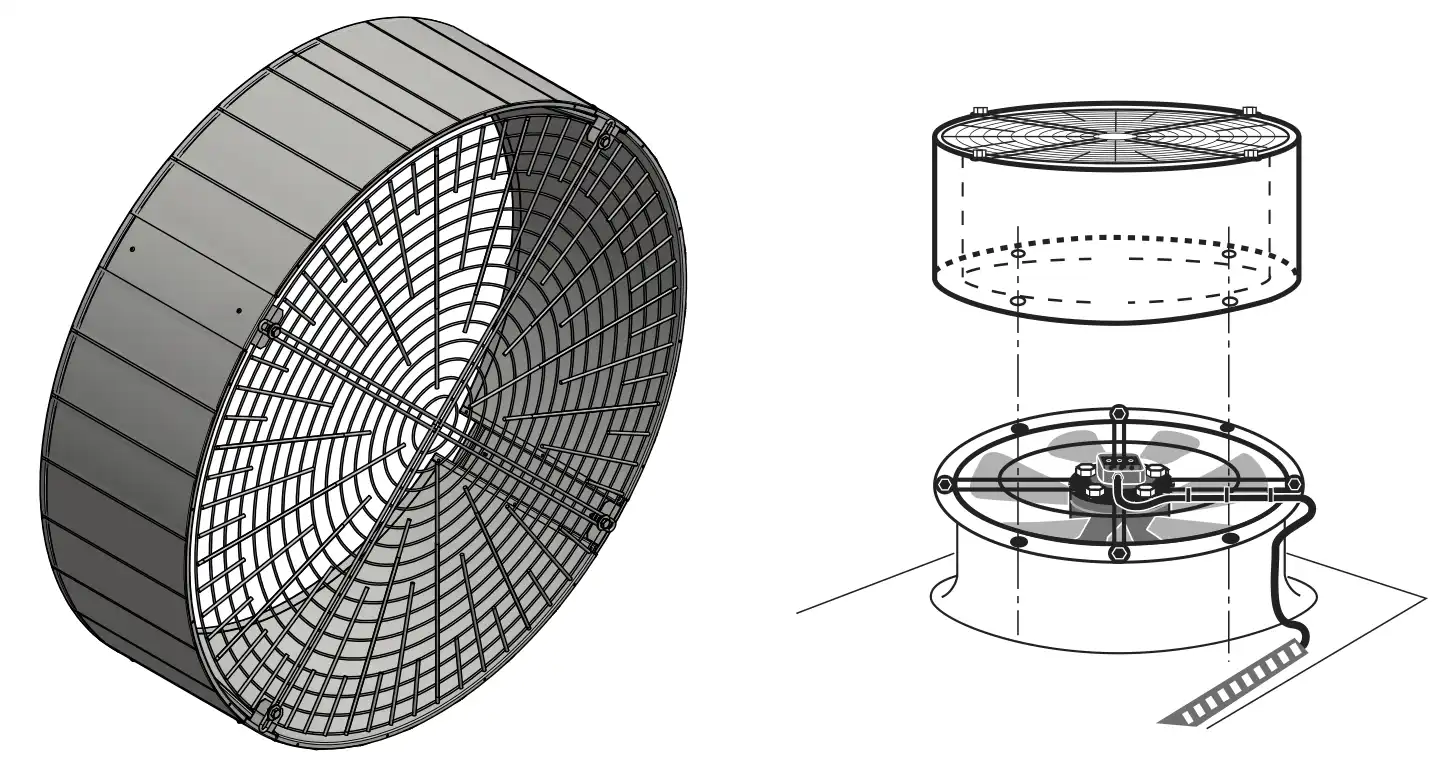

Standard configuration
- Compact housing with conical diverging duct for enhanced pressure recovery
- High-performance acoustic absorbent materials engineered for maximum sound attenuation
- Available in different diameters
Applications
- Refrigeration
- Air conditioning
- Energy & Power Generation
- Data Centers & Big Data Cooling
