Hi-Duty Industrial V Shape Condensers
Ultimate versatility for heavy duty industrial HVACR

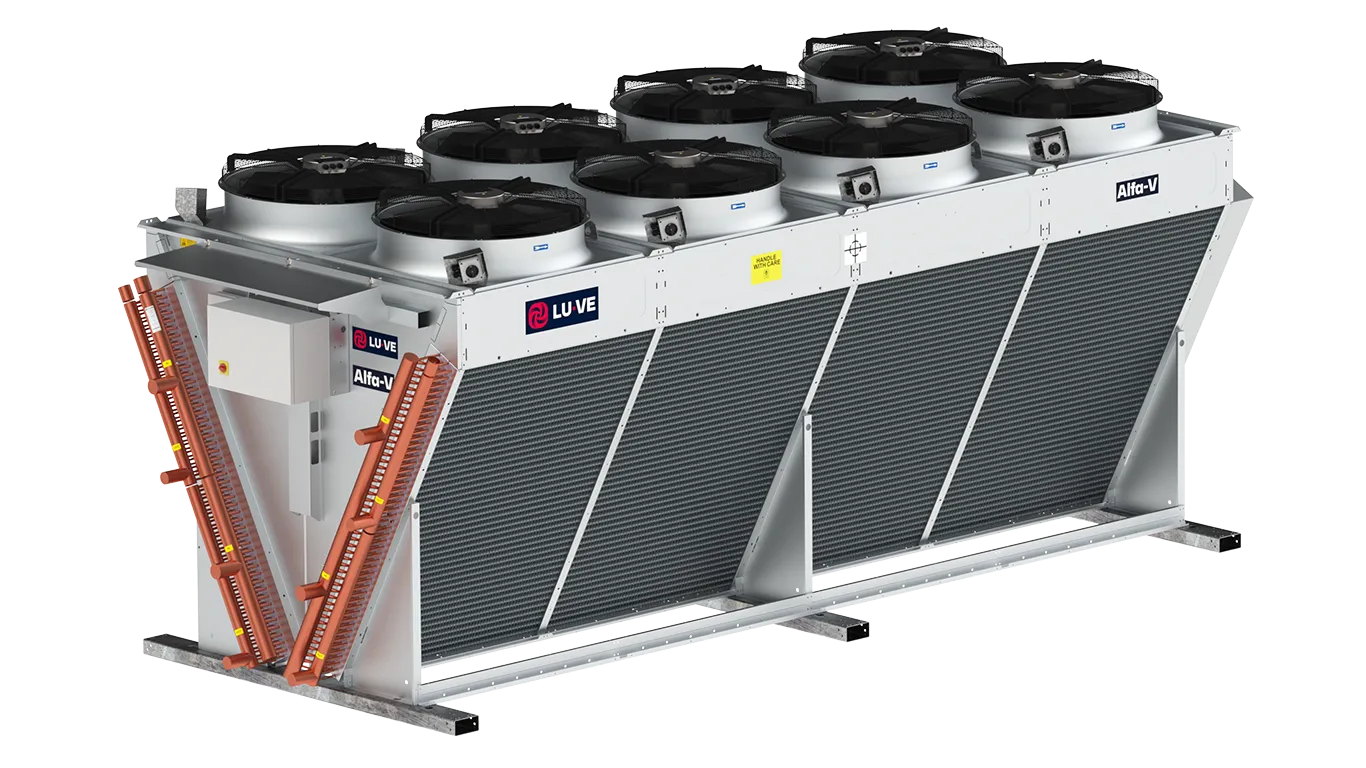

Alfa V ACV
Alfa V ACV
The Alfa V ACV series redefines flexibility for industrial air cooled condenser: its design perfectly adapts to a broad spectrum of demanding applications in industrial refrigeration and air conditioning. This all-in-one solution delivers premium cooling performance, outstanding durability and exceptional customization, tailored to your operational needs.
Consultant
Ensure every cooler meets your performance expectations with LUVE’s Eurovent Certification. Access technical data and calculation tools to ease complex decisions.
System Integrator
Simplify system management with LUVE’s modular and scalable Alfa V ACV condensers, designed to meet diverse cooling needs in air conditioning and refrigeration. Comprehensive technical documentation is available online. Additionally, our aftersales team provides expert assistance to facilitate even the most complex installations and ensure smooth project execution.
General Contractor
Enjoy hassle-free installation with LUVE’s plug & play, easy-to-install solutions requiring minimal onsite assembly. Full project support available from feasibility to commissioning with on-site assistance from our service experts.
Dealers / OEMs
Quickly access comprehensive product documents in LUVE’s Members Area. Manuals, drawings, wirings and product leaflets. Use the Plair configurator to generate personalized technical selections and quotations branded with your identity.
End User
Rely on proven and certified product performance, benefit from digital spare parts catalogs, commercial support and our comprehensive aftersales portal detailing service options and spare parts availability.
Service Provider
Get easy access to technical documentation in our Members Area. Identify and order spare parts efficiently backed by commercial support to ensure swift repair and maintenance.
Not your profile?
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
Solutions for cold rooms, food processing and temperature-sensitive logistics.
- Wide capacity range to meet any project size.
- Robust, corrosion-resistant construction.
- Easy-to-clean industrial coil.
- Eurovent certification for guaranteed cold chain reliability.
Air Conditioning
Designed for commercial, industrial and residential climate control.
- Excellent capacity-to-footprint ratio.
- Energy efficient.
- Ultra-quiet operation through advanced aerodynamic design.
- Flexible installation: rooftop, commercial, or residential area.
Technical Highlights
- Heavy duty V-shape construction for durable performance in diverse industrial environments.
- Cooling capacity: 115 to 1850 kW (Tair = 25 °C, Tcond = 40 °C, Tsubcool < 3K, Tsuperheating = 25K).
- Innovative coil design: cross-fin copper tubes, with two different aluminum fins type.
Turbo fins for maximized performance or exclusive industrial-grade R-Fin for enhanced durability and easier cleaning.
DISCOVER THE TECHNOLOGY - Casing and frame in galvanized steel with standard corrosion resistance class C4-H.
- AC/EC fan motors in three diameters (800/910/1000 mm), five noise levels, ErP compliant, with broad multi-voltage compatibility.
- Modular range: configure precisely to your cooling requirements for complete operational flexibility.
- Eurovent certified for verified performance and reliability.
Download Eurovent certificate or Learn more about Eurovent - Extensive options portfolio for tailored solutions.
- Online configuration: Plair – Start your tailored configuration
Configure with Plair
The free collaborative tool to configure air heat exchangers.
The latest version of our selection software Plair is available online.
Distinctive Technologies
Industrial grade R-Fin
Corrosion resistance
Corrosion resistance: special paintings for maximum protection for offshore, marine, and industrial atmospheres available on request.
Plug&Play
Plug&Play: factory pre-assembled for rapid commissioning.
Mechanical design
Mechanical design: suitable for highly demanding site conditions (wind, snow, earthquake) and, on request, extreme or custom conditions.
Top Advantages
Reliable performance, Eurovent certified
Reduced energy consumption and operating costs
Market-leading noise levels and compact size
Advanced customization options
Easy-to-clean industrial coil
Technical features
- Main applications
Alfa V condenser (ACV=HFC) - Refrigerant
HFC - Capacity range*
115 up to 1850 kW* Nominal capacities (Tair = 25°C, Tcond = 40°C, Tsubcool < 3K, Tsuperheating = 25K).
- Design pressure
33 bar - Fan-motors
ErP compliant fan AC & EC motors and different noise levels - Fan diameters
ø 800, 910 and 1000 mm - Fin spacing
Standard fin spacing 2.0, 2.1, 2.3, 2.5 and 3.0 mm
- Refrigerant
- HFC
- Capacity Range*
- 115 up to 1850 kW
- Design pressure
- 33 bar
* Nominal capacities (Tair = 25°C, Tcond = 40°C, Tsubcool < 3K, Tsuperheating = 25K).
Casing
- Frame construction provides high rigidity for protection against vibration and thermal expansion.
- Casing, supports and frame made of corrosion resistant galvanized steel (class C4-H).
- Separated fan sections and removable fan rings.
Fan-Motors
- ErP compliant fan AC & EC motors and different noise levels.
- Motors with external rotor, protection class IP54 according to DIN 40050.
- AC power supplies 400/50/3, 400/60/3 and 460/60/3 with integrated thermo contacts to provide reliable protection against thermal overload.
- EC power supply 380-480/50-60/3.
- Available in different fan diameters: 800, 910 and 1000 mm.
Options
- Connection box (CB)
- Connection box with single switch for all fans (CB1) Shut up sock (S) – for ISD
- Sock Ring (SR) – for ISD
- Electric defrost systems:
- Electric defrost in driptray + hot gas in coil (E1)
- Electric defrost heavy (E2)
- Electric defrost light (E4)
- Hotgas defrost systems:
- Hotgas defrost (HG)
- Hotgas defrost, connected (HGC)
- Hot glycol ciruit defrost (HW) – copper tubes
- Stainless steel casing and coil frame (SSC)
Standard materials for underplate (aluminium) and fan grid (black painted steel)
- Alternative fin materials (SWR / EP)
- Dual fin spacing (DF) – on request
- On/off switch (SW)
- Motorized defrost damper – on request for ISD
- Top connections (AVA) – for brine models
- Flanges PN16 in AISI 304 for copper or stainless steel tubes models (F) – for brine models. Supplied loose.
- Fan casing 90° / 45° (FC1 / FC2) – for ISD
- Suction hood 90° / 45° (H1 / H2) – for ISD
- Insulated suction hood 90° / 45° (IH1 / IH2) – for ISD
- Hinged fan (HF)
- Insulated drip tray (I2)
- Mounting feet (MF)
- Fan ring heater (FRH)
- Streamer (ST) – for ISD
Design pressure
- 33 bar.
- Each heat exchanger is leak tested with dry air and finally supplied with a
nitrogen pre-charge.
Finned Coil
- An innovative coil design provides excellent heat transfer at minimal refrigerant charge.
- Condensers are fitted with cross-fin copper (ACV).
- Fins in aluminium or sea water resistant AlMg, plain fin design for easy cleaning and long-lasting performance.
- Separate connections provide the opportunity for independent operation of both condenser coils.
- Standard fin spacing 2.0, 2.1, 2.3, 2.5 and 3.0 mm
Eurovent Certified
- All Alfa V ACV condenser models are “Eurovent Certify All” certified. The LUVE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations. LUVE participates in the ECP program for HE.
Check ongoing validity of certificate: www.eurovent-certification.com
