Vantage FHA

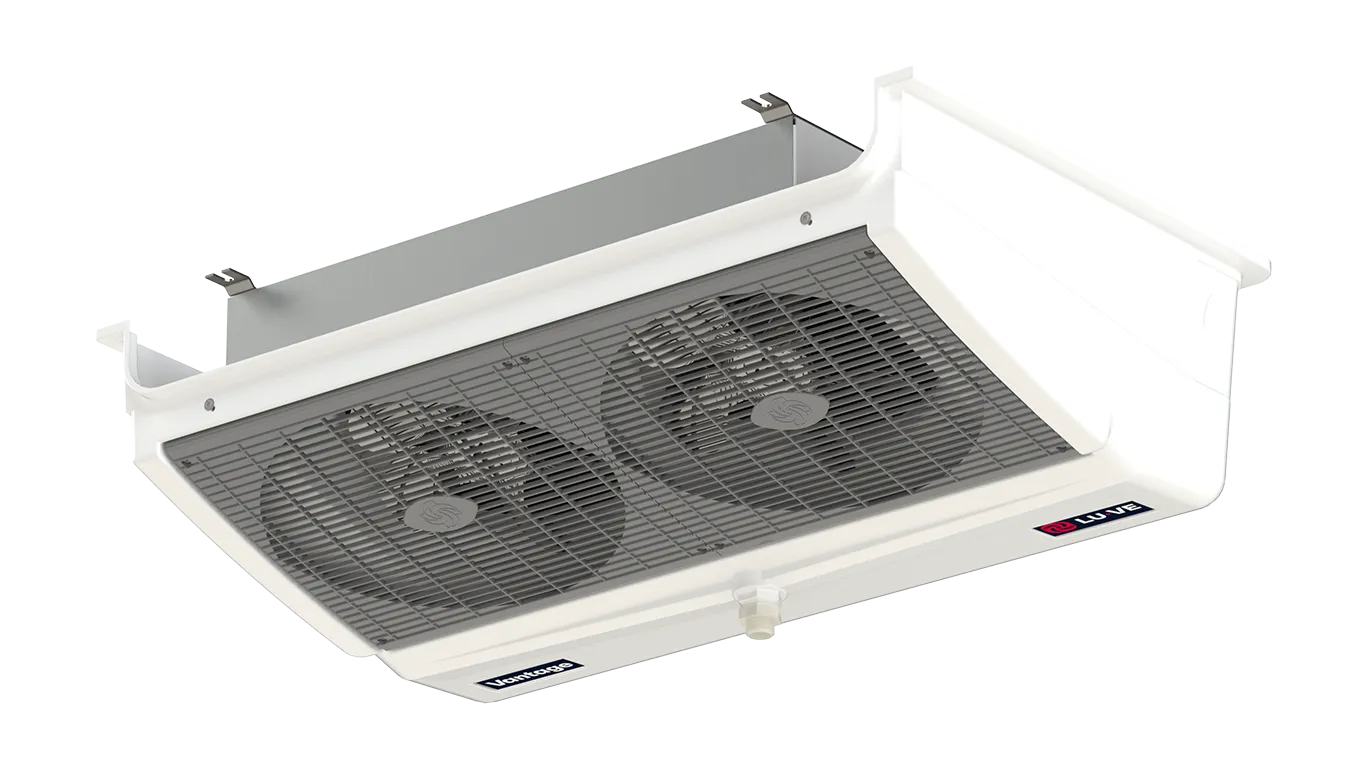

Vantage FHA is a commercial angled air coolers line for general application in small cold rooms.
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
Plair — Cold Room Calc
Plair is LUVE’s collaborative selection tool for air heat exchangers, designed to simplify configuration and speed up quotation processes.
Our Cold Room Calculator helps you define the correct heat load for cooling and freezing rooms.
Technical features
- Main applications
FHA is a commercial angled air coolers line for general application in small cold rooms - Refrigerant
HFC, CO2 and Brine - Capacity range
1130 up to 8250 W - Air flow
550 up to 3,000 m3/h - Design pressure
10 up to 60 bar - Fan-motors
High efficiency AC or EC fan motors - Fan diameters
ø 275 mm
- Refrigerant
- HFC, CO2 and Brine
- Capacity Range
- 1130 up to 8250 kW
- Air flow
- 550 up to 3,000 m3/h
- Design pressure
- 10 up to 60 bar
Casing
- Highly resistant casing in reinforced synthetic “Safeshell” material.
- Shape designed to minimize damage caused by accidental impact.
- Dismountable and openable casing for maintenance and cleaning purposes.
- Plastic drain connection.
Fan-Motors
- Available with 1 to 4 fans fitted with EC fan motors, blowing through the coil.
- Fan diameter 275 mm.
- Power supply 230/50-60/1.
- Fan motors are wired to connection box.
Options
- Electric defrost (E)
- Stainless steel tubes
- Pre-coated aluminium fins (AP)
- AC fan motors
Design pressure
- Refrigerants
- Max working pressure
- HFC*
- 24 bar
- CO2
- 60** bar
- Brine
- 10 bar
* Fluid group 2 according to EN 378; ** 85 bar in special execution
Coil
- Fitted with TURBOCOIL®2 heat exchanger, ensuring the highest possible ratio of capacity to cost.
- It is manufactured with small diameter, high-efficiency copper tubes with inner helical grooving for DX units, specifically designed for the new refrigerants and CO2.
- Aluminium fins with special turbulator profile to reduce dehumidification and frost formation.
- Standard fin spacing: 3.0, 4.5 and 7.0 mm.
Certifications
- The LUVE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations. LUVE participates in the ECP program for HE. Check ongoing validity of certificate*:
www.eurovent-certification.com
- The LUVE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations. LUVE participates in the ECP program for HE. Check ongoing validity of certificate*:
*Brine refrigerant is not covered by Eurovent certification
