Hi-Tech Cabinet Air Coolers
Compact air coolers
Cabinet SHS
Cabinet SHS

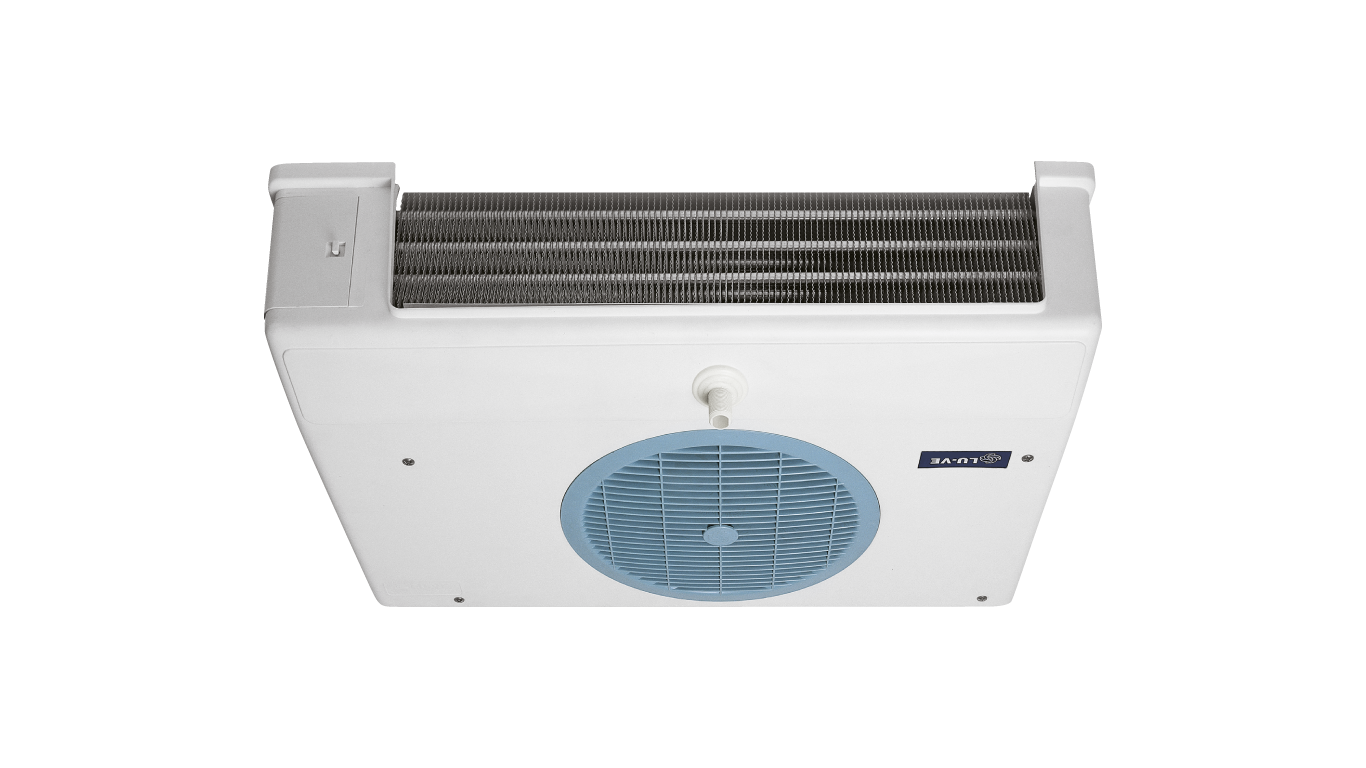

Cabinet BHS and SHS are series of commercial air coolers, designed for reach-in cabinets and small cold rooms, featuring a superefficient heat exchanger and greatly reduced internal volume.
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
Technical features
- Main applications
Cabinet BHS and SHS are series of commercial air coolers, designed for reach-in cabinets and small cold rooms - Refrigerant
HFC - Capacities
520 up to 1690 W - Air quantity
up to 1250 m3/h - Design pressure
24 bar - Fan-motors
AC fan motors - Fan diameters
ø 230 mm
- Refrigerant
- HFC
- Capacities
- 520 up to 1690 W
- Air quantity
- up to 1250 m3/h
- Design pressure
- 24 bar
Casing
- Casing is made from “Safeshell” impact-resistant safety material.
Fan-Motors
- AC fan motors Ø 230 mm.
- Power supply 230/50/1.
- Protection class IP 44.
Options
- Coil corrosion protection:pre-coated aluminium fins (AP).
- Electric defrost (E)
The stainless steel defrost elements are connected to dedicated terminal box.
Design pressure
- Max operating pressure 24 bar.
Coil
- High-efficiency coil manufactured from internally grooved Cu tubes and aluminium fins.
- Maximized performance thanks to the high capacity TURBOCOIL® heat exchanger manufactured with internally grooved tubes and TURBOFIN® fins.
- Standard fin spacing 5 mm.
Certifications
- The LU-VE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations.
