Hi-Tech Plus Commercial Cubic Air Coolers
Alfa Optigo FCC
Alfa Optigo FCC

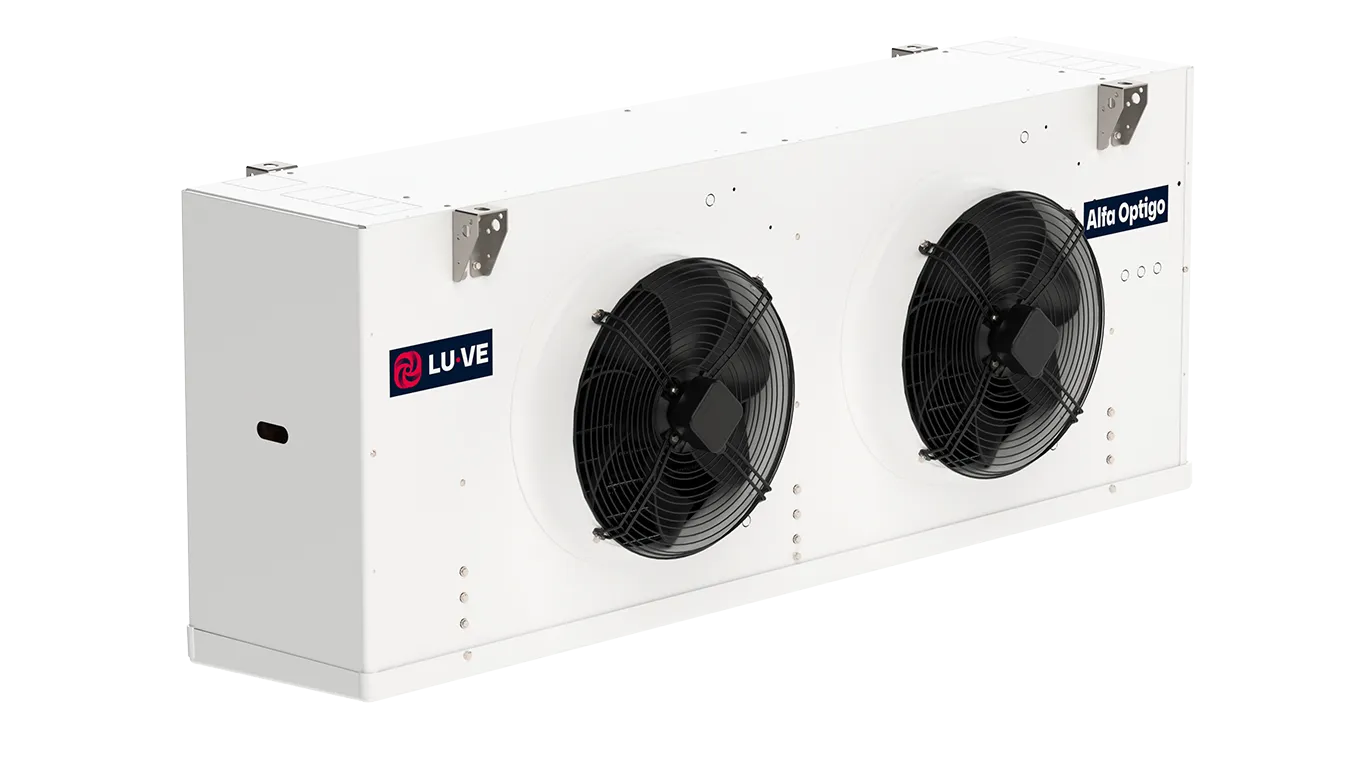

Alfa Optigo FCC are cubic light industrial air coolers for general application in small to medium-sized cooling, freezing and working rooms. Alfa Optigo FCC models are especially suitable for refrigerated working, processing and storage rooms.
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
Data Center Cooling
Plair — Cold Room Calc
Plair is LUVE’s collaborative selection tool for air heat exchangers, designed to simplify configuration and speed up quotation processes.
Our Cold Room Calculator helps you define the correct heat load for cooling and freezing rooms.
Technical features
- Main applications
Optigo FCC are cubic light industrial air coolers for general application in small to medium-sized cooling, freezing and working rooms - Refrigerant
HFC, CO2 and Brine - Capacity range
5.4 up to 60.4 kW - Air flow
4,600 up to 32,400 m3/h - Min. room temperature
-35 °C - Design pressure
10 up to 60 bar - Fan-motors
1 to 4 fans fitted with high efficiency AC or EC fan motors - Fan diameters
ø 450 and 500 mm
- Refrigerant
- HFC, CO2 and Brine
- Capacity Range
- 5.4 up to 60.4 kW
- Air flow
- 4,600 up to 32,400 m3/h
- Min. room temperature
- -35 °C
- Design pressure
- 10 up to 60 bar
Casing
- Durable galvanized steel casing, powder coated RAL 9003.
- Dismountable and openable casing for cleaning and inspecting purposes.

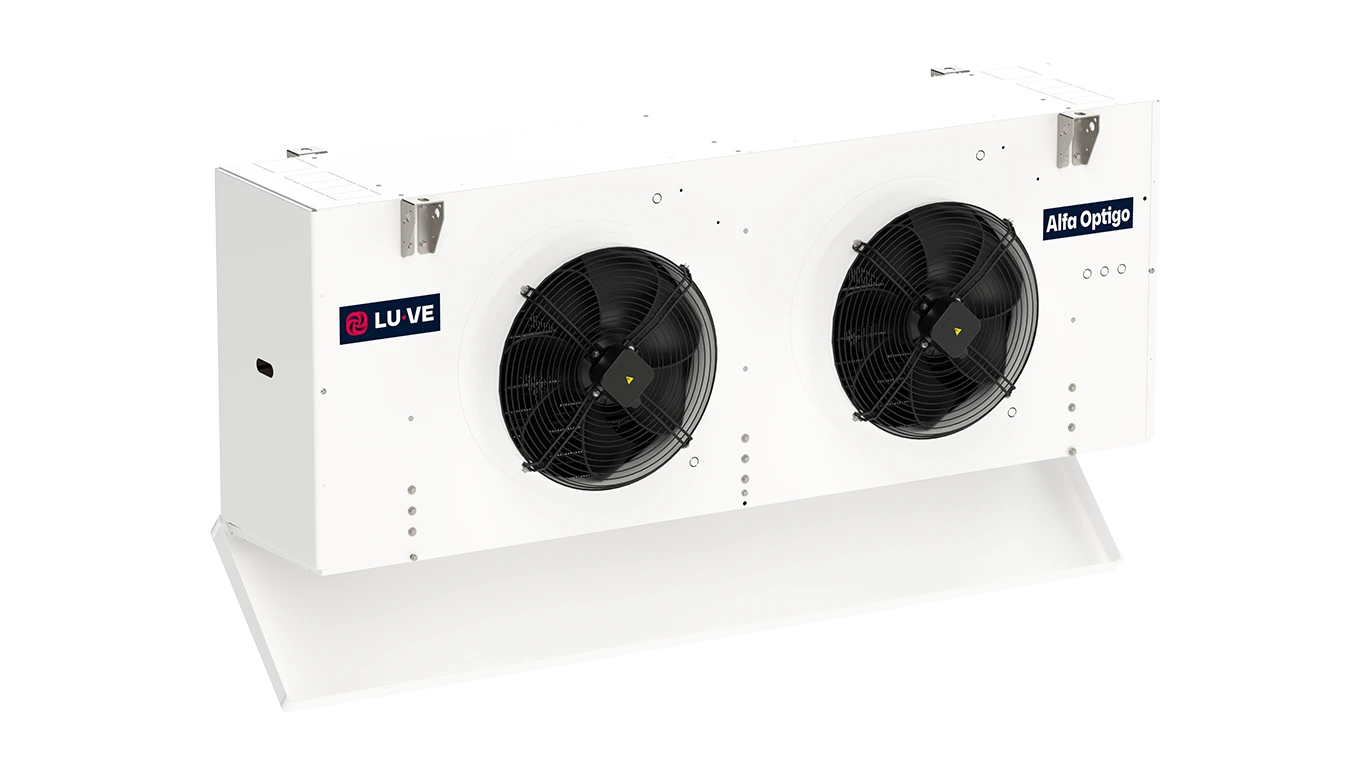

- Fitted with hinged drain tray.
Fan-Motors
- 1 to 4 fans fitted with high efficiency AC or EC fan motors.
- Fan motors available in two fan diameters (450 and 500 mm) drawing through the coil.
Options
- Corrosion protection: precoated aluminium fins (AP)

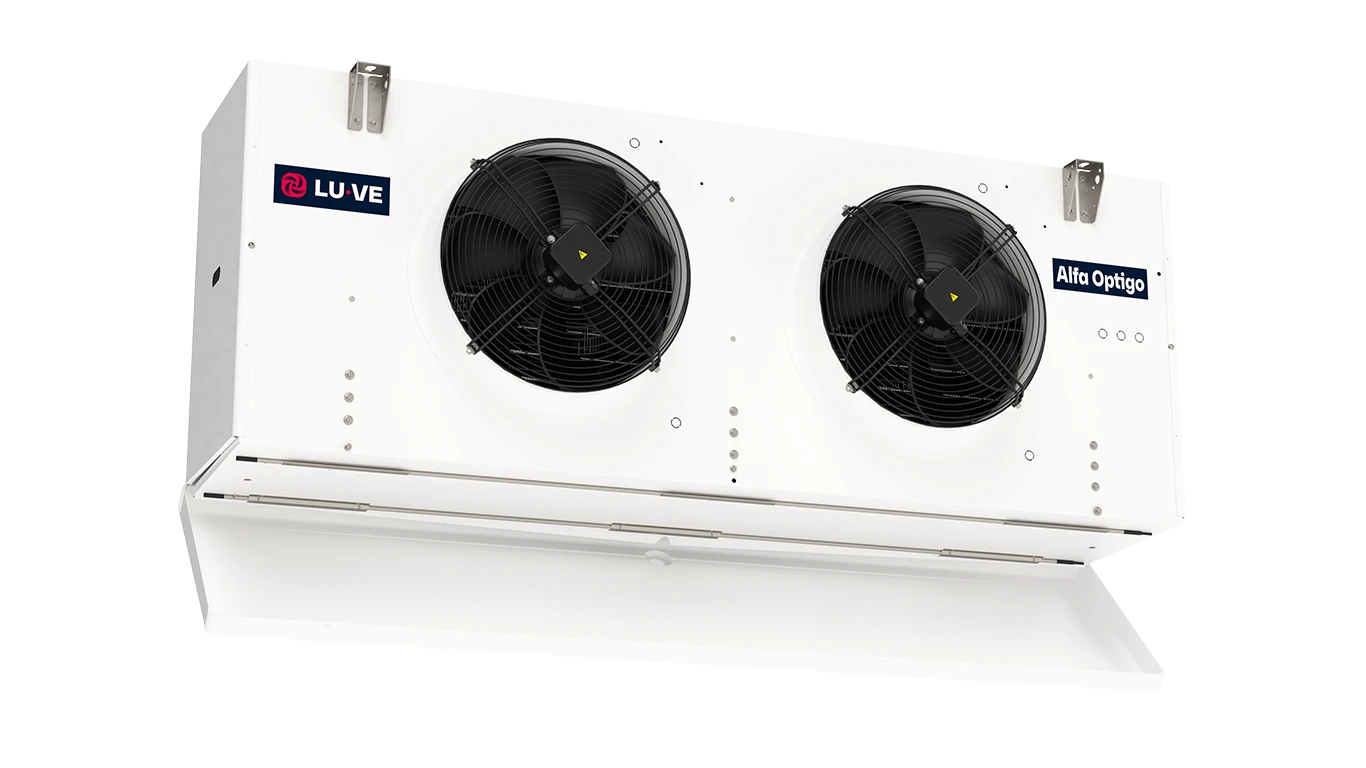

- Electric defrost (E). The stainless steel defrost elements (both in coil and in drain tray) are connected to dedicated connection box
- Hot gas defrost (G) – hot gas in coil, electrical in drain tray
- Fan shroud heater
- EC fans (0-10 V) + Modbus

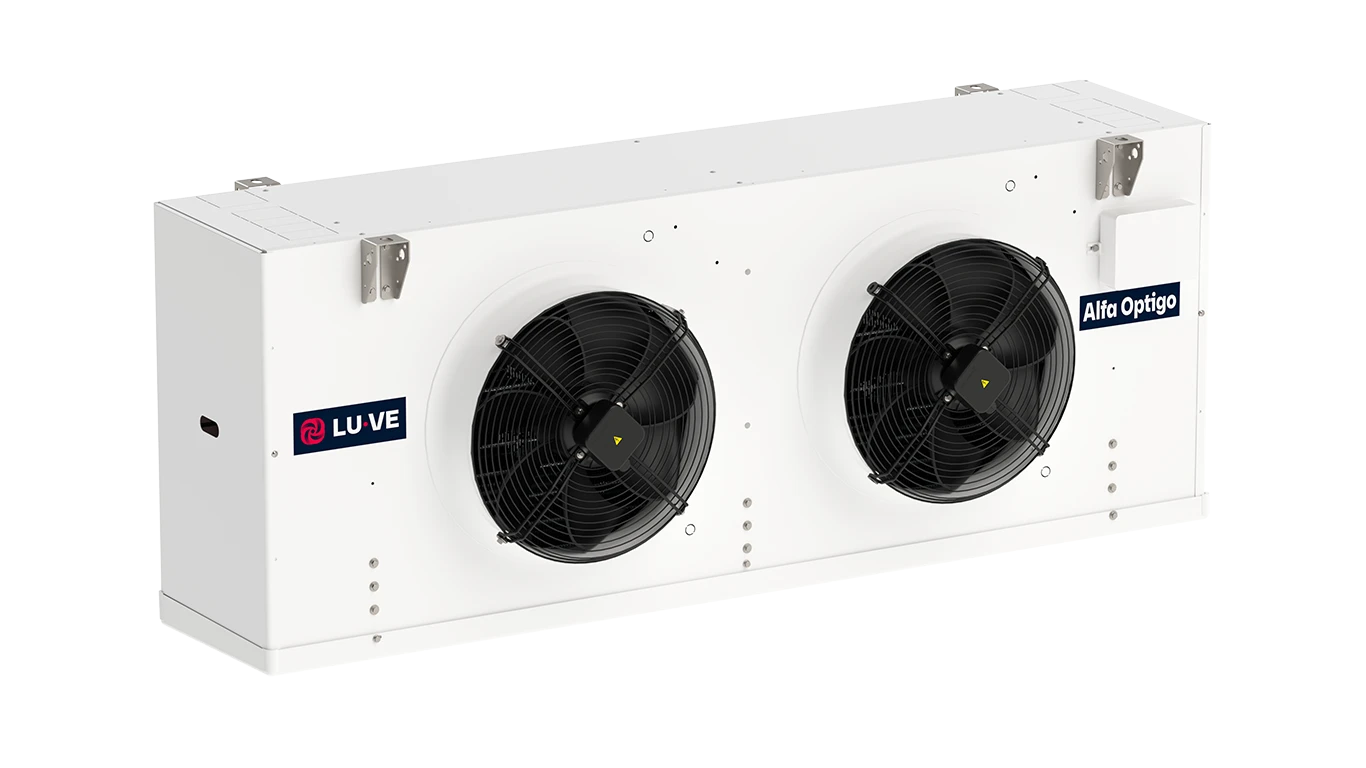

- Fan motors wired to a central connection box

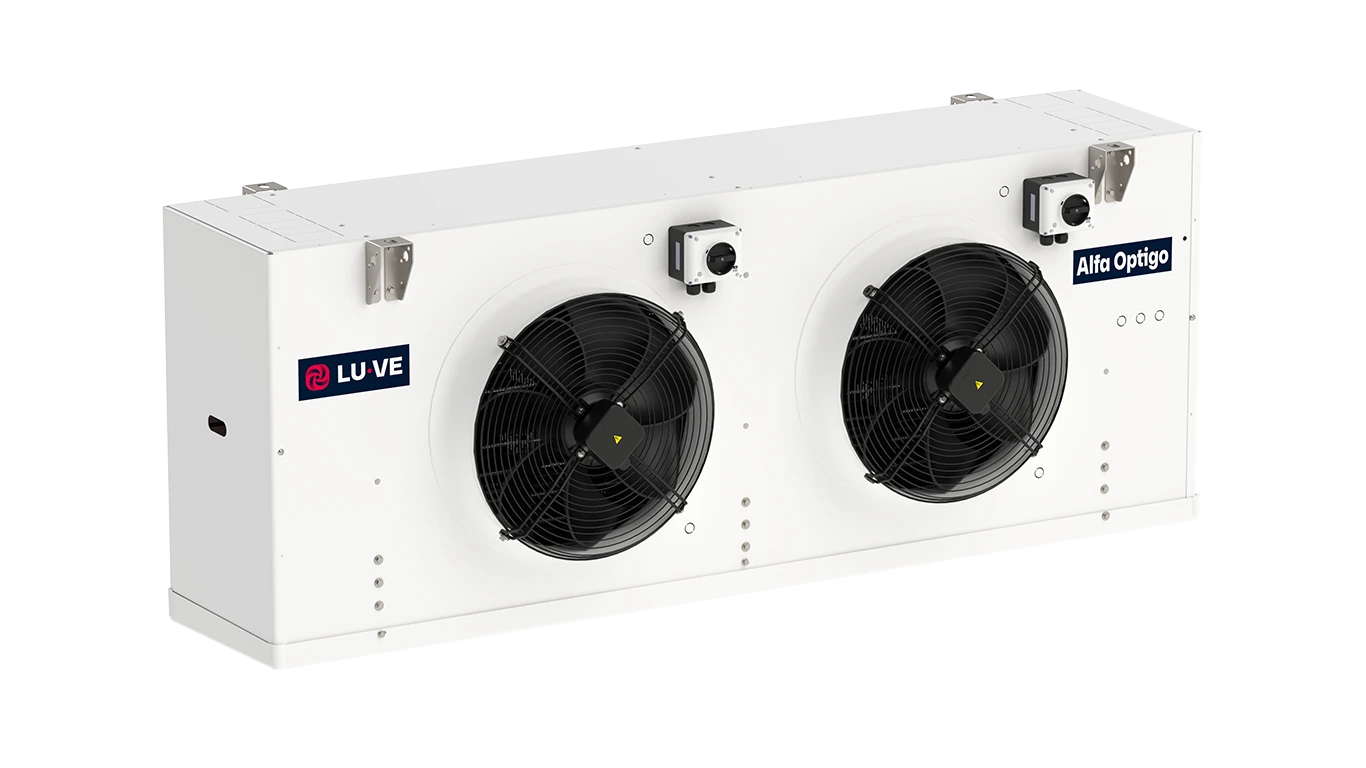

- Fan switches
- Insulated drain tray
- Shut-up sock (S)
- Sock ring (SR)
- Air streamer (ST)
- Top connections – for brine models
Design pressure
- Refrigerants
- Max working pressure
- HFC*
- 24 bar
- CO2
- 45-60 bar
- Brine
- 10 bar
* Fluid group 2 according to EN 378

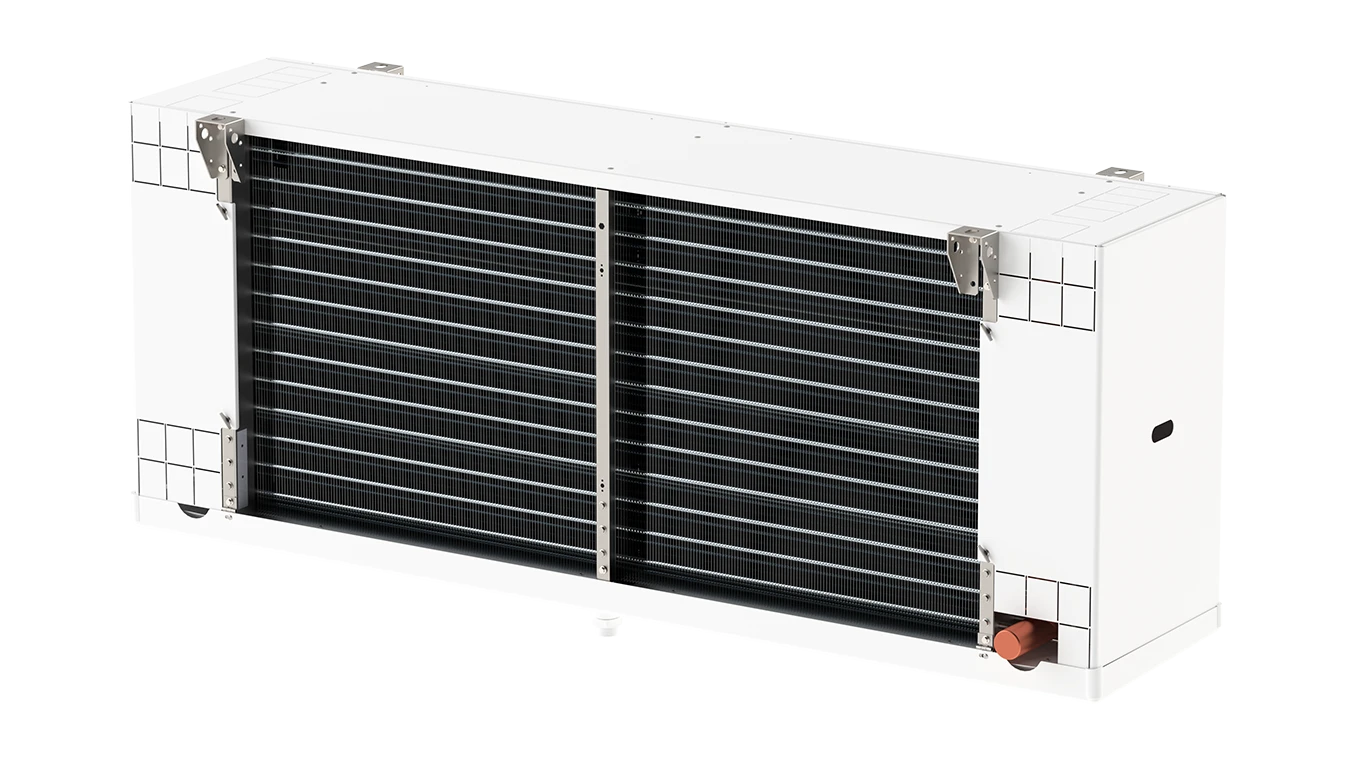

Coil
- High-efficiency coil manufactured from internally grooved Cu tubes and louvered aluminium fins.
- Standard fin spacings: 4.5, 6.0, 7.5 and 10.0 mm.
Certifications
- The LU-VE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations. LU-VE participates in the ECP program for HE. Check ongoing validity of certificate*:
www.eurovent-certification.com
- The LU-VE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations. LU-VE participates in the ECP program for HE. Check ongoing validity of certificate*:
*Brine refrigerant is not covered by Eurovent certification
