Hi-tech cubic commercial air coolers
Efficient cooling made simple

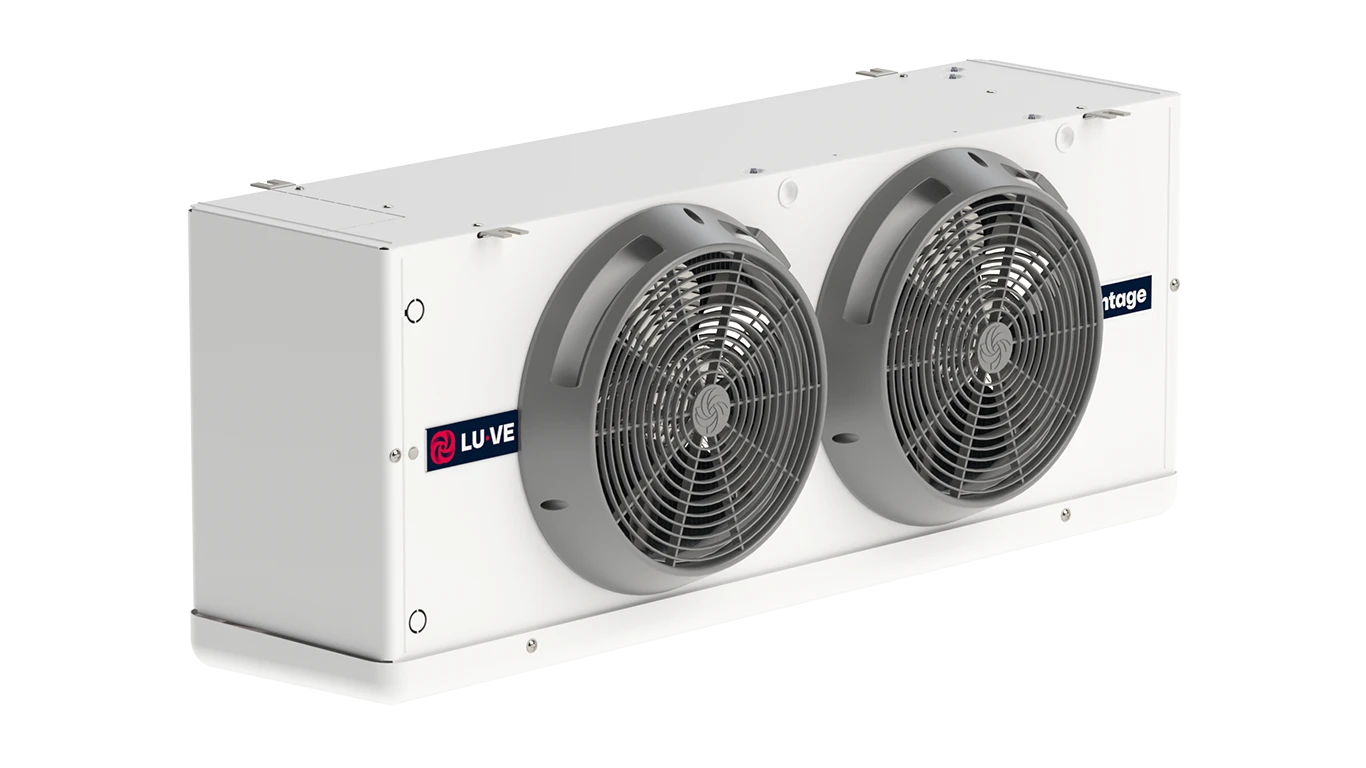

Vantage FHC
Vantage FHC
Compact commercial unit coolers designed for optimal conservation of fresh and frozen goods in commercial refrigeration and for efficient brine-based cooling in data center grey spaces.
Consultant
Vantage FHC provides certified performance data and advanced coil technologies essential for precise design. Eurovent certified performance for HFC and CO2 models for verified performance Comprehensive technical documentation for accurate system calculations. Multiple fin spacing and defrost options for optimized design flexibility.
System Integrator
FHC’s modular design and standard brine compatibility simplify integration into diverse refrigeration cooling systems and data center grey spaces. The compact cubic footprint enables easy integration in tight spaces. A wide range of fan configurations matches system requirements precisely, and pre-assembled units significantly reduce onsite installation time.
General Contractor
FHC offers plug-and-play installation with minimal onsite work for commercial refrigeration projects. The dismountable casing provides easy cleaning and maintenance acces. The robust construction withstands the demands of commercial environments.
Dealers / OEMs
Complete technical resources and configuration tools streamline sales and project support for Vantage FHC units. Dealers and OEMs enjoy full access to DWG drawings, wiring diagrams and product documentation complemented by the Plair configurator for fast, branded quotations and technical selections.
End User
Vantage FHC delivers reliable, energy-efficient cooling with minimal maintenance for commercial refrigeration applications. Extremely low energy consumption comes from high-efficiency EC fan options, and reduced frost formation plus dehumidification extends cleaning intervals significantly. The two-year product guarantee ensures operating reliability, while JETSTREAMER technology maintains consistent performance even with frosting.
Service Provider
Vantage FHC’s service-friendly design minimizes maintenance time and maximizes system uptime. The dismountable and openable casing allows easy coil inspection and cleaning, with centralized wiring to a single connection box simplifying service access. Comprehensive online manuals and spare parts lists are always available for straightforward service.
Not your profile?
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
- High-efficiency coils with TURBOFIN aluminum fins for superior heat transfer.
- Available with insulated suction hood for optimized air distribution.
- Easy maintenance and cleaning with dismountable and openable casing.
- High capacity and long air throw, thanks to patented Jetstreamer grill.
Data Center / Big Data Cooling
- Efficient, scalable cooling for server farms, telecom sites, digital switch rooms and technical spaces.
- Brine cooler optimized for indirect cooling applications in IT and telecom infrastructure in grey areas.
- Uniform airflow distribution thanks to JETSTREAMER directional grill for consistent coil utilization.
- High-efficiency EC fan options: quiet operation, energy savings, low-maintenance and improved PUE.
- Accessibility and transport features make installation fast and safe.
Technical Highlights
- Modular commercial air cooler in draw-through design.
- Cooling capacity (SC2): from 1.45 kW up to 65.2 kW
- Available with 6 different fan diameters and fin spacings10 coil block modules with 3 to 10 tube rows; tubing in copper or stainless steel. Square 50 mm tube pitch with corrugated aluminium fins, multiple fin spacing options (4–12 mm).
- AC/EC fan motors with 275, 315, 350, 450, 500 and 630 mm diameter, 1 to 4 fans per unit. Single speed EC fans for F27 models, dual speed or 0-10 V control input for F31 and F35 models.
- Corrosion resistant galvanized steel casing, epoxy-coated RAL 9003.
- Dedicated series for HFC, CO₂ and brine.
Discover our A2L refrigerants dedicated product. - Designed for high energy efficiency and low defrost frequency.
- Eurovent certified for verified performance and reliability.
Download Eurovent certificate or Learn more about Eurovent - Configure your ideal solution quickly with our online selection software: Plair – Start your tailored configuration
Plair — Cold Room Calc
Plair is LUVE’s collaborative selection tool for air heat exchangers, designed to simplify configuration and speed up quotation processes.
Our Cold Room Calculator helps you define the correct heat load for cooling and freezing rooms.
Distinctive Technologies
TURBOCOIL heat exchanger
Unique to LUVE, ensures maximum performance and minimized defrost frequency.
Jestreamer
Directional grill ensures uniform airflow through the coil, increasing air quantity even with frosted coils.
High efficiency fan motors
State-of-the-art AC and EC fan motors deliver optimum airflow with low energy consumption and compliance with ErP energy efficiency standards.
Top Advantages
Reliable performance, Eurovent certified
Extremely low internal volume
Reducing refrigerant charge
Reliable, quiet and energy efficient
Easy-access, easy-clean
Fully accessible casing
Product Overview and Options

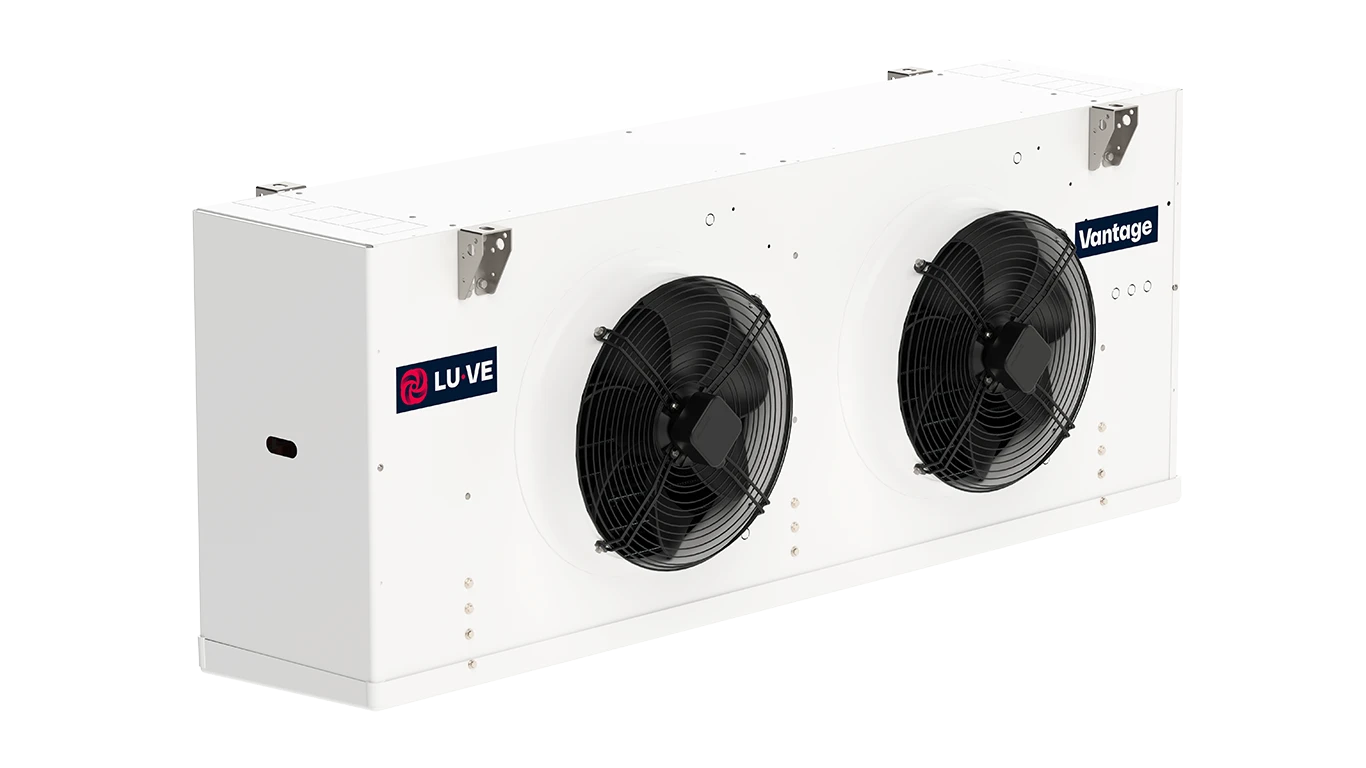

F45HC - F50HC Cubic light industrial air coolers
F45HC, F50HC and F62HC are cubic light industrial air coolers for general application in small to medium-sized cooling, freezing and working rooms.
Technical features
- Main applications
FHC is the range of commercial and industrial unit coolers from LUVE, designed for optimal conservation of fresh and frozen goods - Refrigerant
HFC, CO2 and Brine - Capacity range
1,450 up to 65,200 W - Air quantity
900 up to 34,800 m3/h - Fan-motors
1 to 4 fans fitted with high-efficiency AC or EC fan motors - Fan diameters
ø 275, 315, 350, 450, 500 and 630 mm
- Refrigerant
- HFC, CO2 and Brine
- Capacity range
- 1,450 up to 65,200 W
- Air quantity
- 900 up to 34,800 m3/h
Casing
- Corrosion-resistant galvanized steel casing with epoxypolyester powder coating RAL 9003.
- Dismountable and openable casing for cleaning and inspecting purposes.
Fan-Motors
- 1 to 4 fans fitted with high-efficiency AC or EC fan motors with incorporated thermal protection.
- Available in 3 fan diameters (275, 315, 350, 450, 500 and 630 mm) drawing through the coil.
- Motors with external rotor for F31 and F35 models.
- Power supply 230/1/50-60.
- Fan motors are wired to a central connection box.
Options
- Electric defrost.
The stainless steel defrost elements are connected to dedicated terminal box. - Driptray heater.
- Fan shroud heater.
- Corrosion protection: precoated aluminium fins.
- EC fan motors: single speed for F27, dual speed or 0–10 V control input (0-10) for F31 and F35.
- Driptray insulation.
- Suction hood.
JET STREAMER®
- LU-VE patented the JETSTREAMER® directional grill.
- The innovative design of its profile provides:
- Uniform distribution of airflow through the coil.
- Significant increase in air quantity, both with frostfree coil (+4 to +9%) and with frost on the coil (+7 to +15%).
- The improvement in air quantity during the frosting stage guarantees superior capacity and +25% air throw.
Coil
- The very high-efficiency TURBOCOIL® heat exchangers have the best power/cost ratio obtainable.
- High-efficiency TURBOFIN® aluminum fins with special configuration of the louvre profile to reduce dehumidification and frost formation.
- High-efficiency small-diameter copper tubes with internal helical grooving, designed for optimal evaporation of the new refrigerant fluids.
- Standard fin spacings 4.5, 6, 7, 7.5 and 10 mm.
Certifications
- The LUVE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations. LUVE participates in the ECP program for HE. Check ongoing validity of certificate:
www.eurovent-certification.com
