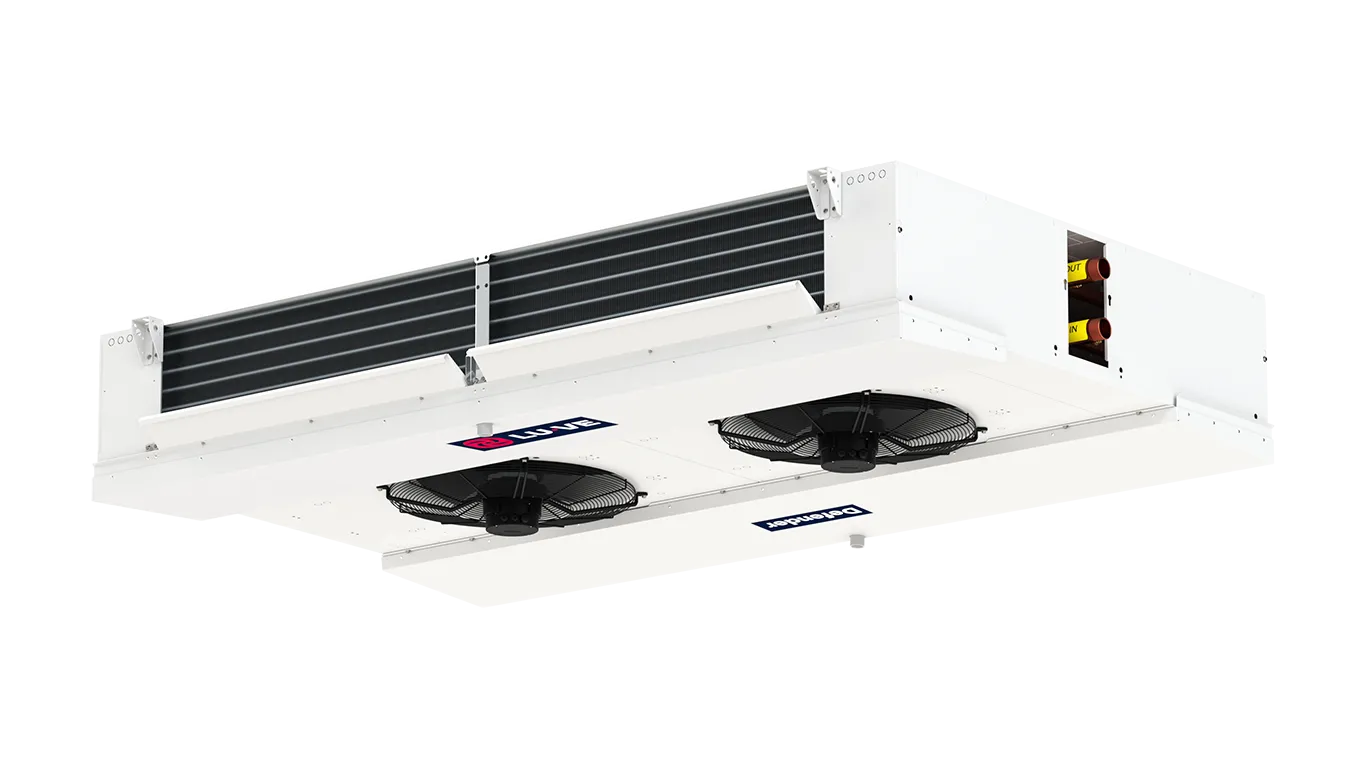

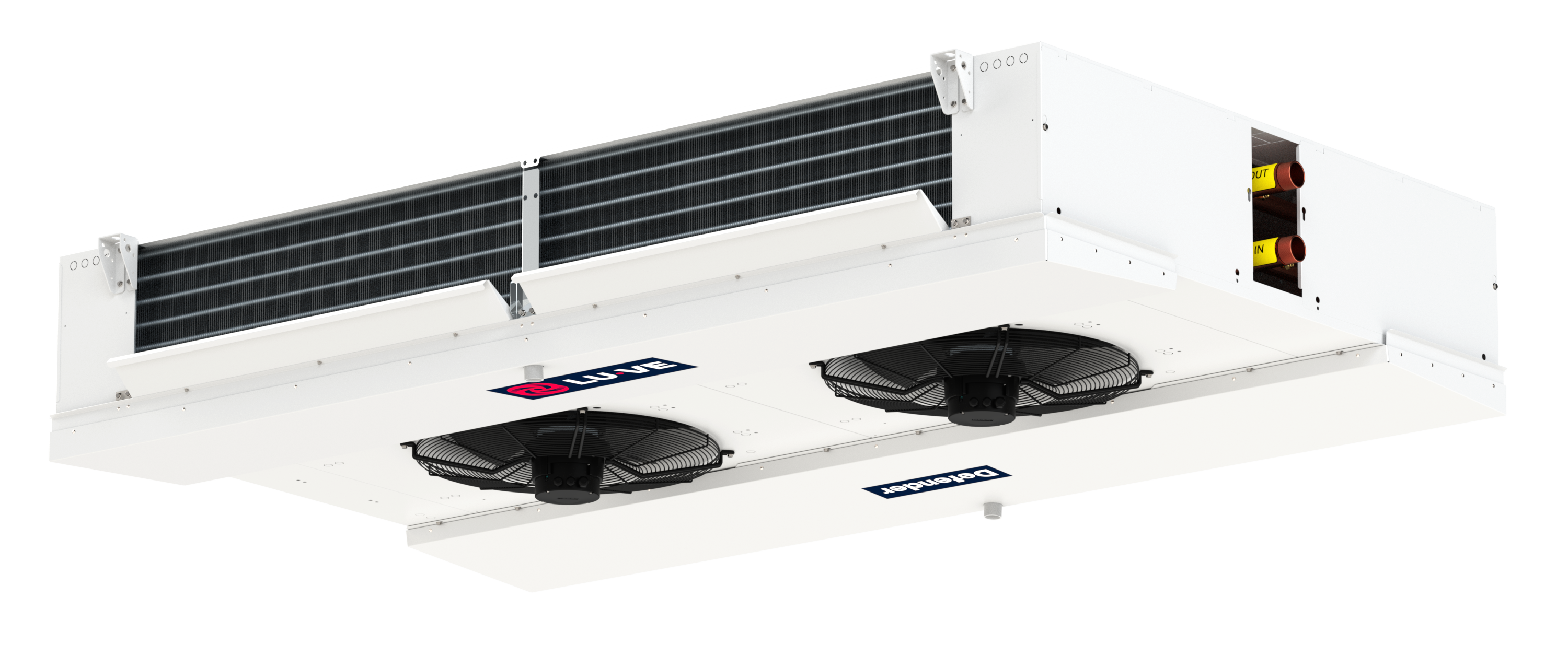

Hi-tech dual discharge industrial air coolers
Versatility engineered for every cold room
Defender CD
Defender CD
Defender delivers versatile performance for industrial cooling and freezing applications in medium/large cold rooms.
Designed for multi-refrigerant flexibility (HFC, ammonia, CO₂ and brine), it offers low noise, low refrigerant charge, and superior efficiency with axial fans.
The Defender CD platform provides a wide selection of configurations and extensive options, empowering you to choose the ideal model tailored precisely to your needs.
Consultant
Defender CD models provide Eurovent-certified performance and versatile dual-discharge configurations for precise industrial cold room designs across HFC, ammonia, CO₂, and brine. Comprehensive documentation – including drawings, wiring diagrams and selection software – supports accurate calculations. Multiple fin spacings (4.5-10 mm), defrost options, fan sizes and coil configurations enable tailored flexibility for any application.
System Integrator
Defender’s modular design with 1-4 fans (450-630 mm AC/EC) simplifies integration into diverse cold room systems. Low-profile footprint and customizable connections (top connections for brine units) fit tight ceiling spaces while maintaining uniform airflow coverage. Pre-assembled options like insulated drain trays and hinged access reduce onsite commissioning time across all refrigerant types.
General Contractor
Defender CD offers fast ceiling installation with pre-tested, leak-charged units and transport-optimized packaging for medium/large cold rooms. Low-profile design maximizes usable cold room height; robust epoxy RAL9003 casing withstands industrial environments. Hinged components and mounting brackets minimize onsite work and ensure quick commissioning.
Dealers / OEMs
Full technical resources – DWG drawings, wiring schemes, and product docs – streamline sales support. Plair configurator generates fast, branded quotes including all technical details and options.
End User
Defender CD delivers reliable, low-noise cooling with Eurovent-backed performance and 2-year guarantee. Low refrigerant charge, energy-efficient AC/EC fans, and minimal defrost needs reduce operating costs. Efficient spare parts service keeps systems running.
Service Provider
Hinged drain tray provide easy access for cleaning and maintenance. Centralized wiring, dedicated spares lists, and online manuals enable fast repairs.
Not your profile?
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
- Defender CD dual discharge maintains optimum climate conditions – minimal defrost via TURBOFIN louvres, high hygiene access through hinged panels.
- Gentle airflow prevents dehydration in agricultural storage and packaged goods.
- Dual airflow for uniform coverage in medium/large cold rooms.
- Easy cleaning with hinged fans and drain trays – essential for high-turnover food processing and freezing environments.
- Ideal capacity-to-air ratio and low profile
- Low noise fans improve worker comfort; low refrigerant charge enhances safety and sustainability.
Data Center / Big Data Cooling
- Efficient, scalable dual discharge cooling for server farms, telecom sites and technical rooms.
- Optimized for indirect cooling in IT infrastructures in grey areas.
- Modular 1-4 fans with multiple diameters range integrates seamlessly in new builds or retrofits.
- Material and coating options for robust, corrosion-resistant reliability.
- High-efficiency EC fan options: quiet operation, energy savings, low-maintenance and improved PUE.
- Accessibility and transport features make installation fast and safe.
Technical Highlights
- Dual discharge industrial air cooler with axial fans blowing through the coils.
- Cooling capacity (SC2): from 6 kW up to 92 kW , air volumes 4,600 to 45,200 m3/h.
- High-efficiency small-diameter copper tubes with internal helical grooving.
- Copper tubes with TURBOFIN aluminium fins. Multiple fin spacing options (4.5 up to 12 mm). Stainless steel tubes for ammonia.
- EC or AC fan motors from 450, 500 or 630 mm diameter, 1 to 4 fans per unit.
- Corrosion-resistant galvanized steel casing, epoxy-coated RAL 9003.
- Design pressure: 24 bar for HFC, 22 bar for ammonia and up to 85 bar for CO₂.
- Dedicated series for all main refrigerants: HFC/HFO, ammonia (in both direct expansion and pumped systems), CO₂ and brine.
- Designed for high energy efficiency and low defrost frequency.
- Eurovent certified for verified performance and reliability.
Download Eurovent certificate or Learn more about Eurovent - Configure your ideal solution quickly with our online selection software: Plair – Start your tailored configuration
Plair — Cold Room Calc
Plair is LUVE’s collaborative selection tool for air heat exchangers, designed to simplify configuration and speed up quotation processes.
Our Cold Room Calculator helps you define the correct heat load for cooling and freezing rooms.
Distinctive Technologies
TURBOCOIL heat exchanger
Unique to LUVE, ensures maximum performance and minimized defrost frequency
High efficiency fan motors
State-of-the-art AC and EC fan motors deliver optimum airflow with low energy consumption and compliance with ErP energy efficiency standards.
Wide refrigerant and configuration flexibility, including all industry standards
Advanced defrost systems: electric, hot-glycol, hot-gas
Top Advantages
Low profile design maximizes cold room space utilization
Reliable performance - Eurovent certified, independently tested
Superior energy efficiency
Full refrigerant compatibility
Easy-access, easy-clean – Hinged side panels and drip tray
Technical features
- Main applications
Defender CD are high performance dual discharge industrial air coolers designed for cold rooms in industrial applications - Refrigerant
HFC – CO₂ – NH3 – Brine - Capacity range
6 up to 92 kW - Air volume
4,600 up to 45,200 m3/h - Design pressure
22 up to 45 bar - Fan-motors
CD units are fitted with 1 to 4 axial fans with high efficiency AC or EC fan motors - Fan diameters
ø 450, 500 and 630 mm
- Refrigerant
- HFC – CO₂ – NH3 – Brine
- Capacity range
- 6 up to 92 kW
- Air volume
- 4,600 up to 45,200 m3/h
- Design pressure
- 22 up to 45 bar
Casing
- Corrosion-resistant galvanized steel casing, epoxy coated RAL 9003.
Fan-Motors
- CD units are fitted with 1 to 4 axial fans with high efficiency AC or EC fan motors blowing trough the coil.
- Available in different fan diameters (ø 450, 500 and 630 mm).
- Integrated thermo contacts provide reliable protection against thermal overload.
Options
- Corrosion protection: Alupaint
- Unit cooler switches
- Unit cooler wiring
- Fan switch (IS)
- Insulated drain tray
- Stainless steel casing and coil frame
- Hinged fan shroud
- Electric defrost (E)
- Hot-gas defrost in coil + electric defrost in drain tray (G)
- Hot-gas defrost both in coil and drain tray (GB)
- Hot glycol defrost both in coil and drain tray (HG)
- Draw-trough fan
- Top fan
- AVA connection – for brine application
Design pressure
- Model
- Refrigerant
- Max working pressure
- CDH
- HFC
- 24 bar*
- CDA
- Ammonia
- 22 bar
- CDH CO₂
- CO₂
- 45 bar
- CDW
- Brine
- 24 bar*
*Higher pressure on request
Coil
- Refrigerant
- Fins
- Tubes
- Headers
- HFC
- Al*
- Cu
- Cu
- Ammonia
- Al*
- SS 304**
- SS 304**
- CO₂
- Al*
- Cu
- Cu
- Brine
- Al*
- Cu
- Cu
* Alupaint as optional
**Stainless steel 316 on request
*** increased thickness
Certifications
- The LUVE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations. LUVE participates in the ECP program for HE.
Check ongoing validity of certificate: www.eurovent-certification.com
