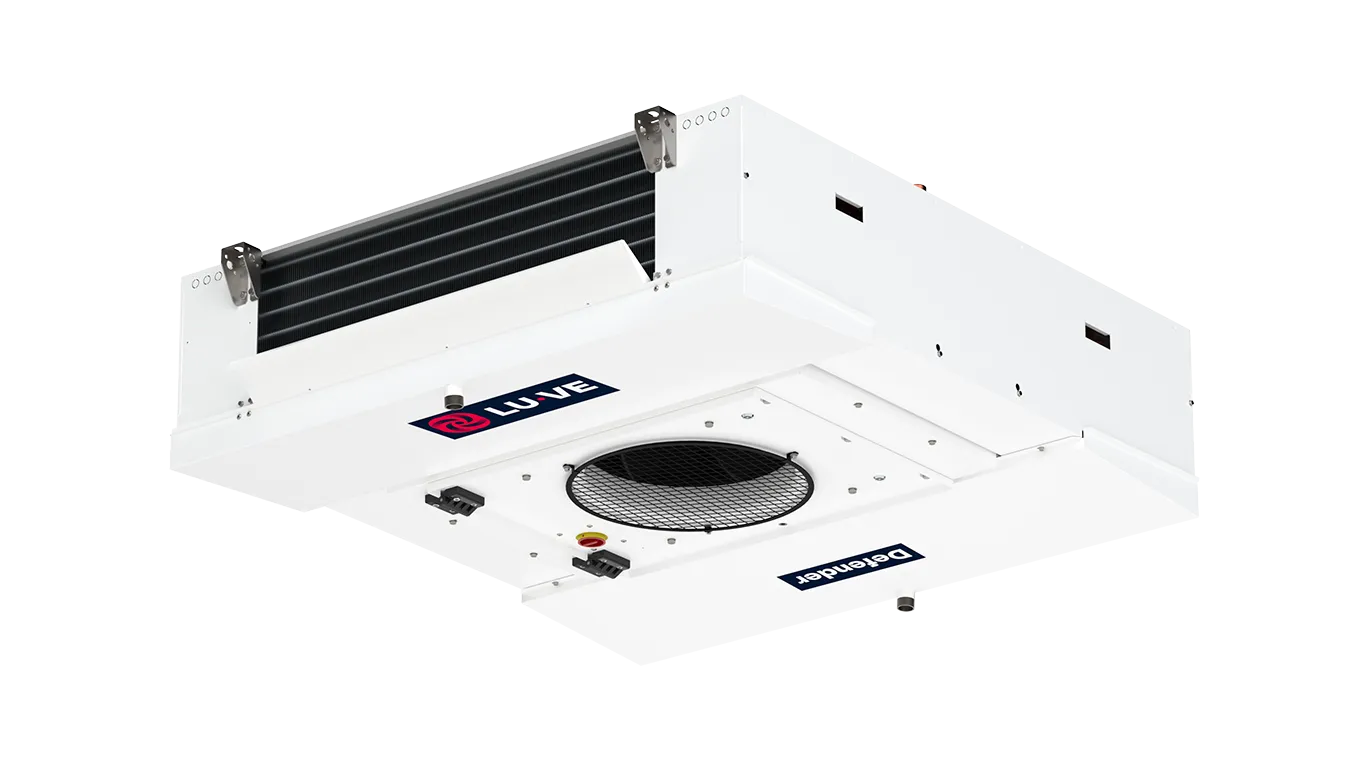

Hi-tech dual discharge industrial air coolers with radial fans
Versatility engineered for every cold room
Defender CRD
Defender CRD
Defender CRD delivers ultra-low noise and versatile performance for occupied cold rooms, where worker comfort matters.
Designed for HFC, CO₂ and brine, it features hinged radial EC fans (630 mm) for minimal noise, low charge, and superior sustainability.
The Defender CRD platform provides a wide selection of configurations and extensive options, empowering you to choose the ideal model tailored precisely to your needs.
Consultant
Defender CRD models provide versatile dual-discharge configurations for precise industrial cold room designs across HFC, CO₂, and brine. Comprehensive documentation – including drawings, wiring diagrams and selection software – supports accurate calculations. Multiple fin spacings (4.5-10 mm), defrost options, hinged radial EC fans and multiple coil configurations enable tailored flexibility.
System Integrator
Defender’s CRD’s modular design with 1-4 radial EC fans (630 mm) simplifies integration into noise-sensitive cold room systems. Low-profile footprint and customizable connections (top connections for brine units) fit tight ceiling spaces while maintaining uniform airflow coverage. Pre-assembled options like insulated drain trays and wired isolator switches reduce onsite commissioning time across all refrigerant types.
General Contractor
Defender CRD offers fast ceiling installation with pre-tested, leak-charged units and transport-optimized packaging for medium/large cold rooms. Low-profile design maximizes usable cold room height; robust epoxy RAL9003 casing withstands industrial environments. Hinged fan access for minimized onsite work and quick commissioning.
Dealers / OEMs
Full technical resources – DWG drawings, wiring schemes, and product docs – streamline sales support. Plair configurator generates fast, branded quotes including all technical details and options.
End User
Defender CRD delivers reliable, ultra-low noise cooling with 2-year guarantee for occupied cold rooms. Low refrigerant charge, radial EC fans and minimal defrost needs reduce operating costs. Efficient spare parts service keeps systems running.
Service Provider
Hinged drain tray and radial fans provide easy access for cleaning and maintenance. Centralized wiring, dedicated spares lists and online manuals enable fast repairs.
Not your profile?
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
- Defender CRD EC radial fans improve worker comfort and deliver ultra-low noise
- Gentle airflow prevents dehydration in agricultural storage, packaged goods, and high-humidity freezing applications.
- Dual discharge ensures uniform coverage across medium/large cold rooms for optimal product preservation.
- Easy cleaning with hinged radial fans and drain trays – perfect for high-turnover food processing environments.
- Ideal capacity-to-air ratio with low profile design, maximizing storage space.
Technical Highlights
- Dual discharge industrial air cooler with radial fans blowing through the coils.
- Cooling capacity (SC2): from 15 kW up to 122 kW, air volumes 4,600 to 45,200 m3/h.
- High-efficiency small-diameter copper tubes with internal helical grooving.
- Copper tubes with TURBOFIN aluminium fins. Multiple fin spacing options (4.5 up to 10 mm). Stainless steel tubes for ammonia.
- EC fan motors with 630 mm diameter, 1 to 4 fans per unit.
- Corrosion-resistant galvanized steel casing, epoxy-coated RAL 9003.
- Design pressure: 24 bar for HFC and brine and up to 85 bar for CO₂.
- Dedicated series for all main refrigerants: HFC/HFO, CO₂ and brine.
- Designed for high energy efficiency and low defrost frequency.
- Configure your ideal solution quickly with our online selection software: Plair – Start your tailored configuration
Plair — Cold Room Calc
Plair is LUVE’s collaborative selection tool for air heat exchangers, designed to simplify configuration and speed up quotation processes.
Our Cold Room Calculator helps you define the correct heat load for cooling and freezing rooms.
Distinctive Technologies
Radial EC fans state-of-the-art radial EC fan motors deliver ultra-low noise with low energy consumption
TURBOCOIL heat exchanger
Unique to LUVE, ensures maximum performance and minimized defrost frequency.
Wide refrigerant and configuration flexibility, including all industry standards
Advanced defrost systems: electric, hot-glycol, hot-gas
Top Advantages
Superior energy efficiency with EC radial fans and low refrigerant charge
Low profile design maximizes cold room space utilization
Full refrigerant compatibility
Easy-access, easy-clean – Hinged side panels, fans and drip tray
Technical features
- Main applications
Defender CRD are dual discharge air coolers with radial EC fans for cooling and freezing applications in medium to large cold rooms - Refrigerant
HFC, CO₂ and Brine - Capacity range
15 up to 122 kW - Air volume
4,600 up to 45,200 m3/h - Design pressure
24 up to 45 bar - Fan-motors
1 to 4 radial EC fans - Fan diameters
ø 630 mm
- Refrigerant
- HFC, CO₂ and Brine
- Capacity range
- 15 up to 122 kW
- Air volume
- 4,600 up to 45,200 m3/h
- Design pressure
- 24 up to 45 bar
Casing
- Corrosion-resistant galvanized steel casing, epoxy coated RAL 9003.
Fan-Motors
- 1 to 4 radial EC fans
- Fan diameters 630 mm.
- Integrated thermo contacts provide reliable protection against thermal overload.
Options
- Corrosion protection: Alupaint
- Unit cooler switches
- Unit cooler wiring
- Fan switch (IS)
- Insulated drain tray
- Stainless steel casing and coil frame
- Electric defrost (E)
- Hot-gas defrost in coil + electric defrost in drain tray (G)
- Hot-gas defrost both in coil and drain tray (GB)
- Hot glycol defrost both in coil and drain tray (HG)
- Top fan
- AVA connection – for brine application
Design pressure
- Model
- Refrigerants
- Max working pressure
- CRDH
- HFC
- 24 bar*
- CRDH CO2
- CO2
- 45 bar
- CRDW
- Brine
- 24 bar*
*Higher pressure on request
Coil
- Refrigerants
- Fins
- Tubes
- Headers
- HFC
- Al*
- Cu
- Cu
- CO2
- Al*
- Cu
- Cu
- Brine
- Al*
- Cu
- Cu
* Alupaint as optional
- High-efficiency TURBOFIN® aluminum fins with special configuration of the louvre profile to reduce dehumidification and frost formation.
- High-efficiency small-diameter copper tubes with internal helical grooving, designed for optimal evaporation of the refrigerant fluids. Stainless steel tubes for ammonia refrigerant.
- Standard fin spacings 4.5, 6, 7.5 and 10 mm.
Certifications
- The LUVE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations. LUVE participates in the ECP program for HE. Check ongoing validity of certificate*:
www.eurovent-certification.com
*Ammonia and Brine refrigerants are not covered by Eurovent certification
