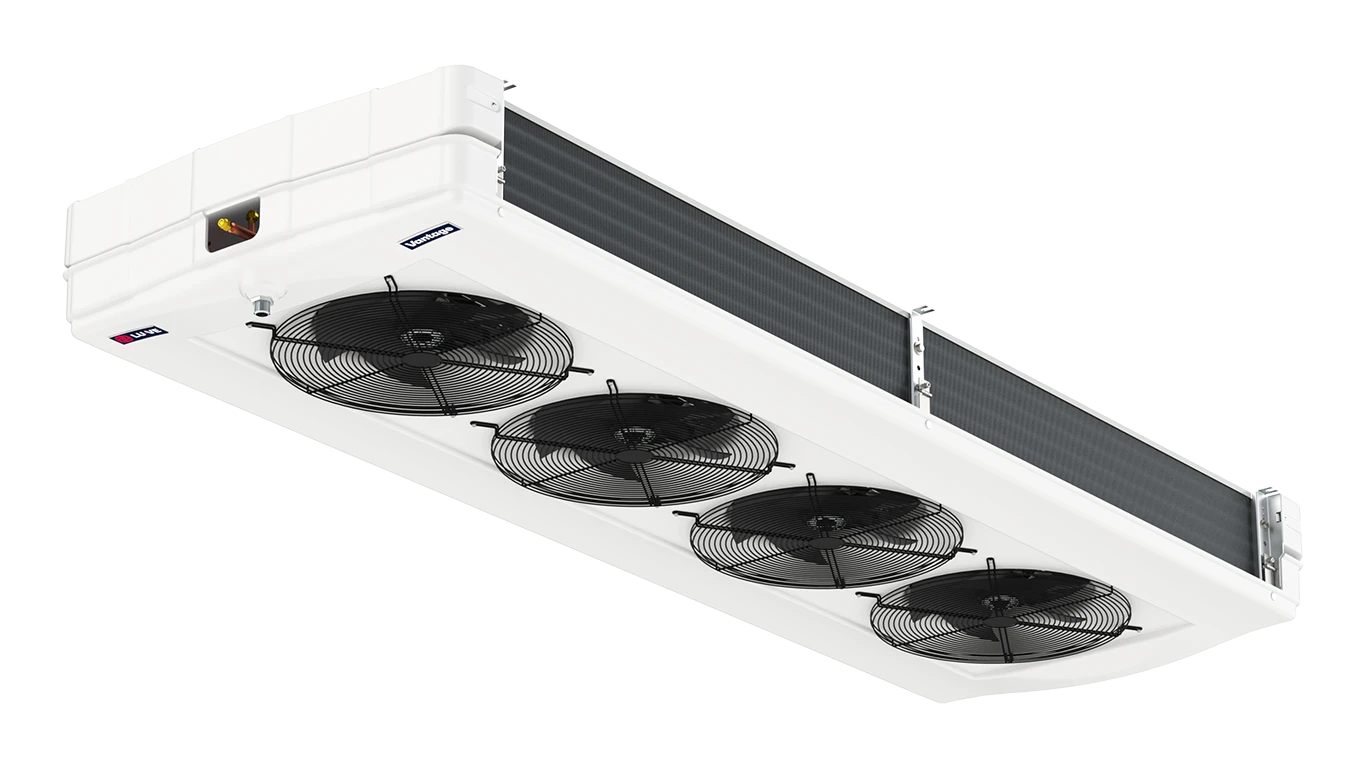

H-Tech Dual Discharge Commercial Air cooler
Efficient cooling made simple
Vantage FHD
Vantage FHD

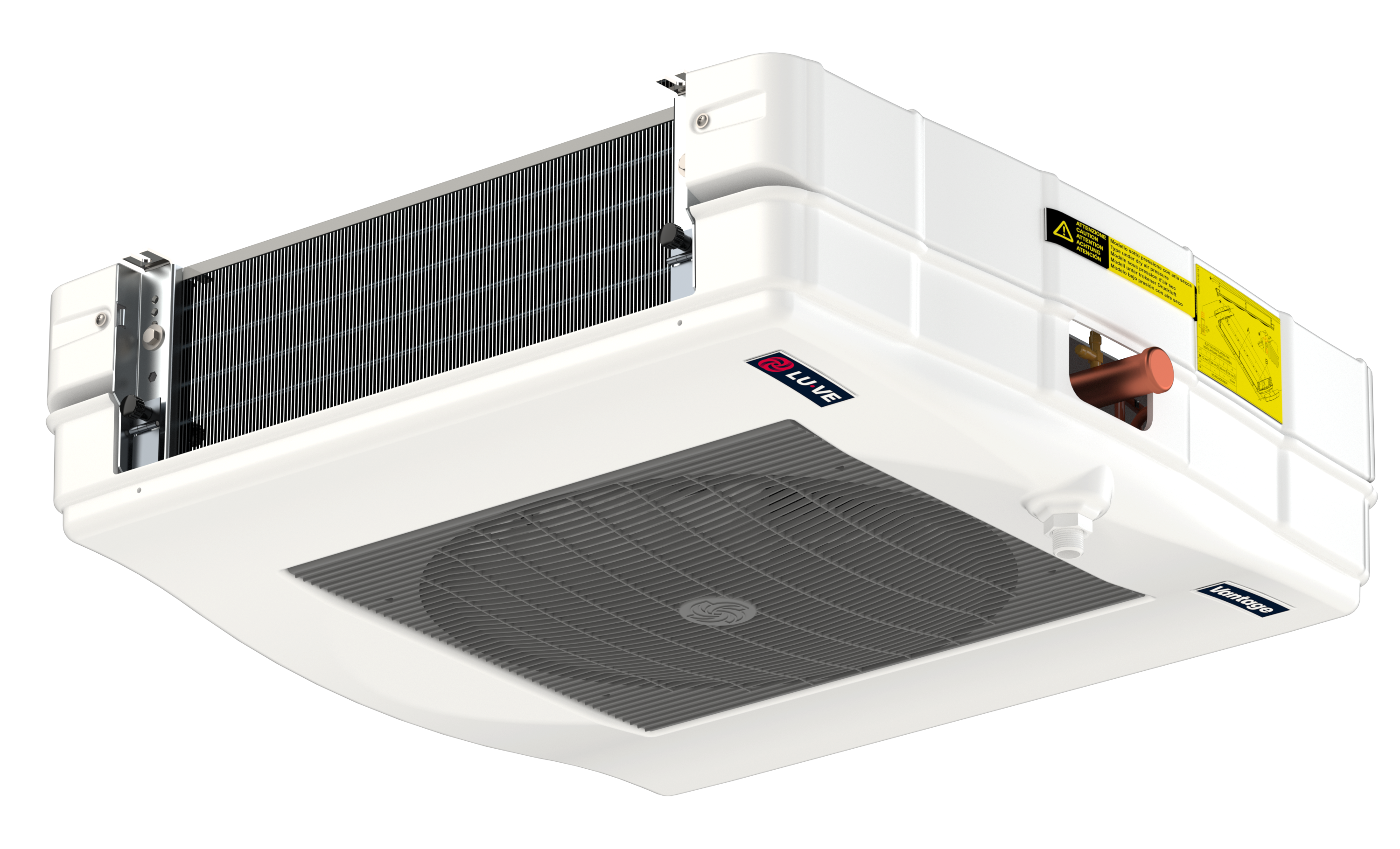

Dual discharge commercial air coolers designed to combine comfort conditions with reliable product conservation in small to medium-sized cooling, freezing and working rooms. Low air velocity and low noise make Vantage FHD especially suitable for refrigerated working and processing rooms.
Consultant
Vantage FHD provides certified performance data essential for precise design of working room refrigeration systems. Eurovent certified performance ensures verified capacity data while comprehensive technical documentation supports accurate system calculations. Dual discharge configuration and multiple fin spacing options offer optimized design flexibility for operator comfort and product protection.
System Integrator
Vantage FHD’s dual discharge design and brine compatibility simplify integration into commercial refrigeration systems requiring comfortable working conditions. The compact footprint and Safeshell casing enable easy integration where space is limited. EC fans with dual speed control precisely match system airflow requirements while pre-assembled units reduce onsite commissioning time.
General Contractor
Vantage FHD offers plug-and-play installation optimized for commercial refrigeration projects where working comfort matters. The dismountable Safeshell synthetic casing provides easy cleaning and maintenance access. Factory-tested units with reinforced construction withstand the demands of occupied processing environments.
Dealers / OEMs
Complete technical resources streamline sales and project support for Vantage FHD units. Dealers and OEMs enjoy full access to DWG drawings, wiring diagrams and product documentation complemented by the Plair configurator for fast, branded quotations and technical selections across HFC, CO₂ and brine configurations.
End User
Vantage FHD delivers reliable, energy-efficient cooling optimized for occupied working rooms. Low air velocity and selectable EC fan speeds ensure operator comfort while high-efficiency TURBOCOIL exchangers minimize defrost frequency. The Safeshell casing durability ensure long-term operating reliability.
Service Provider
Vantage FHD’s service-friendly Safeshell design minimizes maintenance time and maximizes system uptime in working environments. Dismountable casing facilitates easy coil inspection and cleaning. Centralized wiring and comprehensive online manuals plus spare parts lists ensure straightforward service.
Not your profile?
What profile fits you best?
Select Your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
- Efficient cooling for food processing areas, packing rooms and preparation zones where operator comfort is essential.
- High-efficiency coils with TURBOFIN aluminum fins for superior heat transfer and reduced defrost frequency.
- EC fans optimize capacity VS noise ration.
Data Center / Big Data Cooling
- Compact dual discharge design fits tight technical spaces
- Brine cooler optimized for indirect cooling applications in IT and telecom infrastructure in grey areas.
- High-efficiency EC fan options: quiet operation, energy savings, low-maintenance and improved PUE.
- Low noise levels, suitable for occupied areas.
Technical Highlights
- Dual discharge configuration, with fans blowing through coils.
- Cooling capacity (SC2): from 1.5 kW up to 14.6 kW
- Copper tubes with TURBOFIN aluminium fins. Multiple fin spacing options (3 up to 7 mm).
- Dual speed EC fan motors with 350 mm diameter, 1 to 4 fans per unit. 0-10 V control input available as optional.
- New Safeshell reinforced synthetic casing: highly resistant, dismountable and openable for cleaning and inspection.
- Dedicated series for HFC, CO₂ and brine.
Discover our A2L refrigerants dedicated series - Dedicated series for HFC, CO₂ and brine.
- Eurovent certified for verified performance and reliability.
Download Eurovent certificate - Configure your ideal solution quickly with our online selection software: Plair – Start your tailored configuration
Plair — Cold Room Calc
Plair is LUVE’s collaborative selection tool for air heat exchangers, designed to simplify configuration and speed up quotation processes.
Our Cold Room Calculator helps you define the correct heat load for cooling and freezing rooms.
Distinctive Technologies
TURBOCOIL heat exchanger
Unique to LU-VE, ensures maximum performance and minimized defrost frequency.
High efficiency EC fan motors fan motors
State-of-the-art EC fan motors deliver optimum airflow with low noise and energy consumption, in compliance with ErP energy efficiency standards.
Top Advantages
Reliable performance, Eurovent certified, independently tested.
Ideal for refrigerated working and processing rooms
Low air velocity and noise level.
Extremely low internal volume
Reducing refrigerant charge
Easy-access, easy-clean
Fully accessible casing
Technical features
- Main applications
FHD is the range of dual discharge commercial unit coolers - Refrigerant
A2L, HFC, CO2 and Brine - Capacity range
1,470 up to 14,570 W - Air quantity
1,400 up to 8,000 m3/h - Design pressure
10 up to 60 bar - Fan-motors
1 to 4 fans fitted with EC fan motors available in two fan speeds - Fan diameters
ø 350 mm
- Refrigerant
- A2L, HFC, CO2 and Brine
- Capacity range
- 1,470 up to 14,570 W
- Air quantity
- 1,400 up to 8,000 m3/h
- Design pressure
- 10 up to 60 bar
Casing
- Newly designed, highly resistant casing in reinforced synthetic “Safeshell” material.
- Dismountable and openable casing for cleaning and inspecting purposes.
Fan-Motors
- 1 to 4 fans fitted with EC fan motors available in two fan speeds (noise levels):
- S = High Speed (1100 RPM)
- L = Low Speed (870 RPM)
- From 1 to 4 fans Ø 350 mm. Power supply 230/1/50-60.
- Fan motors wired to connection box.
Options
- Electric defrost (E).
The stainless steel defrost elements are connected to dedicated terminal box - EC fan motor with 0–10 V control input (0-10)
- Pre-coated aluminium fins (AP)
Design pressure
- Refrigerants
- Max working pressure
- HFC*
- 24 bar
- CO2
- 60 bar**
- Brine
- 10 bar*
* Fluid group 2 according to EN 378; ** 85 bar in special execution
Coil
- The very high-efficiency TURBOCOIL® heat exchangers have the best power/cost ratio obtainable.
- High-efficiency TURBOFIN® aluminum fins with special configuration of the louvre profile to reduce dehumidification and frost formation.
- High-efficiency small-diameter copper tubes with internal helical grooving, designed for optimal evaporation of the new refrigerant fluids.
- Standard fin spacings 3, 4.5 and 7 mm.
Certifications
- The LU-VE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations. LU-VE participates in the ECP program for HE. Check ongoing validity of certificate*:
www.eurovent-certification.com
*Brine refrigerant is not covered by Eurovent certification
