Hi-Duty Industrial V Shape Liquid Cooler
Ultimate versatility for high-performance industrial cooling
Alfa V VDD
Alfa V VDD
The Alfa-V VDD series redefines flexibility: its design perfectly adapts to a broad spectrum of demanding applications: from refrigeration to HVAC, industrial process cooling, power generation and data centers. This all-in-one solution delivers premium cooling performance, outstanding durability, and exceptional customization, tailored to your operational needs.
For System Integrators
Simplify system management with LUVE’s modular, scalable coolers capable of supporting diverse cooling needs with customized solutions both on mechanical, hydraulic and electrical interface. Our project management team and global manufacturing footprint facilitate multi-site deployments.
Consultants
Access technical data, drawings, calculation tools, and dedicated project support to ease complex decisions. Ensure every cooler meets your performance expectations with LUVE’s Eurovent Certification and testing capabilities in our own large climatic chamber.
Service providers
Get easy access to technical documentation in our Members Area. Identify and order spare parts efficiently backed by commercial support to ensure swift repair and maintenance.
Dealers / OEMs
Quickly access comprehensive product documents in LUVE’s Members Area. Manuals, drawings, wirings and product leaflets. Use the Plair configurator to generate personalized technical selections and quotations branded with your identity.
End Users
Rely on proven and certified product performance, with additional testing options in our climatic chamber. Benefit from digital spare parts catalogs, commercial support, and our comprehensive aftersales portal detailing service options and spare parts availability.
General contractors
Enjoy hassle-free installation with LUVE’s fully factory assembled plug & play and easy-to-install solutions. Full project support available from feasibility to commissioning with on-site assistance from our service experts.
Not your profile?
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
Solutions for cold rooms, food processing, and temperature-sensitive logistics.
- Wide capacity range to meet any project size.
- Robust, corrosion-resistant construction.
- Easy-to-clean industrial coil.
- Eurovent certification for guaranteed cold chain reliability.
- PLAY THE TOUGHNESS VIDEO
Air Conditioning (HVAC)
Designed for commercial, industrial, and residential climate control.
- Excellent capacity-to-footprint ratio
- Energy efficient and suitable for Free cooling.
- Ultra-quiet operation through advanced aerodynamic design.
- Flexible installation: rooftop, commercial or residential area.
Industrial Process Cooling
Engineered for precise temperature control in plastic, general manufacturing process, paper, chemical and pharmaceutical processes. Electrical furnace cooling, glass and steel mill cooling.
- Stainless steel tubes and casing available for aggressive environments.
- Wide compatibility with non-corrosive process fluids.
- Industrial-grade R-Fin for efficient, hygienic maintenance.
- IEC fan-motor package configurations on request
Power Generation / Energy
Purpose-built for power transmission, generation and clean energy sectors.
- Stainless steel tubes and casing available for superior durability in harsh settings.
- Rugged, compact design for efficient transport and on-site integration.
- Industrial-grade R-Fin for enhanced durability and easier cleaning. DISCOVER THE TECHNOLOGY
- Corrosion resistance up to CX, suitable for marine and offshore environments.
- Extended scope of supply and tailor made product.
Data Center / Big Data Cooling
Solutions for server farms and mission-critical IT environments.
- Modular, scalable design for rapid deployment and capacity expansion.
- Highly efficient free cooling.
- Factory pre-assembled (Plug&Play) for fast commissioning.
- Reliable, continuous operation in high-density setups.
- Minimized total cost of ownership.
Technical Highlights

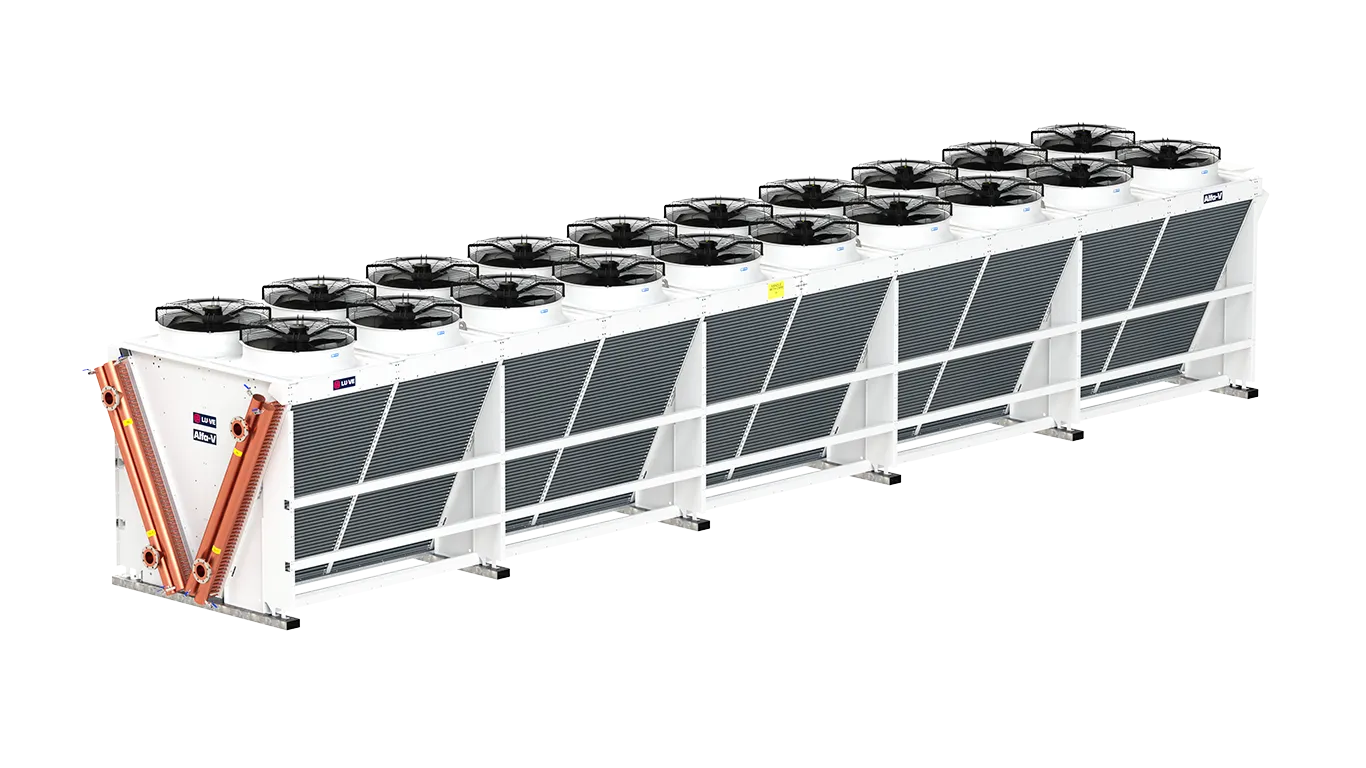

- Heavy duty V-shape construction for durable performance in diverse industrial environments.
- Cooling capacity: 100 to 2,000 kW (EN1048 standard).
- Innovative coil design: smooth Copper tubes (ø 12 and 16 mm) or stainless steel tubes, Aluminum or AlMg fins and exclusive industrial-grade R-Fin for enhanced durability and easier cleaning (discover the technology).
- Casing and frame in galvanized steel with standard corrosion resistance up to C5-VH and on request up to CX; stainless steel casing also available for specific environments.
- AC/EC fan motors in three diameters (800/910/1000 mm), different noise levels, ErP compliant, with broad multi-voltage compatibility; IEC fan-motor packages available on request.
- Modular range: configure precisely to your cooling requirements for complete operational flexibility.
- Transport: design to fit the standard 40” and 45” HC container. No need for expensive wood or seaworthy packing.
- Eurovent certified for guaranteed performance and reliability.
Download Eurovent certificate or Learn more about Eurovent - Online configuration: Plair – Start your tailored configuration
- Extensive options portfolio for tailored solutions.
Configure with Plair
The free collaborative tool to configure air heat exchangers.
The latest version of our selection software Plair is available online.
Distinctive Technologies
Industrial-grade R-Fin
Industrial-grade R-Fin: for enhanced durability and easier cleaning.
DISCOVER THE TECHNOLOGY
Stainless steel tubes and casing

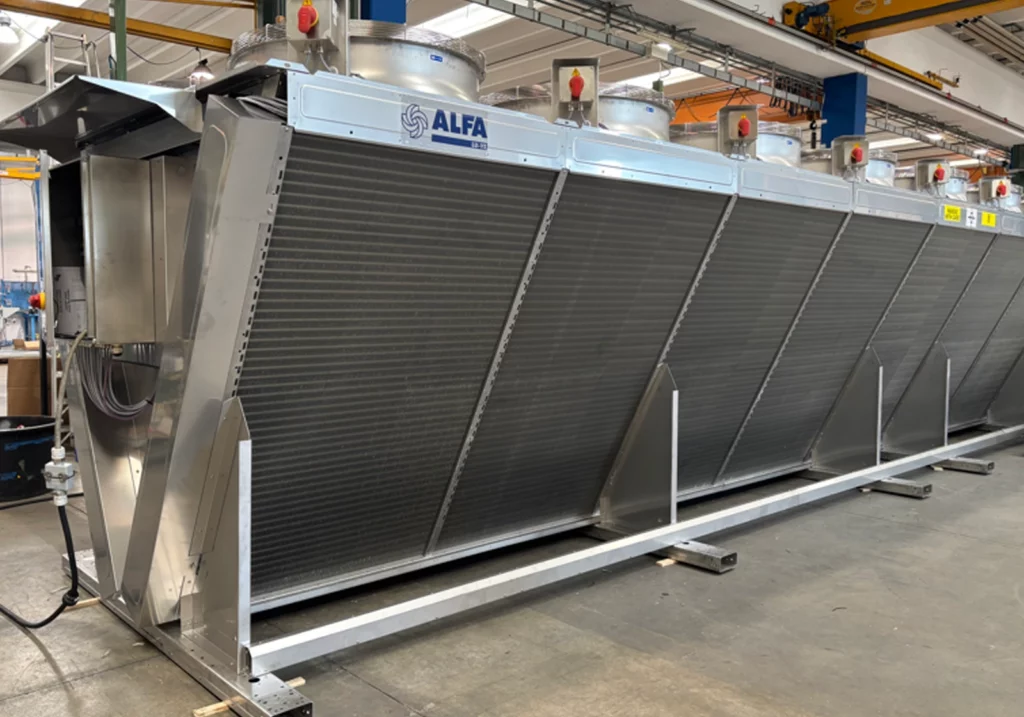

Stainless steel tubes and casing: available on request.
Corrosion Resistance
Corrosion resistance up to CX: maximum protection for offshore, marine, and industrial atmospheres.
Mechanical design
Mechanical design: suitable for highly demanding site conditions (wind, snow, earthquake) and, on request, extreme or custom conditions.
Top Advantages
Reliable performance
Reliable performance, Eurovent certified Download
Reduced energy consumption
Reduced energy consumption and operating costs.
Market-leading noise levels
Market-leading noise levels and compact size.
Customization
Advanced customization options.
Easy-to-clean
Easy-to-clean industrial coil.
Product Overview and Options
For full technical details and available options, please refer to the product leaflet or brochure in the Documentation tab.
Stainless steel tubes
Stainless steel tubes: available on request.

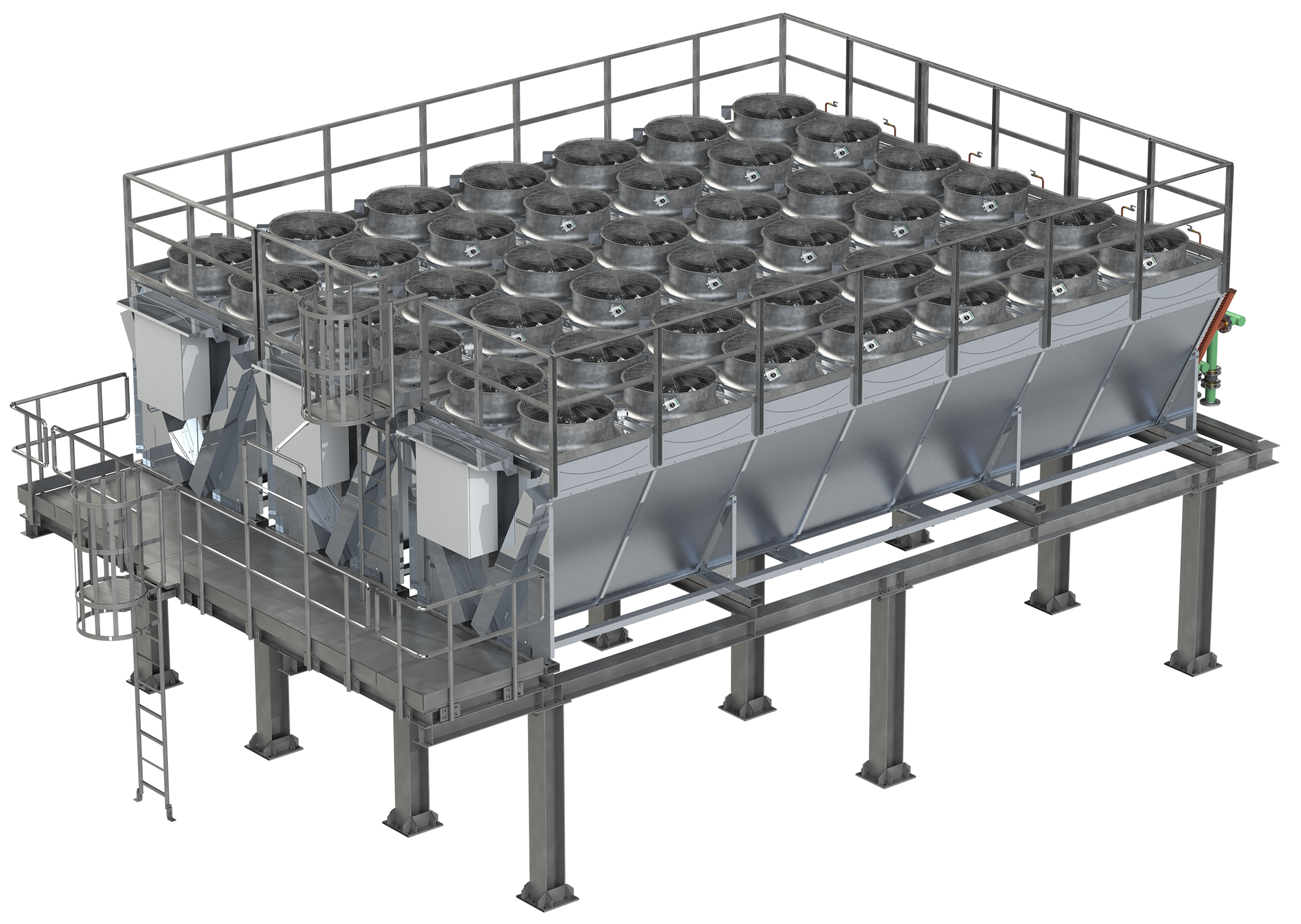

Platform package
Support structure including ladder and walkways, customized electrical cabinets and IEC fans
Technical features
- Main applications
Alfa-V dry/liquid cooler (VDD = standard Cu tube, VDD6 = 5/8″ Cu, VDDY = 5/8″ SS304) - Refrigerants
All liquids that do not corrode copper - Capacity range
100 up to 1,800 kW - Design pressure
10 bar - Fan-motors
ErP compliant fan AC & EC motors and different noise levels - Fan diameters
ø 800, 910 and 1000 mm - Fin spacing
Standard fin spacing 2, 2.1, 2.3, 2.5 and 3 mm - Certification
All VDD dry/liquid cooler models are “Eurovent Certify All” certified
- Refrigerants
- All liquids that do not corrode copper
- Capacity Range
- 100 up to 1,800 kW
- Design pressure
- 10 bar
Casing
- Frame construction provides high rigidity for protection against vibration and thermal expansion
- Casing, supports and frame made of corrosion resistant galvanized steel (class C4-H)
- Separated fan sections and removable fan rings
Fan-Motors
- ErP compliant fan AC & EC motors and different noise levels
- Motors with external rotor, protection class IP54 according to DIN 40050
- AC power supplies 400/50/3, 400/60/3 and 460/60/3 with integrated thermo contacts to provide reliable protection against thermal overload
- EC power supply 380-480/50-60/3
Options
- Fin spacing up to 3.0 mm
- Coil corrosion protection
- Epoxy coated aluminium fins (EP)
- F-coat (FC)
- Seawater resistant aluminium AlMg (SWR)
- Coil protection grid (GR)
- Spray Water kit (KW)
- Water Spray System including pumping station (SWS)
- Casing coated RAL 9002
- Container skid (SK)
- Vibration dampers (VD)
- Special fan motors
- Protection class IP55
- High-temperature motors
- Electrical accessories
- Isolating switch (SW)
- EC Motors wired to a common terminal box (CBP=connection box, CBMP=connection box and master controller+pressure signal)
- Switchboard IP54 (BS)
- AC Fan step control cabinet (BSP)
- EC fan speed control cabinet (ICM)
- Basic EC switchboard panel (ECCB)
Design pressure
- 10 bar
- Each heat exchanger is leak tested with dry air
Finned Coil
- The coil design provides excellent heat transfer

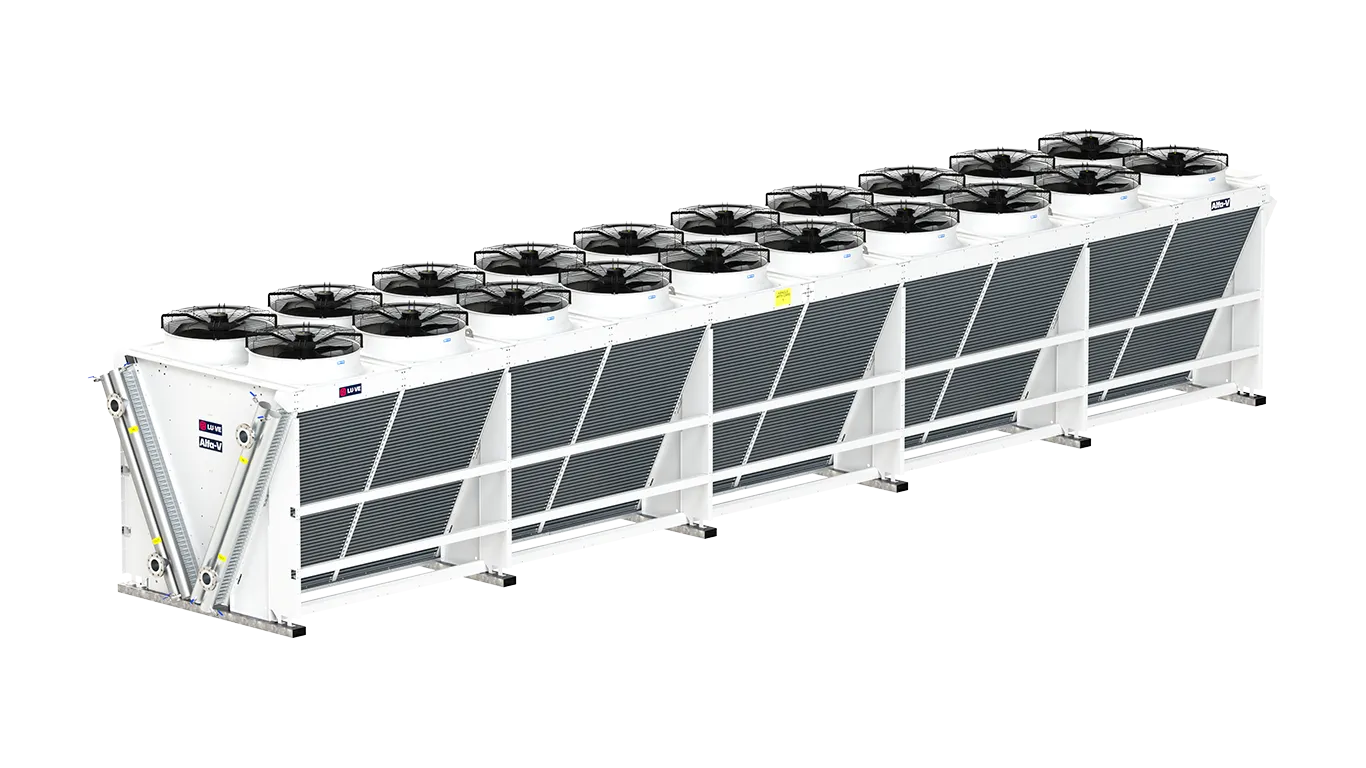

- In standard execution dry coolers are fitted with smooth copper tubing ø 12 and 16 mm (VDD) or stainless steel tubing 16 mm (VDDY)
- Fins in aluminium or sea water resistant AlMg, plain fin design for easy cleaning and long-lasting performance
- Standard fin spacings 2.0, 2.1, 2.3, 2.5, 3.0 mm
Eurovent Certified
- The LUVE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations. LUVE participates in the ECP program for HE.
Check ongoing validity of certificate: www.eurovent-certification.com
