From fresh to frozen with the same passion for perfection
Negative temperature islands and horizontal cabinets
Negative temperature islands and horizontal cabinets

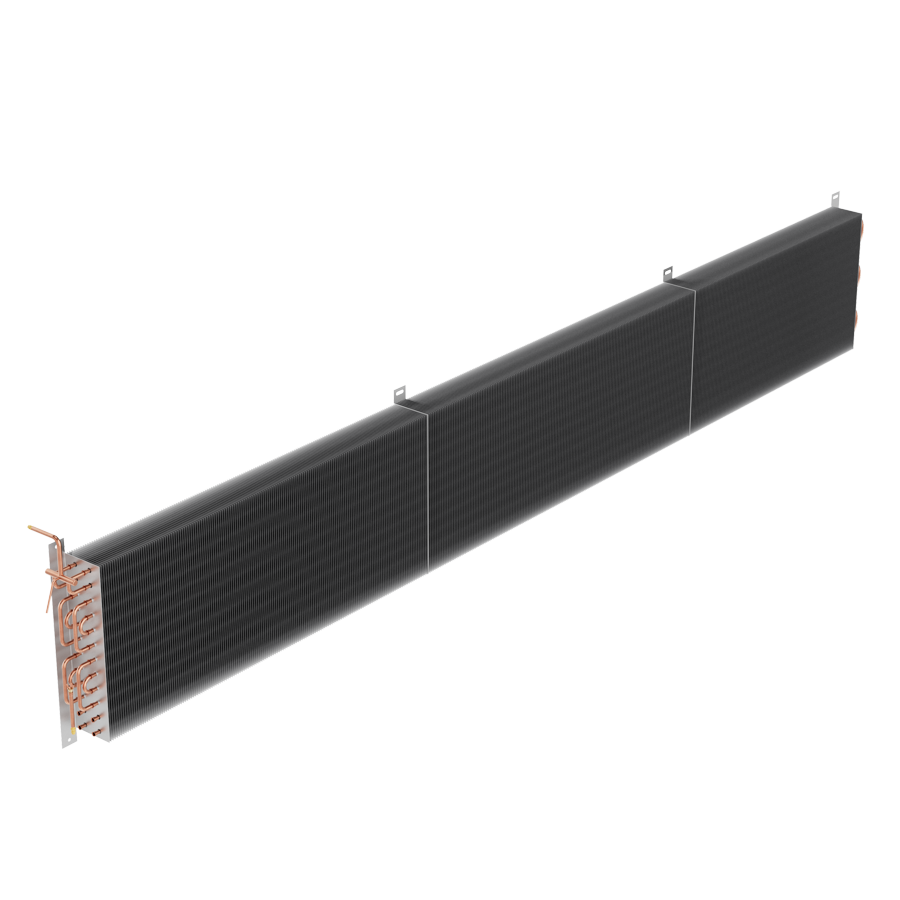

Going from fresh to frozen seems like a very easy task, but there is much more behind it than just a few degrees less! Our heat exchangers for negative temperature applications are engineered to operate with the full range of natural refrigerants.
Specially designed and manufactured to withstand high operating pressure and to preserve their tightness in duty, they are also optimized to deliver best-in-class performance during defrosting.
For negative temperature applications, the defrosting phase is highly critical for both performance and energy consumption. Our evaporators are designed to minimize defrosting time and energy use, thanks to our innovative fin materials and coatings, as well as specific fin shapes and surfaces that have been optimized through decades of experience in the application.
What profile fits you best?
Fin Patterns
| Shape | Dimensions |
|---|---|
 | Φ4 mm 19,05x16,5 |
| Φ5 mm 19,05x16,5 |
| Φ5 mm 20x17,3 |
| Φ6,35 mm 19,05 x 16,5 mm 1/4" OD x 0.75" x 0.65" |
| Φ6,35 mm 25,4 x 22 mm 1/4" OD 1" x 0.866" |
 | Φ6,2 mm 30x30 |
| Φ7 mm 25x21,65 |
| Φ7 mm 25,4x22 |
| Φ7 mm 35x35 |
| Φ7,94 mm 25,40x15,87 5/16" OD 1" x .625" |
| Φ7,94 mm 25x21,65 |
| Φ9,52 mm 25x21,65 |
| Φ9,52 mm 25,4x22 3/8" OD x 1" x 0.866" |
| Φ9,52 mm 25x25 |
| Φ9,52 mm 25,4x25,4 3/8" OD x 1" x 1" |
| Φ9,52 mm 35x35 |
| Φ9,52 mm 40x50 |
| Φ9,52 mm 40x51 |
| Φ12 mm 35x35 |
| Φ12 mm 40x50 |
| Φ12 mm 40x51 |
| Φ12,7 mm 31,75x27,43 1/2" OD x 1.25" x 1.08" |
| Φ16 mm 50x50 |
| Φ16 mm 50x51 |
