From fresh to frozen with the same passion for perfection
Negative temperature vertical cabinets
Negative temperature vertical cabinets

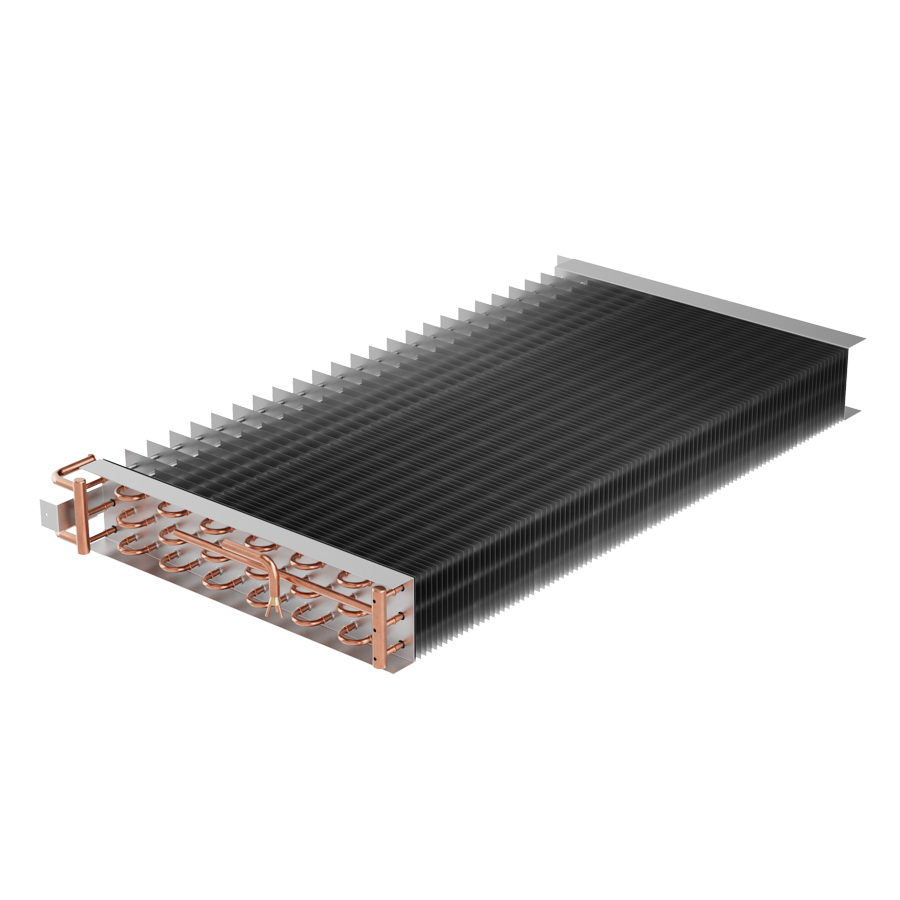

Going from fresh to frozen may seem like a simple task, but there is much more behind it than just a few degrees less. Our heat exchangers for negative temperature applications are engineered to operate with the full range of natural refrigerants.
Specially designed and manufactured to withstand high operating pressure and maintain perfect tightness under all conditions, they are also optimized to deliver best-in-class performance during defrosting.
For negative temperature applications, the defrosting phase is highly critical for both performance and energy consumption. Our evaporators are designed to minimize defrosting time and energy use, thanks to innovative fin materials and coatings, as well as specific fin shapes and surfaces optimized through decades of experience in this application.
What profile fits you best?
Fin Patterns
| Shape | Dimensions |
|---|---|
 | Φ4 mm 19,05x16,5 |
| Φ5 mm 19,05x16,5 |
| Φ5 mm 20x17,3 |
| Φ6,35 mm 19,05 x 16,5 mm 1/4" OD x 0.75" x 0.65" |
| Φ6,35 mm 25,4 x 22 mm 1/4" OD 1" x 0.866" |
 | Φ6,2 mm 30x30 |
| Φ7 mm 25x21,65 |
| Φ7 mm 25,4x22 |
| Φ7 mm 35x35 |
| Φ7,94 mm 25,40x15,87 5/16" OD 1" x .625" |
| Φ7,94 mm 25x21,65 |
| Φ9,52 mm 25x21,65 |
| Φ9,52 mm 25,4x22 3/8" OD x 1" x 0.866" |
| Φ9,52 mm 25x25 |
| Φ9,52 mm 25,4x25,4 3/8" OD x 1" x 1" |
| Φ9,52 mm 35x35 |
| Φ9,52 mm 40x50 |
| Φ9,52 mm 40x51 |
| Φ12 mm 35x35 |
| Φ12 mm 40x50 |
| Φ12 mm 40x51 |
| Φ12,7 mm 31,75x27,43 1/2" OD x 1.25" x 1.08" |
| Φ16 mm 50x50 |
| Φ16 mm 50x51 |
