Over 30,000,000 ST units manufactured using a unique patented method
Tubeless steel condensers

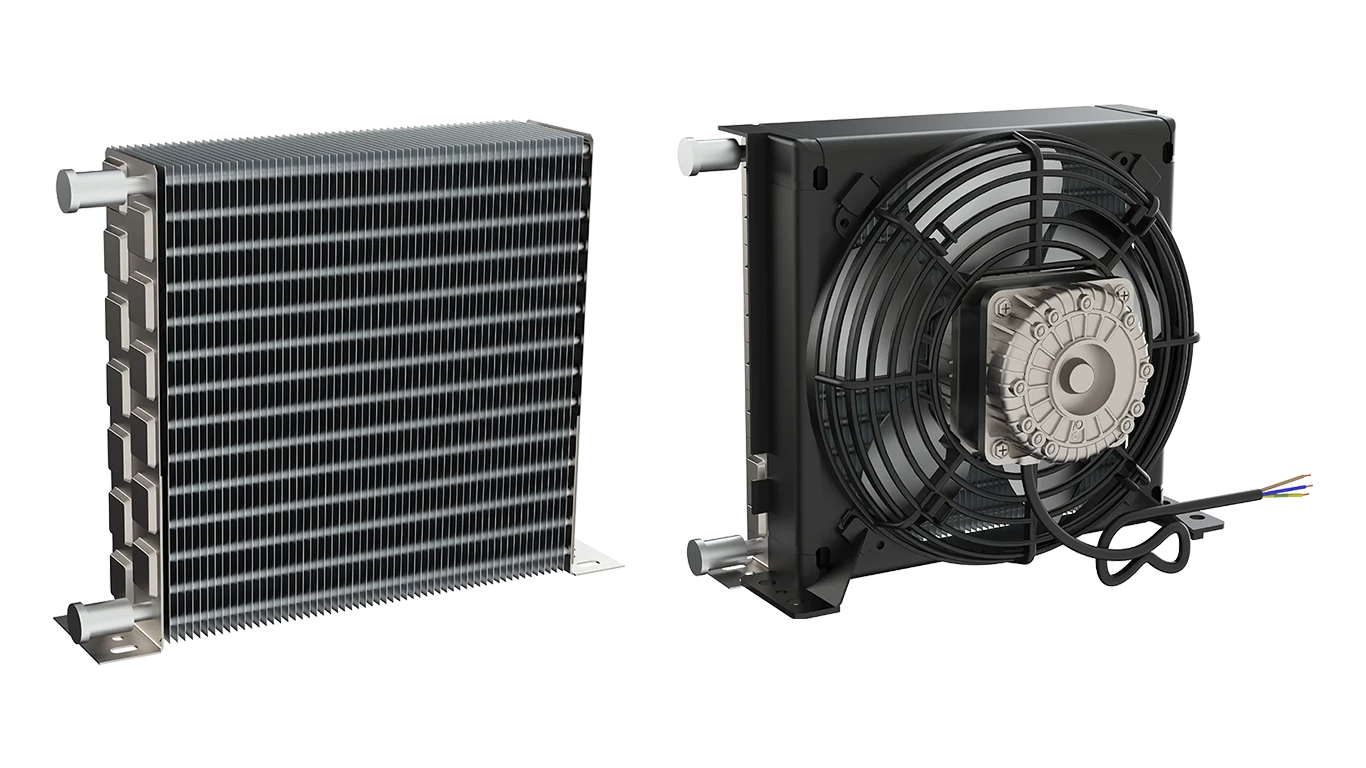

STFT - STVF
STFT - STVF
Over 30,000,000 ST units manufactured using a unique patented method.
High-capacity heat exchangers designed to deliver maximum performance in minimum space. Manufactured in steel with LUVE’s exclusive tubeless technology, they combine high thermal exchange, compact dimensions, reduced internal volume, full internal cleanability and robust construction for customized applications.
What profile fits you best?

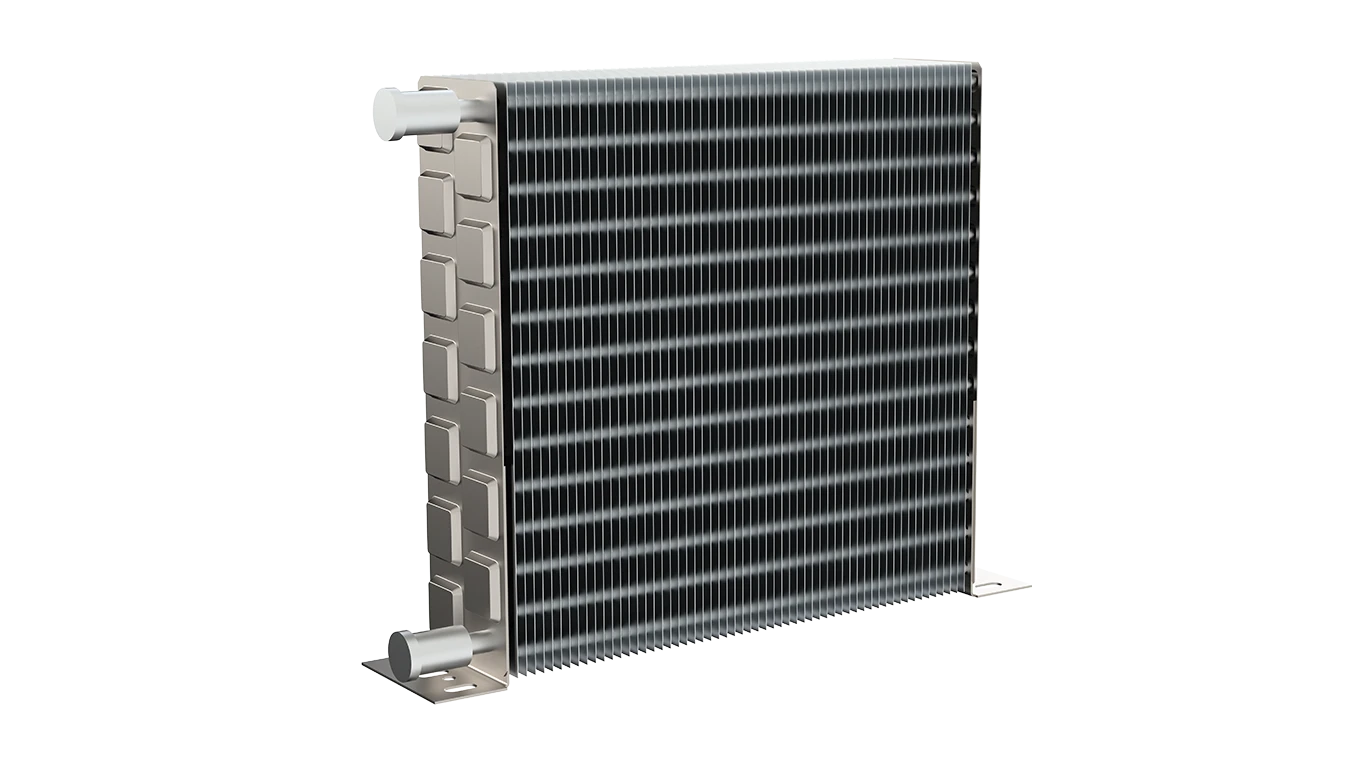

STFT Tubeless steel condensers
- Fluids: HFC, HC
- Cooling capacity from 0.21 up to 5.46 kW.
- Special tubeless exchangers in steel, manufactured to a world-exclusive LUVE technique.
- Maximum capacity in the minimum space for customized applications.
- Elevated thermal exchange and contained dimensions.
- Reduced volume and total internal cleaning
- Strong construction.
- Very compact structure for a high ratio of power rating to volume.
- The STFT can be combined with the motor-fan unit, as in the STVF series.

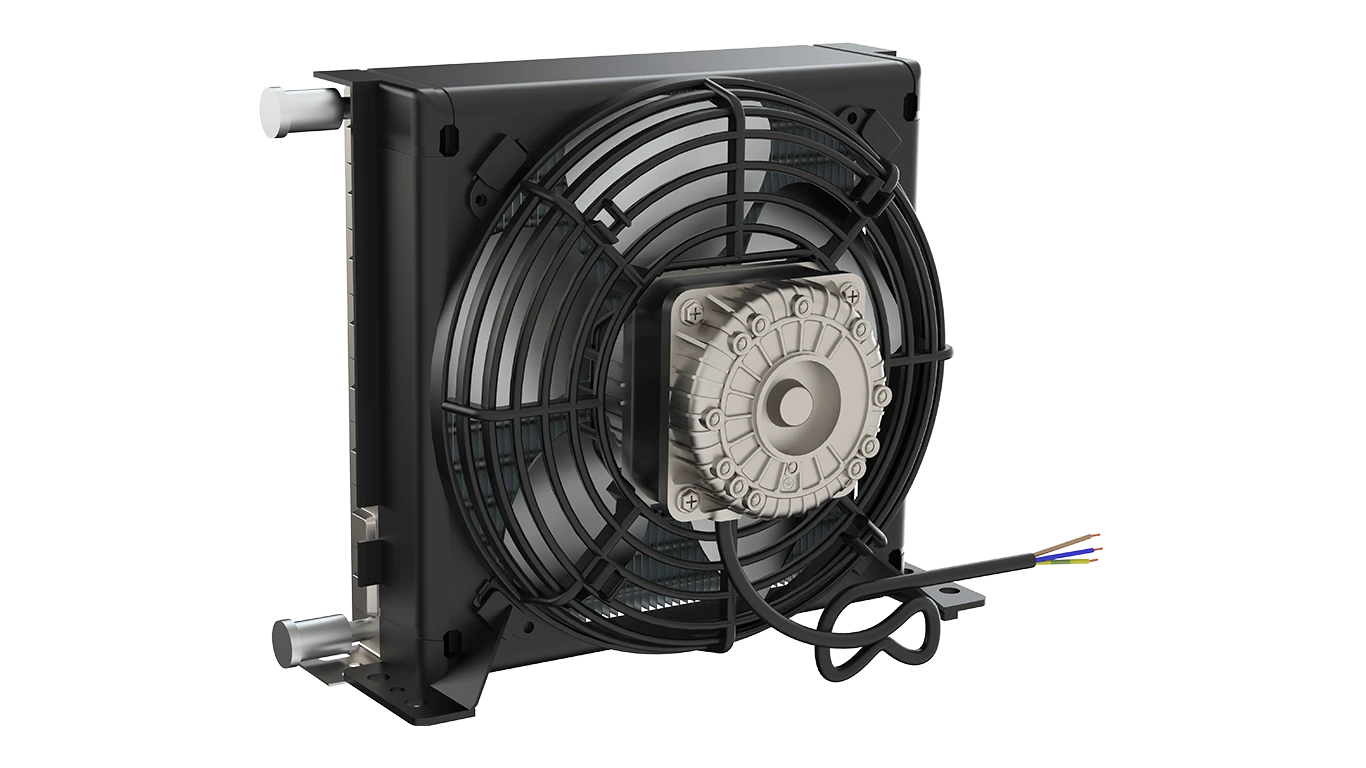

STVF Fan cooled tubeless steel condensers
- Fluids: HFC, HC
- Cooling capacity from 0.21 up to 5.46 kW
- Special tubeless exchangers in steel, manufactured to a world-exclusive LUVE technique.
- Maximum capacity in the minimum space for customized applications.
- Elevated thermal exchange and contained dimensions.
- Reduced volume and total internal cleaning
- Strong construction.
- Very compact structure for a high ratio of power rating to volume.
- Optimum matching with fans: The STVF series is achieved by combining the corresponding STFT condenser with the most suitable fan motor group.
Up to 66% energy saving with EC motor
Easy-to-clean fins: thanks to its structure, fin cleaning can easily be done with compressed air
Exclusive Technology
Oval refrigerant-fluid conduits
It is the fins themselves which form the conduits of the fluid: the high, oval “funnel”-type fin collars are inserted one into the other and copper brazed in an inert atmosphere furnace. This method of construction gives the highest possible conductivity, as the gas virtually flows through the fins.
Product Overview and Options
STFT Tubeless steel condensers
STVF Fan cooled tubeless steel condensers
