Glass door system for negative temperature
The energy saving solution
Iceguard
Iceguard

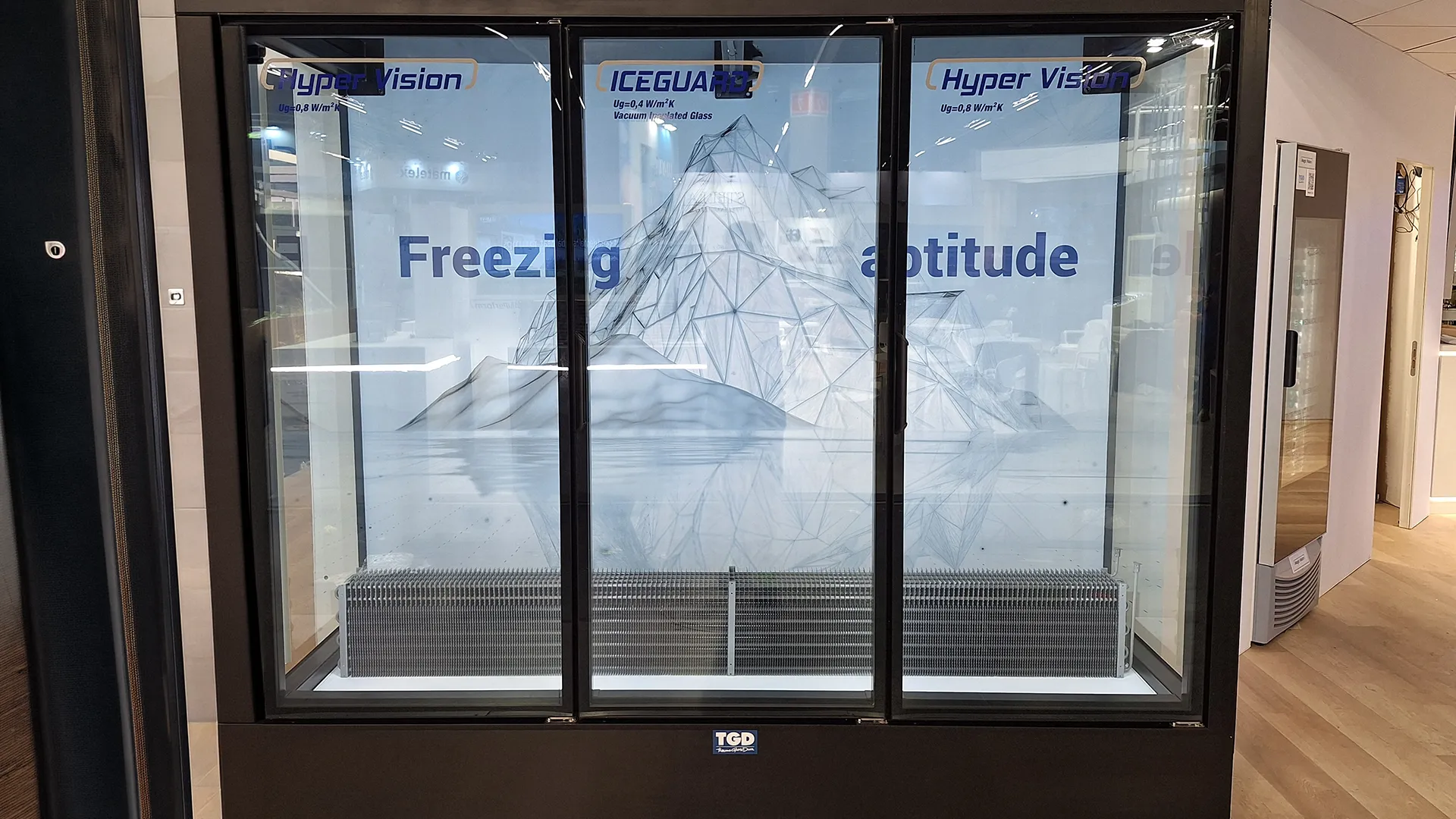

Iceguard is the ultimate Low Energy Glass Door System for Low Temperature applications allowing any freezing appliance to hit the best energy labelling position.
The low energy frame saves over 40% of the energy required by a common frame. The 0 Energy door saves 100% of the energy consumption of traditional freezers doors.
The system complies Class 3 of the standard UNI 23953-2
What profile fits you best?
Framed doors configuration
0 Energy aluminium framed glass door
- Special Vacuum Insulated Glass Unit according to UNI-EN 12150-1 standard
- Ug 0,4 w/m2 °K insulated glass unit
- Internal glass surface antifog protected
- 5% products visibility increase
- PVC and Aluminium combined frame
- “0 Energy” door complying with UNI 23953-2 Class 3 requirements
- Exclusive design and full height comfortable grip handle
- Reversible door, left to right hand
- Adjustable self-closing action by torsion bar
- Manual open wide door retainer
Low energy master frame
- 40% heating power reduction v/s standard heating configuration
- 5% products visibility increase
- Frame compliant to UNI 23953-2 Class 3
- Silver satin aluminium and black colour available
- Frame compatible with Aluminium Framed or Full Glass Doors by LUVE TGD
- Available configurations: 1, 2, 3, 4 and 5 openings
- Led on board or led pre-wired configuration available
Top Advantages
5% products visibility increase
35% master frame energy saving face to standard heated technology
The best energy labelling solution for your appliance
The slimmest 0 Energy door
The most efficient low energy frame
The highest payback on your investment
Full glass doors configuration
0 Energy aluminium framed glass door
- Full glass door with customizable digital silk screen
- Special Vacuum Insulated glass unit according to UNI-EN 12150-1 standard
- Ug 0,4 w/m2 °K insulated glass unit
- Internal glass surface antifog protected
- 5% products visibility increase
- PVC and Aluminium combined frame
- “0 Energy” door complying with UNI 23953-2 Class 3 requirements
- Stylish design optimized by full height or short grip handle
- Reversible door, left to right hand
- Adjustable self-closing action by torsion bar
- Manual open wide door retainer
Low energy master frame
- 40% heating power reduction v/s standard heating configuration
- 5% products visibility increase
- Frame compliant to UNI 23953-2 Class 3
- Silver satin aluminium and black colour available
- Frame compatible with Aluminium Framed or Full Glass Doors by LUVE TGD
- Available configurations: 1, 2, 3, 4 and 5 openings
- Led on board or led pre-wired configuration available
