R-fin®
Reinforced fin option
R-fin® is a patented solution designed to provide increased mechanical and corrosion resistance in all environments, from urban to heavy industrial. Applicable both to coated and uncoated fins. Longer operating life and Reduced maintenance with Reinforced, Robust and Reliable R-fin.
R-fin®
R-fin is an exclusive patented design owned by LUVE
Benefits
- Increased mechanical resistance
- Long lasting performance thanks to longer lifecycle
- Reduced maintenance
- Pre-coated fins edge protected
- No risk of bridging when using pre-coated fins
- No thermal efficiency loss
- Laboratory tested effectiveness
Standard configuration

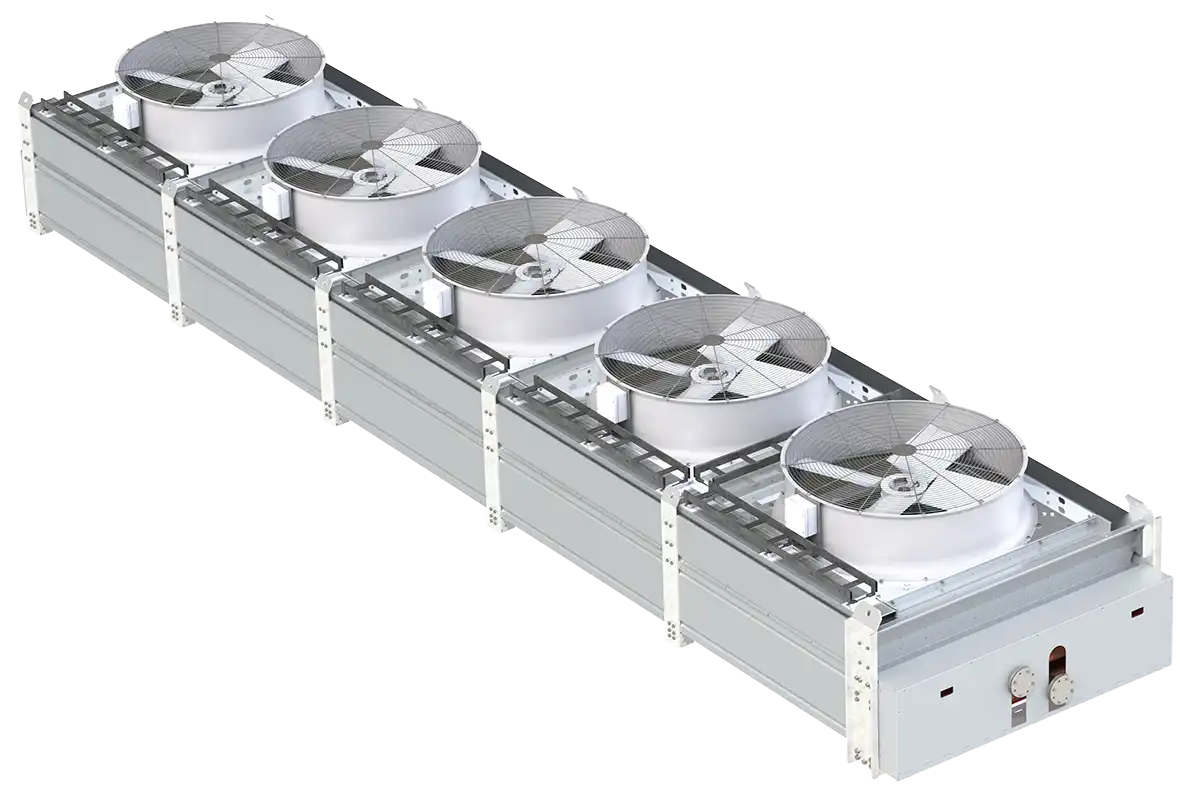

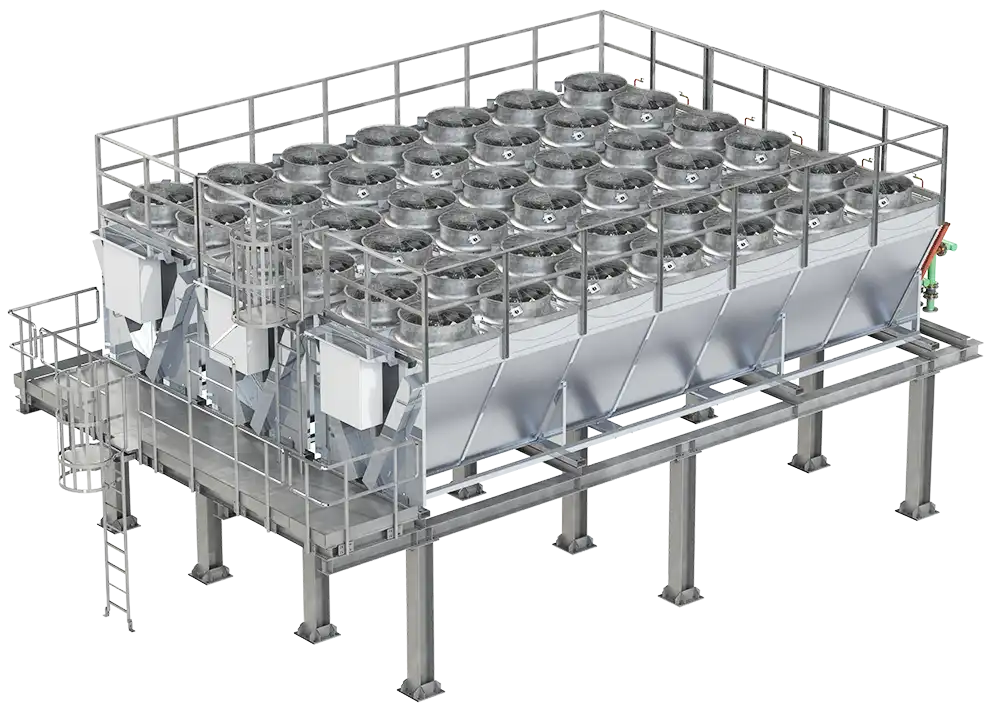

This solution is applicable to our Air-cooled Liquid Coolers such Alfa-V, Alfa Trafo, Alfa Genset, Alfa Reverse and others used in medium to high industrial environments, and is available with different fin types.
- Aluminum and industrial Aluminum fins (R-Al/R-IndAl)
- Increased mechanical resistance for protection against handling damage and climate events such as hailstorms, avoiding expensive coil protections. Suitable for dirty, abrasive air. Higher water pressure allowed for cleaning.
- Aluminum pre-coated fins (R-AlPrv)
- In addition to the advantages of uncoated aluminum, based on test results pre-coated R-fin shows a slightly better corrosion resistance behavior compared to the most common spray coatings with a 70% lower cost.
- Aluminum-Magnesium fins (R-AlMg)
- Increased mechanical resistance, suitable for abrasive air in industrial/coastal areas. Higher water pressure allowed for cleaning purposes compared to standard.
Test done have demonstrated an increased mechanical resistance +80% R-fin compared with the same fin type and material without this feature.
Selection
Selection and pricing is to be performed with our LUVE air heat exchangers specialists. They will guide you to select the best solution according to the specific installation needs. Please contact our sales organization for details and full technical documentation.
| Application | Description and examples |
| Capacity (kW) | Commercial refrigeration installations (air conditioning, free cooling, datacenter cooling) and general installations in residential areas. |
| Fan Speed (rpm) | Industrial Refrigeration, process cooling systems, radiators in small power plants, plastic industry. |
| Air Quantity (m³/h) | Process cooling, medium/big power plants (engines/turbines), HVDC cooling systems, oil coolers for transformers |
| Power Consumption (W) | Chemical Industry, waste treatment plants, agricultural-fertilizers plants. |
