Hi-Tech Flat Industrial Condensers
SAV, EAV, XAV
Giant F
Giant F
Giant F stands out for next-level thermal efficiency and advanced engineering in industrial air conditioning and refrigeration with HFC refrigerants. Built for demanding commercial and industrial systems, Giant F combine advanced LUVE solutions — like turbo fin technology and our SafeTube System — with versatile installation and proven long-term reliability.
Consultant
Comprehensive technical documentation and online tools enable precise system calculations and confident specification. Easily access online technical data and calculation tools to ease complex decisions.
System Integrator
The extensive range and the online documentation of Flat Giants condensers simplify integration into complex refrigeration or air conditioning systems, backed by support from LUVE’s aftersales team for installation assistance.
General Contractor
Enjoy hassle-free installation with LUVE’s plug & play, easy-to-install solutions requiring minimal onsite assembly. Reduce onsite work and simplify project delivery while guaranteeing safe and reliable system performance.
Dealers / OEMs
Complete access to comprehensive product documents in LUVE’s members area. Manuals and product leaflets. Use the Plair configurator to generate personalized technical selections and quotations branded with your identity.
End User
Rely on proven product performance, benefit from digital spare parts catalogs, commercial support and our comprehensive aftersales portal detailing service options and spare parts availability.
Service Provider
Get easy access to technical documentation in our members area. Identify and order spare parts efficiently backed by commercial support to ensure swift repair and maintenance.
Not your profile?
What profile fits you best?
Select your application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
Designed for industrial cold stores, food processing, logistics and distribution centers running on HFC refrigerants.
- Wide range of fan and coil configurations for operational flexibility
- Turbo fin with LUVE exclusive design guarantees maximized performance
- SafeTube System technologies guarantee resilient operation – unmatched for efficiency during peak and continuous loads even in the hot seasons.
- Lower refrigerant charge means greater sustainability, with full compliance to evolving regulations and GWP targets.
Air Conditioning (HVAC)
Optimized for high-efficiency operation in commercial and public air conditioning where sustainability and reliability are priorities.
- Turbo fins provide high heat transfer rates even under highly variable load, ensuring comfort and performance season by season.
- Acoustic and energy solutions surpassing expectations for urban, mixed-use or noise-restricted environments.
- Suitable for both horizontal and vertical installation
Technical Highlights
- Wide capacity range with cooling capacity from 37 up to 1,632 kW (ΔT15 K) and air flow from 7,200 up to 349,200 m³/h.
- Casing and frame in high quality C4-H galvanized steel painted RAL 9003
- Scalable modular design, offering both horizontal and vertical installation.
- Advanced turbo fins delivering higher thermal performance or R Fin for increased mechanical resistance.
- Patented SafeTube System: protects the coil against vibration and thermal shocks, ensuring reliability and long unit service.
- High-efficiency EC axial fans in three diameters (800, 910 and 950 mm), with external rotor motors (IP54), selectable for noise, energy or footprint requirements; support for both single and dual row arrangements. 1 to 16 fans.
- Sound-optimized for sensitive/residential sites.
- Eurovent certified for verified performance and reliability.
Download Eurovent certificate or Learn more about Eurovent - Online configuration: Plair – Start your tailored configuration
Are you looking for a smaller size/capacity? Go to the dedicated Commercial Product
Configure with Plair
The free collaborative tool to configure air heat exchangers.
The latest version of our selection software Plair is available online.
Distinctive Technologies
Reliable performance, Eurovent certified
Turbo Fins
Unique to LUVE, driving higher exchanger efficiency and lower operating costs by enhancing turbulence and reducing fouling.
SafeTube System
Patented design safeguarding against mechanical and thermal stress.
High quality C4-H galvanized steel casing
Long life, minimal maintenance.
Advanced selection software
LUVE Plair selection software allows to fine tune fan motors for maximum efficiency or minimum noise, depending on project needs.
Top Advantages
Reduced refrigerant charge
supports sustainability and faster return on investment
Turbo Fin technology for extraordinary heat transfer
Trust
Reliable, quiet and energy efficient
Modular construction
Available in single or dual fan row for installation flexibility
Product Overview and Options

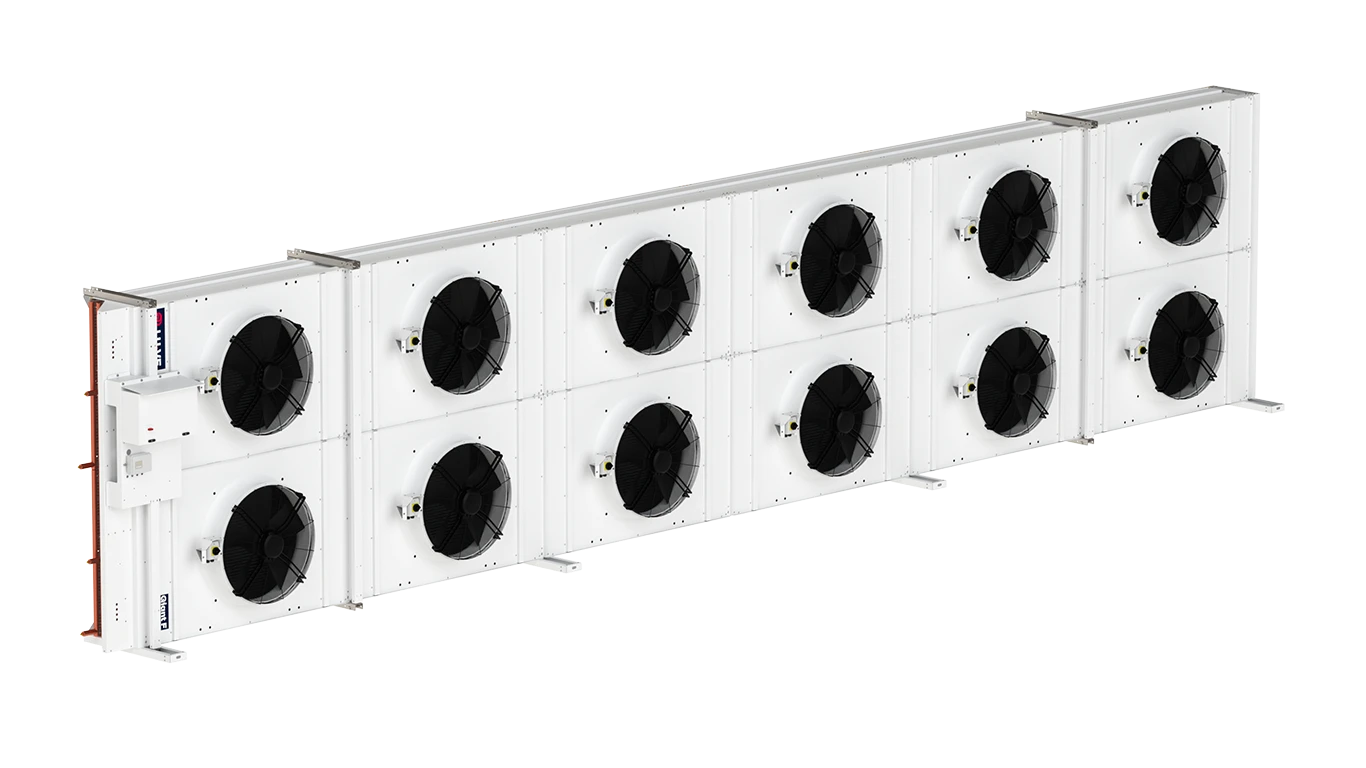

Giant F Vertical view
Giant F + switchboard
Technical features
- Main applications
Horizontal and vertical industrial condensers for air conditioning and refrigeration. - Refrigerants
HFC - Capacity range
37 up to 1,632 kW - Design pressure
30 bar - Fin Spacing
Fin spacing 1.8 and 2.1 mm - Fan-motors
High efficiency, low power consumption EC motors - Fan diameters
ø 800, 910 and 950 mm - Certification
All Giant F models are “Eurovent Certify All” certified
- Refrigerants
- HFC
- Capacity Range (∆T=15 °K)
- 37 up to 1,632 kW
- Design pressure
- 30 bar
Finned Coil
- Air flow Finned coil 7,200 up to 349,200 m3/h
- Copper tubing circuit design optimized according to fluid flow.
- High efficient fins-tube pattern boost the heat transfer performance.
- Fitted with aluminium turbo fins as default and R-fin Technology as optional. Available fin spacings 1.8 and 2.1 mm.
- The unique coil construction provides protection against vibration and thermal expansion, thanks to the patented SafeTube System.
Casing
- Casing and framework are made of high quality galvanized steel C4-H, painted RAL 9003 (white) to tailor the product for industrial environments.
- Modular design, available either in single or dual fan row.
Fan-Motors
- High efficiency, low power consumption EC motors, suitable for multiple voltage and frequency power supply
- Protection class IP 54 according to DIN 40050.
- Integrated thermo contacts provide reliable protection against thermal overload.
- Three fan diameters (800, 910 and 950 mm) optimized for different noise levels
Options
- Aluplus fins (AP): Al-Mg alloy coated fins with a special paint treatment to give strong protection and resistance to corrosion
- Cu fins
- R fin
- Vibration dampers (VD)
- Whisperer (WH)
- Mounting feet for horizontal installation (H=1 m)
- Spray water kit (KW)
- Electrical accessories
- Isolator switch (IS)
- Wired junction box (CB)
- Basic switchboard, with fuse protection (ESB) and optional Master Controller Regulation
- Electrical cabinet with circuit breakers for each fan (ECCB) and optional Master Controller Regulation
- Electrical cabinet with Intelligent Control Management regulation (ICM)
Packing
- All units are shipped in a crate in vertical position as standard.
- Horizontal transport position as optional.
Eurovent Certified
- The LUVE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations. LUVE participates in the ECP program for HE.
Check ongoing validity of certificate: www.eurovent-certification.com
