Hi-Duty Industrial V Shape Ammonia Condensers
Ultimate versatility for heavy duty industrial ammonia condensers
Alfa V ANV
Alfa V ANV

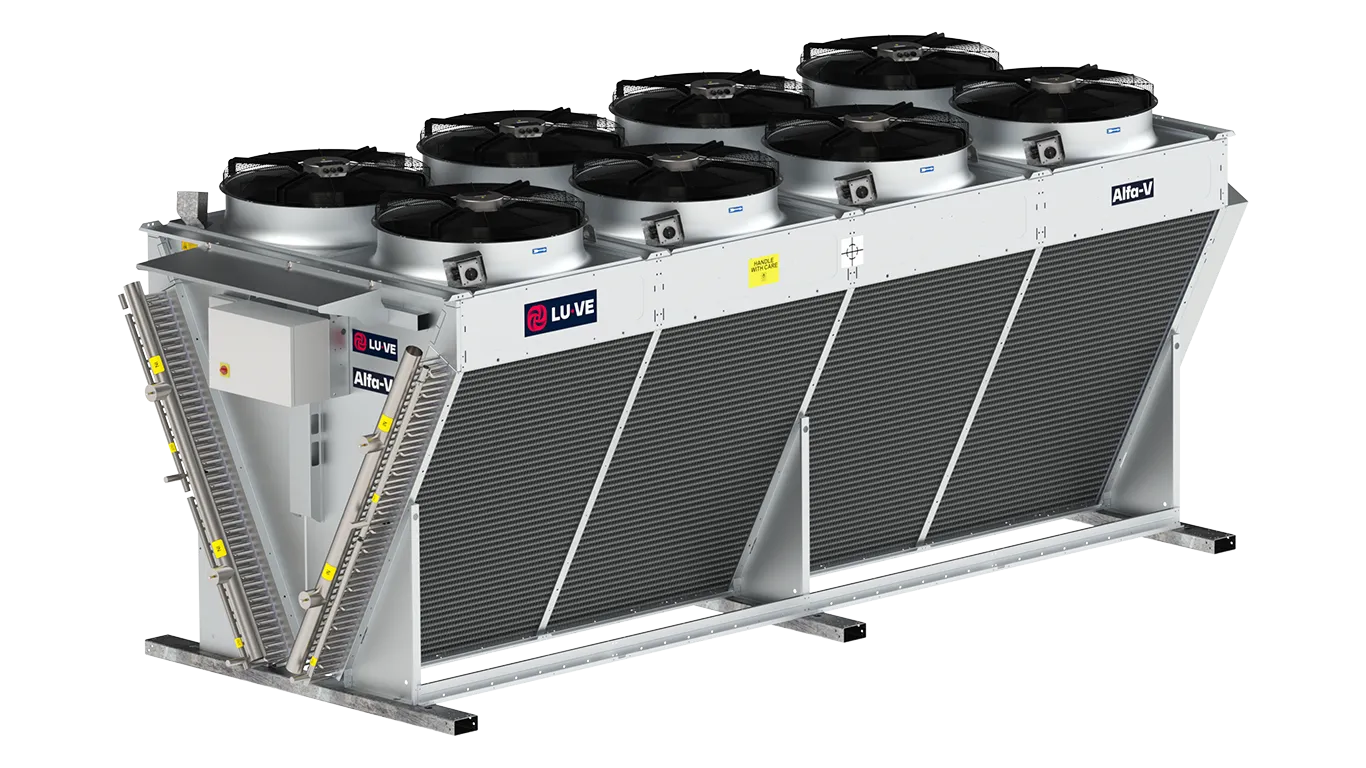

The Alfa V ANV sets the industry benchmark for heavy duty industrial ammonia condensation.
It is purpose-built for robust and efficient condensation in industrial refrigeration systems using ammonia (NH₃) as refrigerant. Leveraging the proven design and mechanical excellence of the Alfa V platform, ANV condensers offer premium thermal performance, reliability, and safety – ensuring the best match for demanding ammonia applications in industrial refrigeration, cold storage, food processing and HVAC environments.
Consultant
Alfa V ANV offers reliable performance, essential for safe ammonia system design. Comprehensive technical documentation and online tools enable precise system calculations and confident specification. Easily access online technical data and calculation tools to ease complex decisions.
System Integrator
System integrators benefit from Alfa V ANV’s modular design and wide configurability, allowing seamless integration into complex ammonia refrigeration or HVAC systems. Detailed online documentation and responsive aftersales support facilitate efficient installation and troubleshooting.
General Contractor
Enjoy hassle-free installation with LUVE’s plug & play, easy-to-install solutions requiring minimal onsite assembly. Reduce onsite work and simplify project delivery while guaranteeing safe and reliable ammonia system performance.
Dealers / OEMs
Enjoy hassle-free installation with LUVE’s plug & play, easy-to-install solutions requiring minimal onsite assembly. Reduce onsite work and simplify project delivery while guaranteeing safe and reliable ammonia system performance.
End User
Rely on proven and certified product performance, benefit from digital spare parts catalogs, commercial support and our comprehensive aftersales portal detailing service options and spare parts availability.
Service Provider
Get easy access to technical documentation in our Members Area. Identify and order spare parts efficiently backed by commercial support to ensure swift repair and maintenance.
Not your profile?
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
Solutions for cold rooms, food processing and temperature-sensitive logistics.
- Wide capacity range to meet any project size.
- Robust, corrosion-resistant construction.
- Easy-to-clean industrial coil.
Data Center / Big Data Cooling
Designed for advanced HVAC systems using ammonia as refrigerant.
- Excellent capacity-to-footprint ratio.
- Energy efficient.
- Ultra-quiet operation through advanced aerodynamic design.
- Flexible installation: rooftop, commercial or residential area.
Technical Highlights
- Heavy duty V-shape construction for durable performance in diverse industrial environments.
- Cooling capacity: 93 to 1890 kW (Tair = 25 °C, Tcond = 40 °C, Tsubcool < 3K, Tsuperheating = 25K).
- Innovative coil design: cross-fin copper tubes, with two different aluminum fins type.
Turbo fins for maximized performance or exclusive industrial-grade R-Fin for enhanced durability and easier cleaning.
DISCOVER THE TECHNOLOGY - Casing and frame in galvanized steel with standard corrosion resistance class C4-H.
- AC/EC fan motors in three diameters (800/910/1000 mm), five noise levels, ErP compliant, with broad multi-voltage compatibility.
- Modular range: configure precisely to your cooling requirements for complete operational flexibility.
- Extensive options portfolio for tailored solutions.
- Online configuration: Plair – Start your tailored configuration
Configure with Plair
The free collaborative tool to configure air heat exchangers.
The latest version of our selection software Plair is available online.
Distinctive Technologies
Industrial grade R-Fin
Corrosion resistance
Corrosion resistance: special paintings for maximum protection for offshore, marine, and industrial atmospheres available on request.
Plug&Play
Plug&Play: factory pre-assembled for rapid commissioning.
Mechanical design
Mechanical design: suitable for highly demanding site conditions (wind, snow, earthquake) and, on request, extreme or custom conditions.
Top Advantages
Reduced energy consumption and operating costs.
Market-leading noise levels and compact size
Advanced customization options
Available with easy-to-clean industrial coil.
Technical features
- Main applications
Alfa V ammonia condenser (ANV=NH₃) - Refrigerant
NH₃ - Capacity range*
97 up to 1890 kW* Nominal capacities (Tair = 25°C, Tcond = 40°C, Tsubcool < 3K, Tsuperheating = 25K).
- Design pressure
30 bar - Fan-motors
ErP compliant fan AC & EC motors and different noise levels - Fan diameters
ø 800, 910 and 1000 mm - Fin spacing
Standard fin spacing 2.0, 2.1, 2.3, 2.5 and 3.0 mm
- Refrigerant
- NH₃
- Capacity Range*
- 97 up to 1890 kW
- Design pressure
- 30 bar
* Nominal capacities (Tair = 25°C, Tcond = 40°C, Tsubcool < 3K, Tsuperheating = 25K)
Casing
- Frame construction provides high rigidity for protection against vibration and thermal expansion
- Casing, supports and frame made of corrosion resistant galvanized steel (class C4-H)
- Separated fan sections and removable fan rings
Fan-Motors
- ErP compliant fan AC & EC motors and different noise levels
- Motors with external rotor, protection class IP54 according to DIN 40050
- AC power supplies 400/50/3, 400/60/3 and 460/60/3 with integrated thermo contacts to provide reliable protection against thermal overload
- EC power supply 380-480/50-60/3
- Available in different fan diameters: 800, 910 and 1000 mm
Options
- Connection box (CB)
- Connection box with single switch for all fans (CB1) Shut up sock (S) – for ISD
- Sock Ring (SR) – for ISD
- Electric defrost systems:
- Electric defrost in driptray + hot gas in coil (E1)
- Electric defrost heavy (E2)
- Electric defrost light (E4)
- Hotgas defrost systems:
- Hotgas defrost (HG)
- Hotgas defrost, connected (HGC)
- Hot glycol ciruit defrost (HW) – copper tubes
- Stainless steel casing and coil frame (SSC)
Standard materials for underplate (aluminium) and fan grid (black painted steel)
- Alternative fin materials (SWR / EP)
- Dual fin spacing (DF) – on request
- On/off switch (SW)
- Motorized defrost damper – on request for ISD
- Top connections (AVA) – for brine models
- Flanges PN16 in AISI 304 for copper or stainless steel tubes models (F) – for brine models. Supplied loose.
- Fan casing 90° / 45° (FC1 / FC2) – for ISD
- Suction hood 90° / 45° (H1 / H2) – for ISD
- Insulated suction hood 90° / 45° (IH1 / IH2) – for ISD
- Hinged fan (HF)
- Insulated drip tray (I2)
- Mounting feet (MF)
- Fan ring heater (FRH)
- Streamer (ST) – for ISD
Design pressure
- 33 bar
- Each heat exchanger is leak tested with dry air and finally supplied with a
nitrogen pre-charge
Finned Coil
- An innovative coil design provides excellent heat transfer at minimal refrigerant charge
- Condensers are fitted with smooth stain-less steel tubing (ANV)
- Fins in aluminium or sea water resistant AlMg, plain fin design for easy cleaning and long-lasting performance
- Separate connections provide the opportunity for independent operation of both condenser coils
- Standard fin spacing 2.0, 2.1, 2.3, 2.5 and 3.0 mm
Certifications
- The LUVE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations.
