Hi-tech cubic commercial air coolers for A2L refrigerants
Efficient cooling made simple

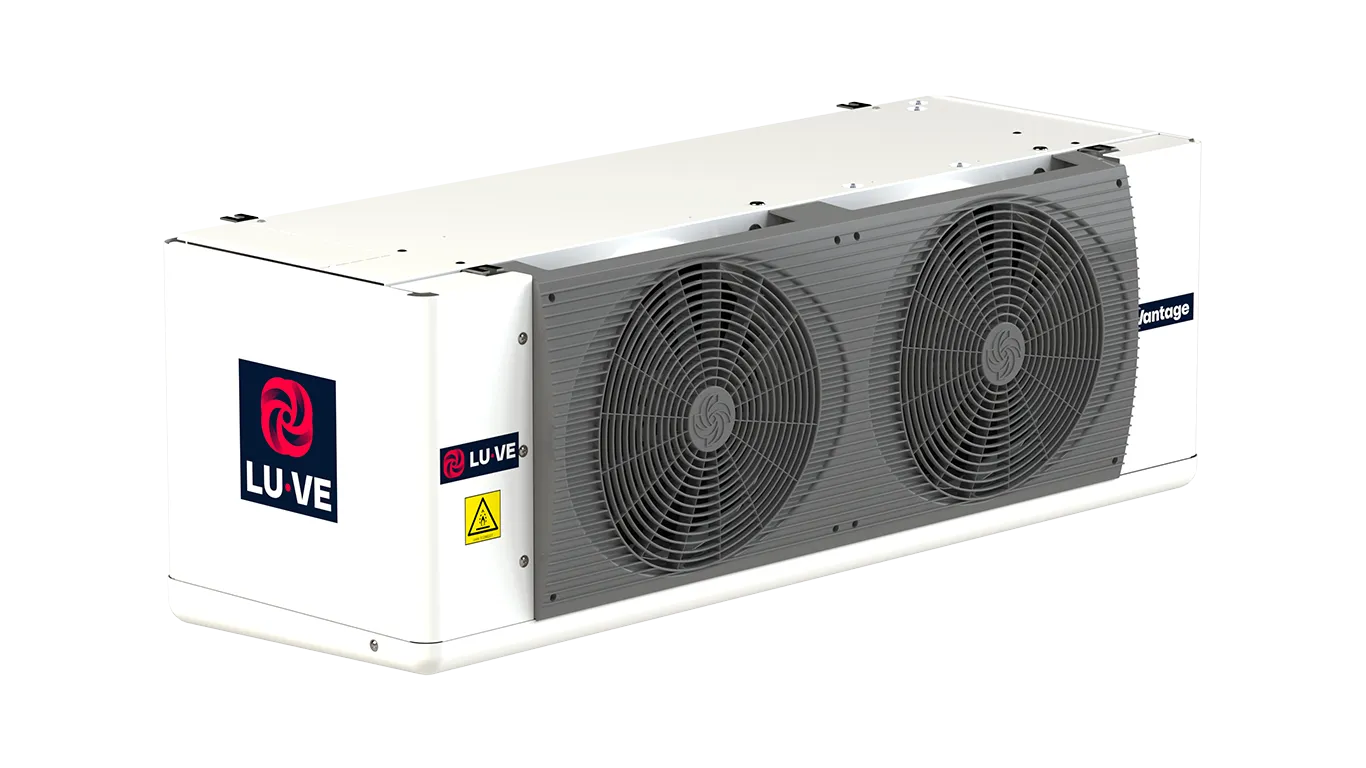

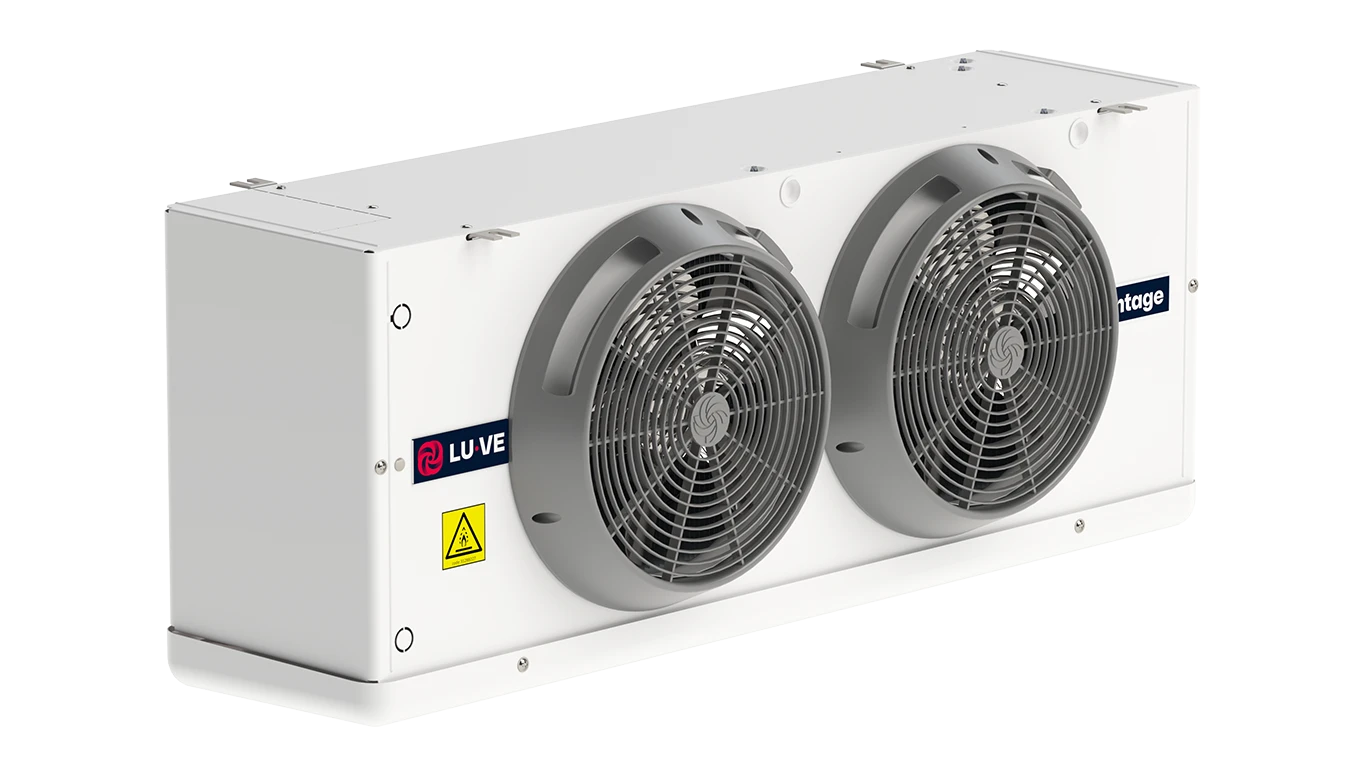

Vantage SFHC
Vantage SFHC
Compact commercial unit coolers designed for safe use of A2L refrigerant and for optimal conservation of fresh and frozen goods in commercial refrigeration.
Consultant
Vantage SFHC provides safety compliance and advanced coil technology for projects adopting low-GWP A2L refrigerants. Eurovent certified performance for verified performance and comprehensive technical documentation for accurate system calculations and compliant design choices in line with the latest F-Gas and regulatory requirements. Multiple fin spacing and defrost options for optimized design flexibility.
System Integrator
Vantage SFHC’s A2L-compliant design and compact cubic footprint simplify integration into small and medium commercial cold rooms. Standard EC fan motors, flexible coil configuration and electric defrost options make it easier to match system requirements while keeping installation straightforward and fully aligned with A2L safety constraints.
General Contractor
Vantage SFHC offers a plug-and-play A2L-ready solution that reduces risk on site for commercial refrigeration projects. Factory-tested units, a robust and corrosion-resistant casing and a compact form factor help streamline installation activities and provide a safe, reliable answer where low-GWP A2L refrigerants are specified.
Dealers / OEMs
Vantage SFHC combines A2L safety compliance with strong commercial tools. Clear A2L design compliance, complete product documentation and access to online configuration software for selections and quotations help position Vantage SFHC as a future-proof choice in portfolios transitioning from traditional HFCs to A2L refrigerants.
End User
Vantage SFHC delivers efficient, reliable cooling while supporting the transition to lower environmental impact refrigerants. High-efficiency EC fans, optimized heat exchangers and A2L-focused safety design ensure stable temperatures, low energy consumption and peace of mind in daily operation.
Service Provider
Vantage SFHC’s service-friendly design minimizes maintenance time and maximizes safety and system uptime. The dismountable and openable casing allows easy coil inspection and cleaning, with centralized wiring to a single connection box simplifying service access. Comprehensive online manuals and spare parts lists are always available for straightforward service.
Not your profile?
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
- High-efficiency EC fans as standard.
- High-efficiency coils with TURBOFIN aluminum fins for superior heat transfer.
- Available with insulated suction hood for optimized air distribution.
- Easy maintenance and cleaning with dismountable and openable casing.
- High capacity and long air throw, thanks to patented Jetstreamer grill.
Technical Highlights
- Designed for safe use of ASHRAE A2L refrigerants, suitable for A1 refrigerants.
Discover our CO2/brine refrigerants dedicated series - Modular commercial air cooler in draw-through design.
- Cooling capacity (SC2): from 1.45 kW up to 27.5 kW
- Internally grooved copper tubes, with TURBOFIN aluminium fins. Multiple fin spacing options (4.5 up to 9 mm).
- EC fan motors with 275, 315 and 350 mm diameter, 1 to 4 fans per unit. Single speed fans for F27 models, dual speed or 0-10 V control input for F31 and F35 models.
- Corrosion resistant galvanized steel casing, epoxy-coated RAL 9003.
- Electric defrost available for A2L refrigerants listed in IEC standard 60335- 2-40
- Designed for high energy efficiency and low defrost frequency.
- Eurovent certified for verified performance and reliability.
Download Eurovent certificate or Learn more about Eurovent - Configure your ideal solution quickly with our online selection software: Plair – Start your tailored configuration
Plair — Cold Room Calc
Plair is LUVE’s collaborative selection tool for air heat exchangers, designed to simplify configuration and speed up quotation processes.
Our Cold Room Calculator helps you define the correct heat load for cooling and freezing rooms.
Distinctive Technologies
TURBOCOIL heat exchanger
Unique to LUVE, ensures maximum performance and minimized defrost frequency.
Jestreamer
Directional grill ensures uniform airflow through the coil, increasing air quantity even with frosted coils.
High efficiency fan motors
State-of-the-art EC fan motors deliver optimum airflow with low energy consumption and compliance with ErP energy efficiency standards
Top Advantages
A2L safety compliant
Designed for safe and reliable use with environmentally friendly A2L refrigerants, including electric defrost for refrigerants included in IEC standard 60335- 2-40
Reliable performance, Eurovent certified, independently tested
Extremely low internal volume
Reducing refrigerant charge
Reliable, quiet and energy efficient
Easy-access, easy-clean
Fully accessible casing
Technical features
- Main applications
SFHC is the range of commercial unit coolers from LUVE, designed for safe use of ASHRAE A2L refrigerant and for optimal conservation of fresh and frozen goods in commercial refrigeration. - Refrigerant
A1, A2L - Capacity range
1.45 up to 27.5 kW - Air quantity
900 up to 10,400 m3/h - Fan-motors
1 to 4 fans fitted with high-efficiency EC fan motors - Fan diameters
ø 275, 315 and 350 mm
- Refrigerant
- A1, A2l
- Capacity range
- 1.45 up to 27.5 kW
- Air quantity
- 900 up to 10,400 m3/h
Casing
- Corrosion-resistant galvanized steel casing with epoxypolyester powder coating RAL 9003.
Fan-Motors
- 1 to 4 fans fitted with high-efficiency EC fan motors with incorporated thermal protection.
- Available in 3 fan diameters (275, 315 and 350 mm) drawing through the coil.
- Dual speed or 0-10V control input motors for F31 and F35 models.
- Power supply 230/1/50-60.
Options
- Electric defrost in coil (E).Certified for the use of the only A2L refrigerants listed on the IEC standard 60335-2-40 (R-32, R-1234YF, R-1234ZE (E), R-444A, R-444B, R-447B, R-451A, R-451B, R-452B, R-454A, R-454B, R-454C, R-455A)
- Electric defrost in driptray (DTH)
- Electric defrost in coil + driptray (E+DTH)
- Fan shroud heater.
- Coil corrosion protection: Alupaint (AP).
- EC fan motors: single speed for F27, dual speed or 0–10 V control input (0-10) for F31 and F35.
- EC fan motor with 0–10 V control input (0-10) – for F35 models
- EC fan motor with 0–10 V control input + potentiometer (0-10P) – for F35 models
- Driptray insulation.
- Shut-up sock with adapter ring – for F31 and F35 models
- Insulated suction hood for F31 and F35 modeld
JET STREAMER®
- LUVE patented the JETSTREAMER® directional grill.
- The innovative design of its profile provides:
- Uniform distribution of airflow through the coil.
- Significant increase in air quantity, both with frostfree coil (+4 to +9%) and with frost on the coil (+7 to +15%).
- The improvement in air quantity during the frosting stage guarantees superior capacity and +25% air throw.
Coil
- The very high-efficiency TURBOCOIL® heat exchangers have the best power/cost ratio obtainable.
- High-efficiency TURBOFIN® aluminum fins with special configuration of the louvre profile to reduce dehumidification and frost formation.
- High-efficiency small-diameter copper tubes with internal helical grooving, designed for optimal evaporation of the new refrigerant fluids.
- Standard fin spacings 4.5, 6 and 7 mm.
Design Pressure
- Design pressure 24 bar.
- Each heat exchanger is leak tested with dry air and finally supplied with a dry air pre-charge.
Certifications
- The LUVE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations. LUVE participates in the ECP program for HE.
Check ongoing validity of certificate: www.eurovent-certification.com
