Giant C

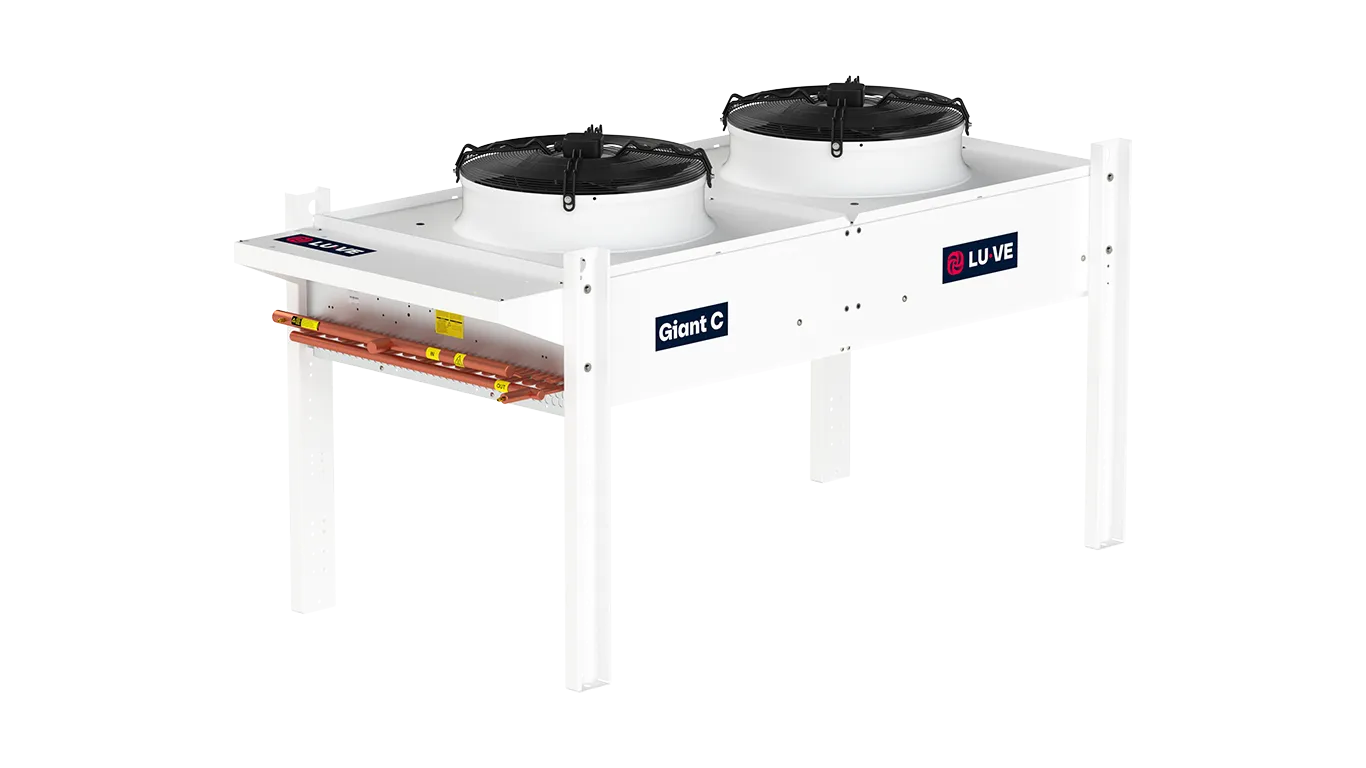

Giant C SAV and EAV Commercial gas coolers are competitive lines of CO2 gas coolers that offer excellent performance, allowing easy installation on site and an outstanding integration with other components. High efficient fan motors combine excellent sound characteristics and low energy consumption. Giant C SAV and EAV commercial gas coolers have been specifically designed for CO2 refrigerant system.
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
Air Conditioning (HVAC)
Configure with Plair
The free collaborative tool to configure air heat exchangers.
The latest version of our selection software Plair is available online.
Technical features
- Main applications
Giant C SAV, EAV is a wide range of industrial gas coolers for air conditioning and refrigeration applications - Refrigerant
CO2 - Capacity range
50 up to 1,230 kW - Air flow
10,000 up to 235,0000 m3/h - Design pressure
130 bar - Fan-motors
High efficiency, low power consumption AC/EC motors - Fan diameters
ø 800, 910, 950 mm
- Refrigerant
- CO2
- Capacity Range
- 50 up to 1,230 kW
- Air flow
- 10,000 up to 235,0000 m3/h
- Design pressure
- 130 bar
Casing
- Casing and framework are made of high quality galvanized steel, powdered coated RAL 9003 (white) to tailor the product for industrial enviroments.
- Modular design, available either in single or dual fan row.
Fan-Motors
- High efficiency, low power consumption AC/EC motors are suitable for multiple voltage and frequency power supply.
- Protection class IP 54 according to DIN 40050.
- Integrated thermo contacts provide reliable protection against thermal overload.
- Three fan diameters (800, 910 and 950 mm) optimized for different noise levels.
Options
- Aluplus fins (AP): Al-Mg alloy coated fins with a specialvpaint treatment to give strong protection and resistance to corrosion
- Cu fins
- Vibration dampers (VD)
- Whisperer (WH)
- Mounting feet for horizontal installation
- Spray water kit (KW)
- Electrical accessories:
- Isolator switch (IS)
- Basic switchboard, with fuse protection (ESB)
- Switchboard with automatic switch for each fan (ECCB)
- Switchboard with master controller regulation (ECCB+MC)
Design pressure
- 130 bar.
Finned Coil
- Copper tubing circuit design optimized according to fluid flow.
- High efficient fins-tube pattern boost the heat transfer performance.
- Fitted with aluminium turbo-fins.
- Different fin materials and spacing are available.
- The unique coil construction provides protection against vibration and thermal expansion, thanks to the patented SafeTube System.
Certifications
- The LU-VE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations.
Download
| Giant C Commercial Gas Coolers SAV|EAV | Leaflet | ENGLISH | Download |
| Air cooled condensers and gas Coolers | Product manual | Download | |
| Giant C EAV5-6 | SAV6 | SAL6 | Instruction manual | ENGLISH|FRENCH|GERMAN|ITALIAN|RUSSIAN|SPANISH | Download |
| Giant C SAV5 | SAL5 | Instruction manual | SWEDISH | Download |
| Giant C SAV5 | SAL5 | Instruction manual | ENGLISH|FRENCH|GERMAN|ITALIAN|RUSSIAN|SPANISH | Download |
| Giant C | Picture | Image 1 | Download |
