Alfa Solar SR

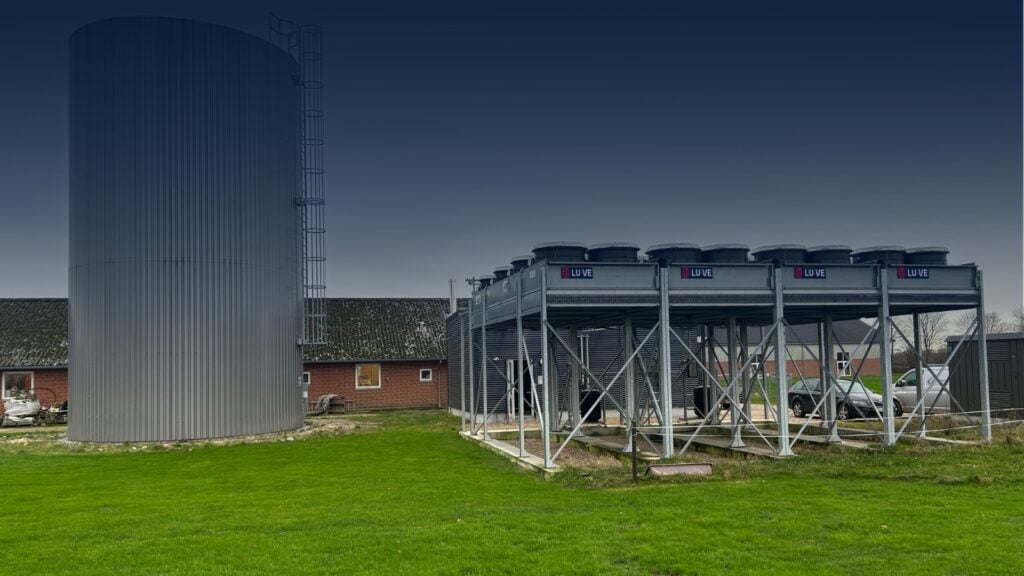

Air cooled radiators Alfa Solar SR have been designed for heavy industrial cooling applications for cooling of various process liquids. Dual coil models are available for simultaneous cooling of LT/HT engine circuits. Applications include diesel and gas engine cooling, turbine cooling, oil cooling and various other processes (transformers, air compressors, etc.)
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Energy and Power Generation
Industrial Cooling
HVAC
Technical features
- Main applications
Air cooled radiators Fincoil Solar SR have been designed for heavy industrial cooling applications for cooling of various process liquids - Liquid
All liquids that do not corrode copper - Capacities
customer specifications - Design pressure
6 up to 9 barg - Fan-motors
EC/IEC fan motors - Fan diameters
ø 910, 914 and 1240 mm
- Liquid
- All liquids that do not corrode copper
- Capacities
- customer specification
- Design pressure
- 6 up to 9 barg
Casing
- All casing parts are of hot dip galvanized steel plates.
- Specifically designed for installations with several radiators installed side by side.
- Two casing widths (SRM=1630 mm, SRD=2400 mm).
- Partitions between fans for regulation of the cooler capacity by means of separate use of the fans.
- Adjustable mounting legs (80/425/620 mm).
- Fitted with header tube protection panels.
- Standard vertical transport position, fixed on a wooden pallet.
- Suitable for truck transportation or loading into a container.
Fan-Motors
- EC fan motors
- Available with high efficiency axial EC fans Ø 914 mm, in a range of different fan speed executions, 1 to 14 fans.
- Motors with external rotor, protection class IP55, F-class insulation.
- Corrosion resistant fan blades and guards.
- IEC fan motors
- Direct driven axial fans with squirrel-caged motors for outdoor use built to IEC standards.
- Ø 910 or 1240 mm.
- Provided with condensing water outlets and shaft seals together with H-class insulation.
- Protection class IP55, except for the condensing water outlets.
- Motors pre-wired to lockable service switches.
- Suitable for use with frequency converters.
- When designing a frequency converter system, the general guidelines for allowed cable lengths, dU/dT and/or sinus filters etc. have to be considered.
Mechanical options
- Coil corrosion protection:
- epoxy coated aluminium fins (EP)
- copper fins (CU)
- sea water resistant aluminium fins (SWR)
- Dual coil models with LT- and HT-circuits
- Fin spacings 2.3 – 4 mm
- Fin thickness 0.18 mm
- Water spraying system (KW)
- Vibration dampers for mounting legs (VD)
- Counter flanges, flexible connection joints
- Flange dimensions acc. to ANSI
- Higher mounting legs (up to 6 m)
- Handrails & ladder
- Expansion tanks with Murphy LLS (ET)
- Packing (P=Pallet, PP=P+protection frame on top, PH= PP+hard board, PT=PH+tarpaulin, CN=Container, WB=wooden box).
- Seaworthy packing on request
- Casing painting RAL 7040
- Visible surfaces painting (MU)
- C5-H painting, all surfaces (M3)
- Other RAL colours on request
Fan motor options
- Motors with PTC thermal control
- Motors equipped with anti-condensation heater
- Special fan motors (NEMA, UL, CSA etc.)
- Protection Rating available: IP56, IP65, IP65
- Forced draught fans (FD)
- EMC cables, glands & service switches for each fan (EMC)
- Ex motors, fans & service switches (EX)
- Arctic environment package -50 °C (AP)
- Extreme arctic environment package below -50 °C on request (AE)
Electrical options
- Switchboards
- Basic switchboard for IEC fans (B)
- Basic switchboard for IEC fans, with frequency converter and manual bypass (BFC)
- Basic switchboard for IEC fans with frequency converter, manual bypass and temperature probe (BFCT)
- Basic switchboard for EC fans (ECCB)
- Basic switchboard for EC fans with exterrnal signal 4-20 mA (ECCBI)
- Basic switchboard for EC fans with temperature probe fan speed regulation (ECCBT)
- Basic switchboard for EC fans with temperature probe and temperature controller fan speed regulation (ECCBT+)
- Connection boxes (located at the end of the radiator)
- Connection box for IEC fans – terminal box (CB)
- Connection box for EC fans – terminal box (CBP)
- Connection box for EC fans with external signal 4-20mA fan speed regulation (CBPI)
- Connection box for EC fans with temperature probe and fan speed regulation (CBPT)
Design pressure
- Design pressure 6 barg.
- Each heat exchanger is leak tested dry air at 9 barg.
- Higher design pressures on request.
- Design temperature -60/+110 °C.
- +125 °C available on request.
Finned coil
- Coil manufactured from smooth copper tubes Ø 12.7 mm and corrugated Alu-fins 0.14 mm.
- Standard fin spacing 2.3 mm.
- Flanges PN10/16 according to EN 1092.
- Manual venting and draining valves.
Certifications
- The LU-VE quality system is in accordance with ISO 9001 and ISO 14001. All products are manufactured according to PED regulations.
