High Performance Flat Industrial Liquid Coolers
SAL, EAL, XAL
Giant F
Giant F
Giant F stands out for next-level thermal efficiency and advanced engineering in a broad spectrum of applications, from air conditioning and refrigeration to industrial process cooling and power generation.
Built for demanding commercial and industrial systems, Giant F combines advanced LUVE solutions – like turbo fin technology and our SafeTube System – with versatile installation and proven long-term reliability.
Consultant
Ensure every cooler meets your performance expectations with LUVE’s Eurovent Certification. Comprehensive technical documentation and online tools enable precise system calculations and confident specification. Easily access online technical data and calculation tools to ease complex decisions.
System Integrator
The extensive range and the online documentation of Flat Giants liquid coolers simplify integration into complex liquid cooling systems, backed by support from LUVE’s service team for installation assistance. Our global manufacturing footprint facilitates multi-site deployments.
General Contractor
Enjoy hassle-free installation with LUVE’s plug & play, easy-to-install solutions requiring minimal onsite assembly. Reduce onsite work and simplify project delivery while guaranteeing safe and reliable system performance.
Dealers / OEMs
Complete access to comprehensive product documents in LU-VE’s Members Area including manuals and product leaflets. Eurovent certification ensures independently verified performance, making it easier to meet project specifications and win the trust of your customers. Use the Plair configurator to generate personalized technical selections and quotations branded with your identity.
End User
Rely on proven product performance, benefit from digital spare parts catalogs, commercial support and our comprehensive aftersales portal detailing service options and spare parts availability.
Service Provider
Get easy access to technical documentation in our members area.
Not your profile?
What profile fits you best?
Select your application
Select Your Application:
Which sector/application are you interested in?
Refrigeration
Designed for industrial cold stores, food processing, logistics, and distribution centers.
- Wide range of fan and coil configurations for operational flexibility
- Turbo fin with LUVE exclusive design guarantees maximized performance
- SafeTube technologies guarantee resilient operation – unmatched for efficiency during peak and continuous loads even in the hot seasons.
- Eurovent certification for guaranteed cold chain reliability.
Air conditioning
Optimized for high-efficiency operation in commercial and public air conditioning where sustainability and reliability are priorities.
- Turbo fins provide high heat transfer rates even under highly variable load, ensuring comfort and performance season by season.
- Suitable for both horizontal and vertical installation.
- Acoustic and energy solutions surpassing expectations for urban, mixed-use, or noise-restricted environments.
DISCOVER WHISPERER TECHNOLOGY
Power Generation/ Energy
Suitable for ORC, waste-to-energy, hydrogen and carbon capture installations.
- Compact design for efficient transport and on-site integration.
- Maximized energy efficiency.
- Minimal maintenance and operational continuity in critical infrastructure.
- Excellent sound characteristics.
Technical Highlights
- Wide capacity range with cooling capacity from 37 up to 1,400 kW (ΔT15 K, Glycol 34%) and liquid flow up to 270 m³/h.

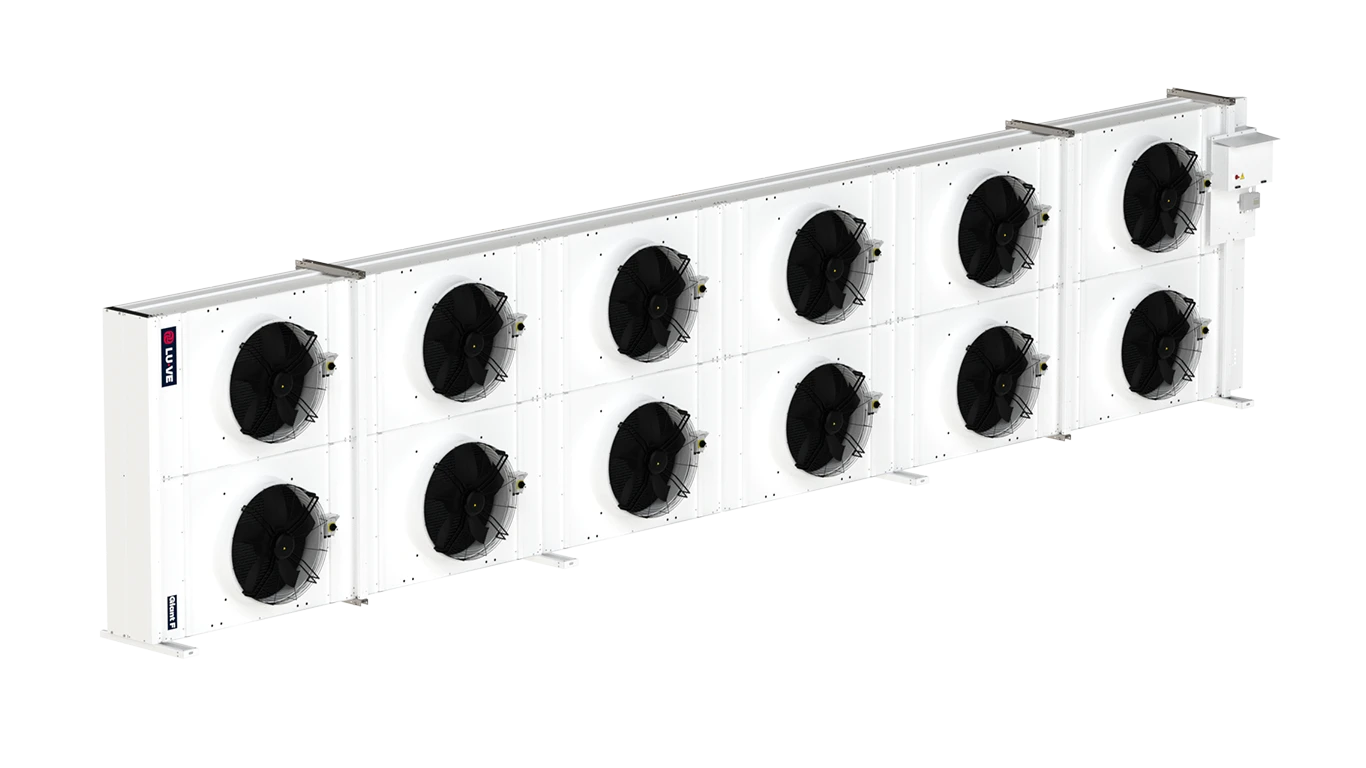

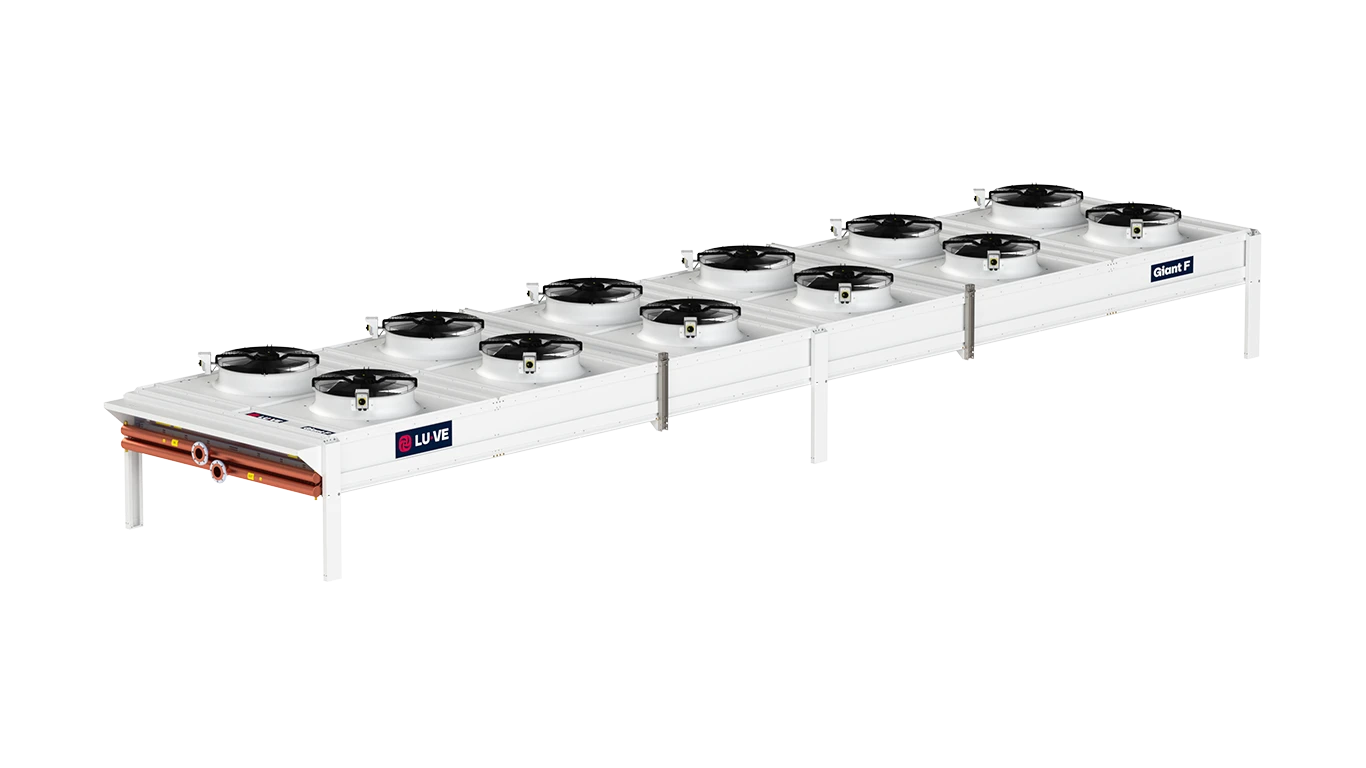

- Modular platform for both horizontal and vertical installation
- Advanced turbo fins delivering higher thermal performance, reduced fouling, and greater operational efficiency
- Patented SafeTube System: protects the coil against vibration and thermal shocks, ensuring reliability and long unit service.
- Casing and frame in pre-galvanized, epoxy-coated steel (RAL 9003)
- High-efficiency AC and EC axial fans in three diameters (800, 910, 950 mm), with external rotor motors (IP54), selectable for noise, energy, or footprint requirements; support for both single and dual row arrangements. 1 to 14 fans.
- Sound-optimized for sensitive/residential sites.
- Eurovent certified for verified performance and reliability.
Download Eurovent certificate or Learn more about Eurovent - Configure your ideal solution quickly with our online selection software: Plair – Start your tailored configuration
Are you looking for a smaller size/capacity? Go to the dedicated Commercial Product
Configure with Plair
The free collaborative tool to configure air heat exchangers.
The latest version of our selection software Plair is available online.
Distinctive Technologies
Turbo fins
Unique to LUVE, driving higher exchanger efficiency and lower operating costs by enhancing turbulence and reducing fouling.
SafeTube System
Patented design safeguarding against mechanical and thermal stress.
Corrosion-resistant materials
Long life, minimal maintenance.
Advanced selection software — Plair
LUVE Plair selection software allows to fine tune fan motors for maximum efficiency or minimum noise, depending on project needs.
Top Advantages
Turbo fin technology for extraordinary heat transfer
Reliable performance, Eurovent certified
Reliable, quiet and energy efficient
Flexibility
Modular construction available in single or dual fan row for installation flexibility
Technical features
- Main applications
Horizontal and vertical industrial liquid coolers. - Refrigerants
Glycol - Capacity range (∆T=15 °K, Glycol 34%)
30 up to 1,400 kW - Design pressure
10 bar - Fin Spacing
Standard fin spacing 2.1, 3.2 and 4.2 mm - Fan-motors
High efficiency, low power consumption AC/EC motors - Fan diameters
ø 800, 910 and 950 mm - Certification
All Giant F models are “Eurovent Certify All” certified
- Refrigerants
- Glycol
- Capacity Range (∆T=15 °K, Glycol 34%)
- 30 up to 1,400 kW
- Design pressure
- 10 bar
Finned Coil
- Copper tubing circuit design optimized according to liquid flow.
- High efficient fins-tube pattern boost the heat transfer performance.
- Fitted with aluminium turbofins. Different fin materials and spacing are available.
- The unique coil construction provides protection against vibration and thermal expansion, thanks to the patentedSafeTube System.
Casing
- Casing and framework are made of high quality galvanized steel, powdered coated RAL 9003 (white) to tailor the product for industrial enviroments.
- Modular design, available either in single or dual fan row.
Fan-Motors
- High efficiency, low power consumption AC/EC motors are suitable for multiple voltage and frequency power supply, protection class IP 54 according to DIN 40050.
- Integrated thermo contacts provide reliable protection against thermal overload.
- Three fan diameters (800, 910 and 950 mm) optimized for different noise levels.
Options
- Aluplus fins (AP): Al-Mg alloy coated fins with a special paint treatment to give strong protection and resistance to corrosion
- Cu fins
- Vibration dampers (VD)
- Whisperer (WH)
- Mounting feet for horizontal installation
- Spray water kit (KW)
- Electrical accessories
- Isolator switch (IS)
- Basic switchboard, with fuse protection (ESB)
- Switchboard with automatic switch for each fan (ECCB)
- Switchboard with master controller regulation (ECCB+MC)
Packing
- All units are shipped in a crate in vertical position as standard.
- Horizontal transport position on request.
Eurovent Certified
- The LUVE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations. LUVE participates in the ECP program for HE.
Check ongoing validity of certificate: www.eurovent-certification.com
