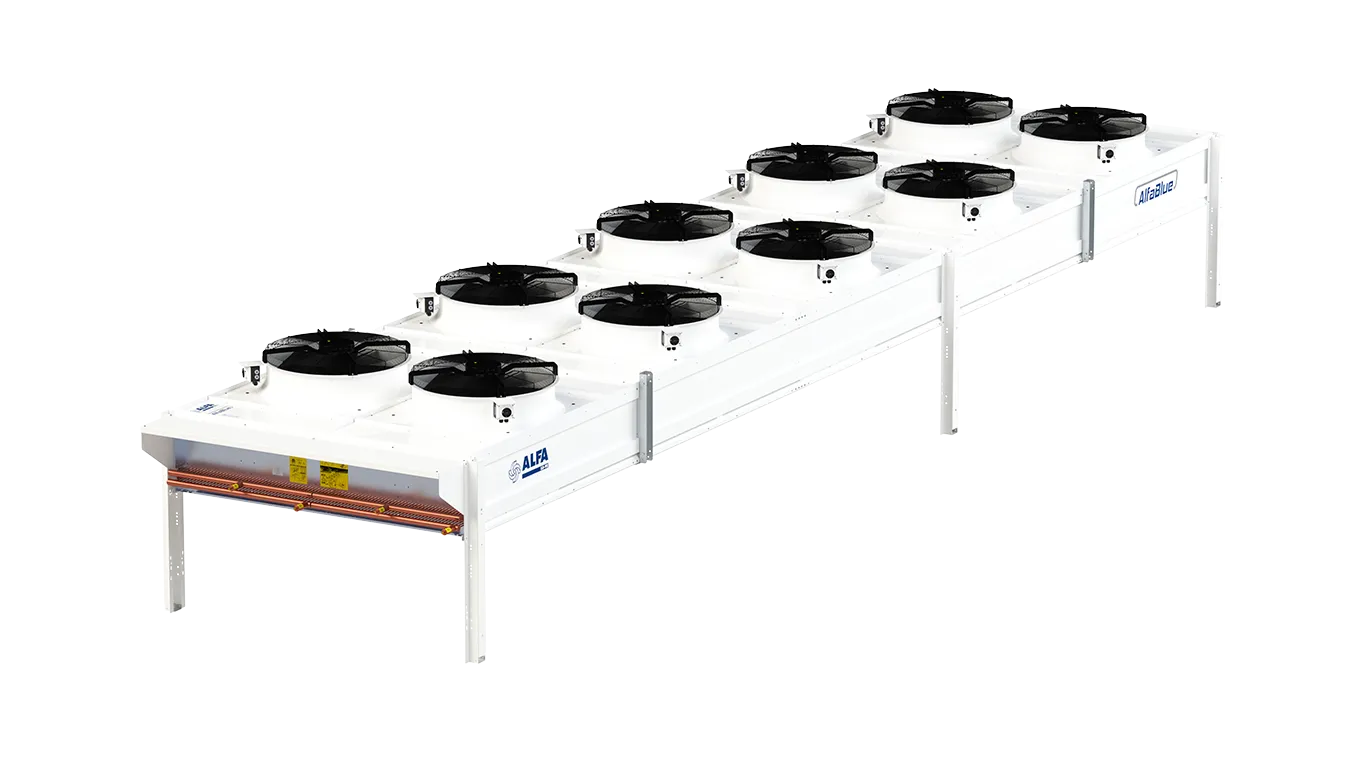

Alfa Blue BX
The AlfaBlue series is a wide range of heavy-duty air cooled gas coolers for air conditioning and refrigeration applications designed for the use of CO₂ as a single refrigerant. AlfaBlue gas coolers are available for both horizontal and vertical installation. Available both in single or dual fan row.
What profile fits you best?
Select your Application
Which sector/application are you interested in?
Select your application to discover tailored features and benefits
Refrigeration
Air Conditioning (HVAC)
Configure with Plair
The free collaborative tool to configure air heat exchangers.
The latest version of our selection software Plair is available online.
Technical features
- Main applications
The Alfa Blue BX series is a wide range of heavy-duty air cooled gas coolers for air conditioning and refrigeration applications designed for the use of CO2 as a single refrigerant - Refrigerant
CO2 - Design pressure
130 bar - Fan-motors
High efficiency AC or EC fan motors - Fan diameters
ø 800, 910, 950 and 1000 mm
- Refrigerant
- CO2
- Design pressure
- 130 bar
Casing
- Frame construction provides high rigidity for protection against vibration and thermal expansion.
- Casing and frame made of corrosion resistant pre-galvanized steel, epoxy coated white RAL 9003 on both sides.
- Separated fan sections.
Fan-Motors
- High efficiency AC or EC fan motors, available in different fan diameters (800, 910, 950 & 1000 mm) and noise levels, power supply 400/50/3.
- Motors with external rotor, protection class IP54 according to DIN 40050.
- Integrated thermo contacts provide reliable protection against thermal overload.
Options
- Coil protection
- Aluplus (AP): magnesium-aluminium alloy coated with a special paint treatment to give strong protection and resistance to corrosion.
- Cu fins.
- Spray water kit (KW).
- Vibration dampers (VD).
- EC fan motors (EC).
- Whisperer (WH).
- Mounting feet for horizontal installation 1,000 mm (F10).
- Electrical accessories:
- Isolator switch (SW).
- Motors wired to the junction box (CB).
- Basic switchboard, with fuse protection (ESB).
- Switchboard with one automatic switch for each fan (ECCB).
Design pressure
- 130 bar.
- Each heat exchanger is leak tested with dry air and finally supplied with a nitrogen pre-charge.
Coil
- The coil design based on small diameter tubes and turbo aluminium fins provides excellent heat transfer at minimal refrigerant charge.
- Circuiting design is fully optimized to the thermodynamic properties of CO2.
- Available fin spacings: 2,1 and 1,8 mm (only for BX*95).
- 2,5 mm available as optional.
Certifications
- The LU-VE quality system is in accordance with ISO 9001. All products are manufactured according to PED regulations.
